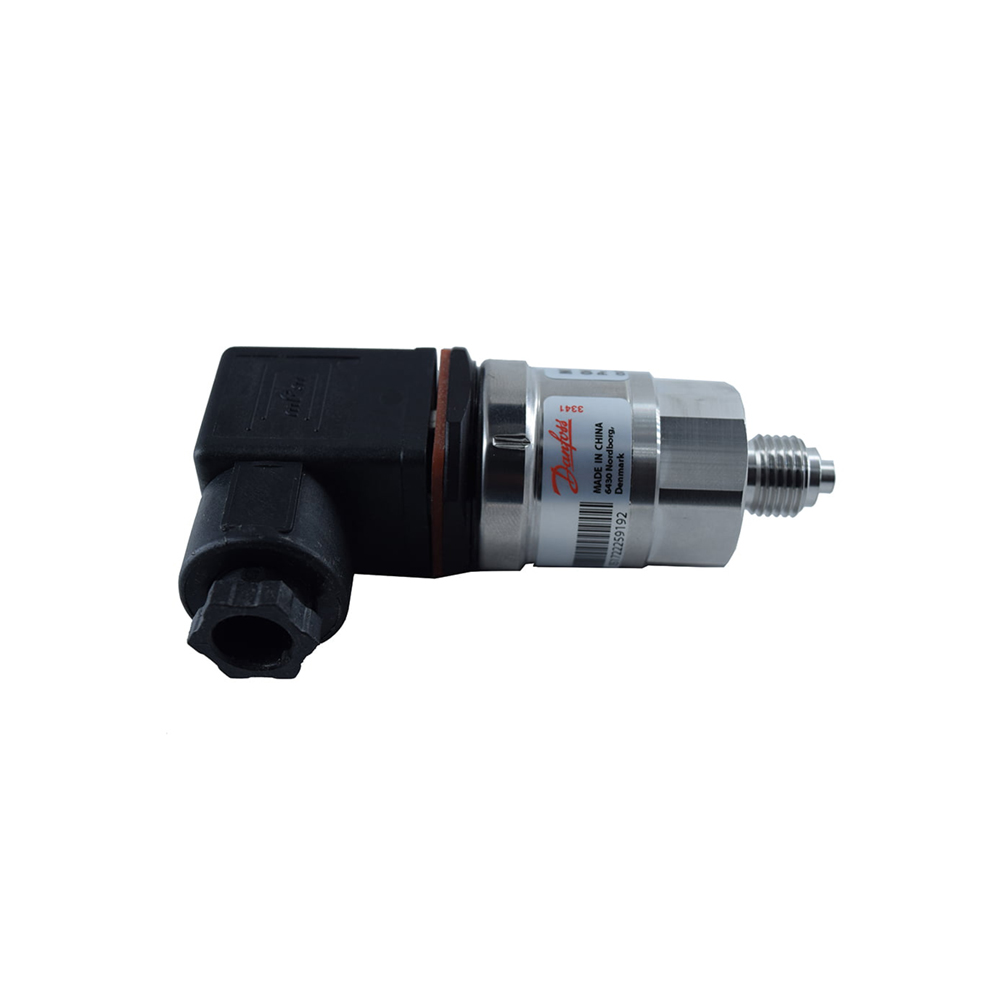

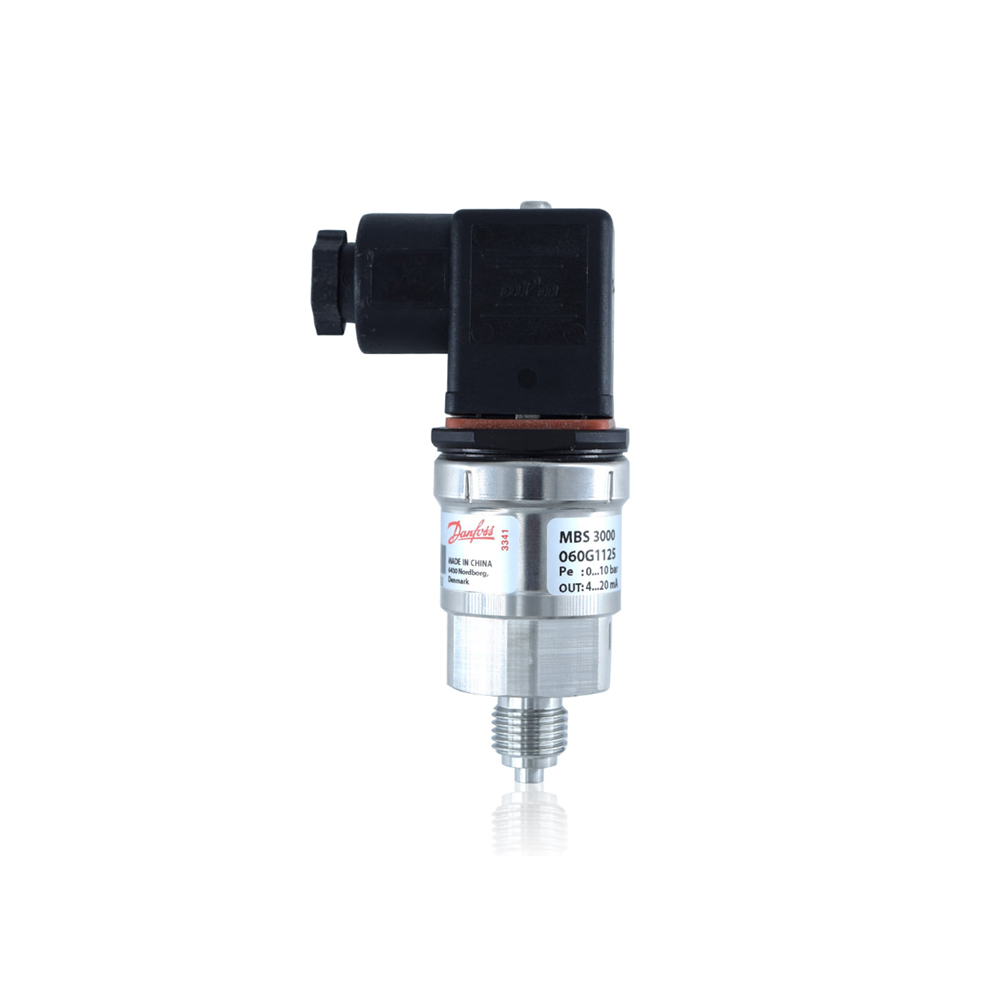

Pressure Transmitter for Industrial Applications Danfoss MBS 3000
₹4,400.00 – ₹9,600.00

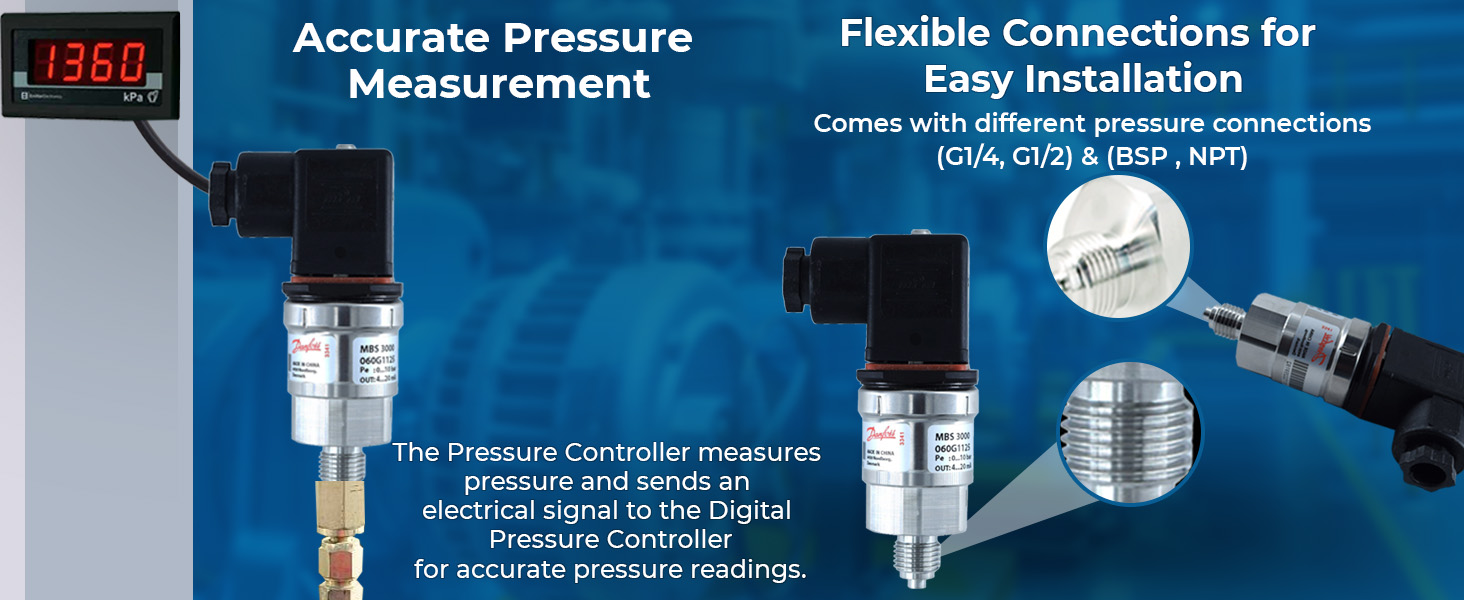

Pressure Transmitter for Industrial Applications is a device that measures pressure and sends out signals based on the pressure level. This Industrial sensor is intended to provide trusted pressure measurement in severe settings and is appropriate for use in hydraulic systems, air compressors, and water pumps. It delivers reliable performance across a wide pressure range from 0 to 600 Bar. This Pressure Transmitter converts pressure readings into electrical signals and offers various electrical connection options, providing flexibility for different installation needs. Engineered for durability and adaptability, This Pressure Transmitter ensures trusted pressure monitoring in a wide array of industrial applications.
Applications: Industrial Machinery, Water Pumps, HVAC Systems, Air Compressors, Textile Industry.
Features of Pressure Transmitter for Industrial Applications Danfoss MBS 3000 :
-
Engineered to perform reliably in harsh industrial and hydraulic environments
-
Resistant to cavitation, fluid hammer, and pressure spikes
-

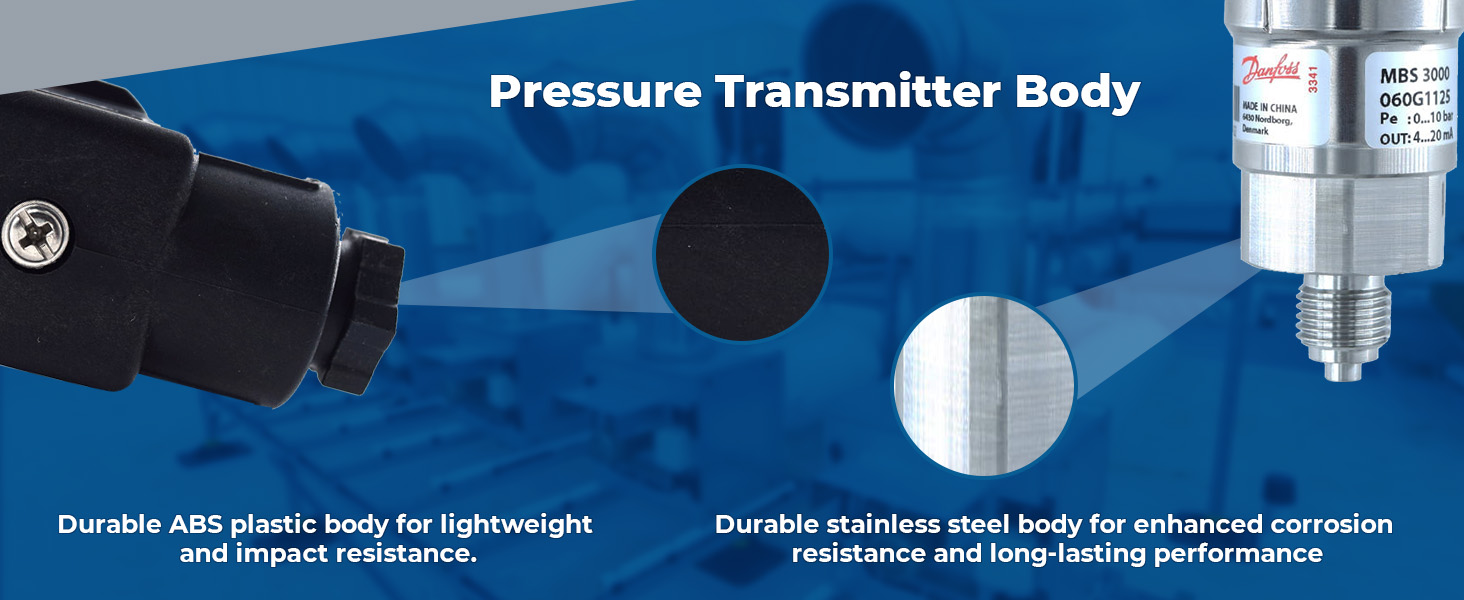

Constructed with acid-resistant stainless steel for enhanced durability
-

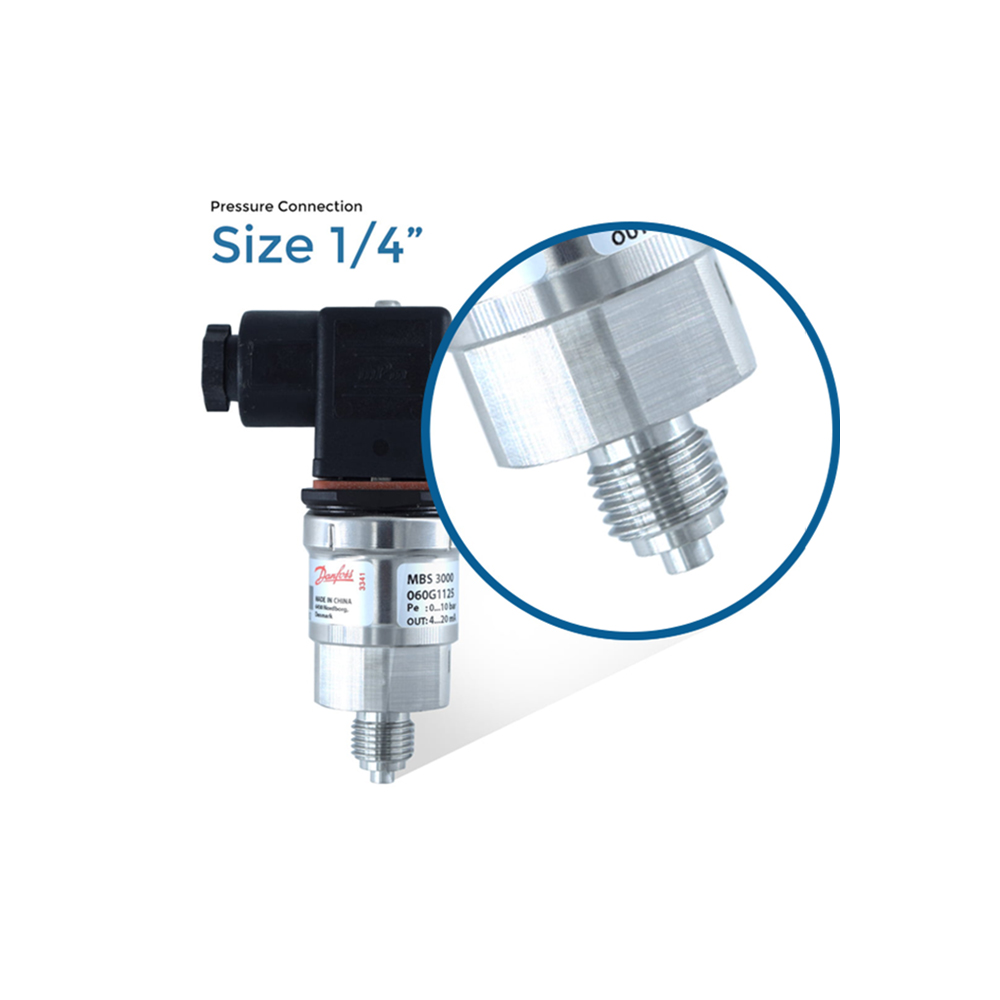

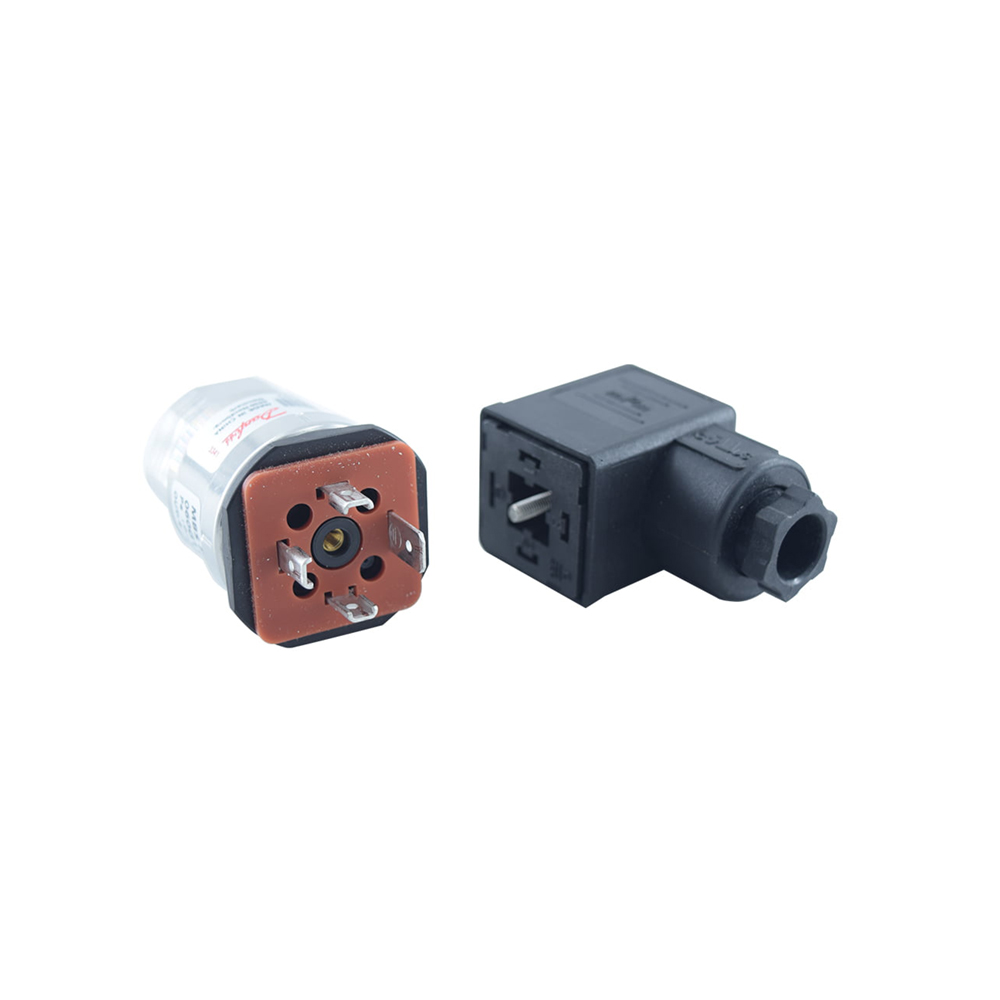

Offers a wide selection of pressure ranges and electrical connection types
-
Temperature-compensated and laser-calibrated for high measurement accuracy
-
This Pressure Sensor Suitable for use in Zone 2 explosive atmospheres
-
Supports standard output signals including 4–20 mA, 0–5 V, 1–5 V, 1–6 V, 0–10 V, and 1–10 V
Additional information
| Manufacturer | Danfoss |
|---|---|
| Model No | MBS-3000 |
| Measuring Parameters | Pressure |
| Pressure Range | 0 to 10 Bar, 0 to 1 Bar, 0 to 100 Bar, 0 to 16 Bar, 0 to 2.5 Bar, 0 to 25 Bar, 0 to 250 Bar, 0 to 40 Bar, 0 to 400 Bar, 0 to 6 Bar, 0 to 60 Bar, 0 to 600 Bar |
| Range | 0 – 1 bar to 0 – 600 bar (Contact store for other Ranges) |
| Accuracy | ±0.5% FS |
| Response Time | < 4 ms |
| Operating Temperature | -40°C to +85°C |
| Output | 0 – 10V, 4 – 20 mA |
| Overload Capacity | 6 X FS (max. 1500 bar) |
| Burst Pressure | 6 X FS (max. 2000 bar) |
| Enclosure | IP65 |
