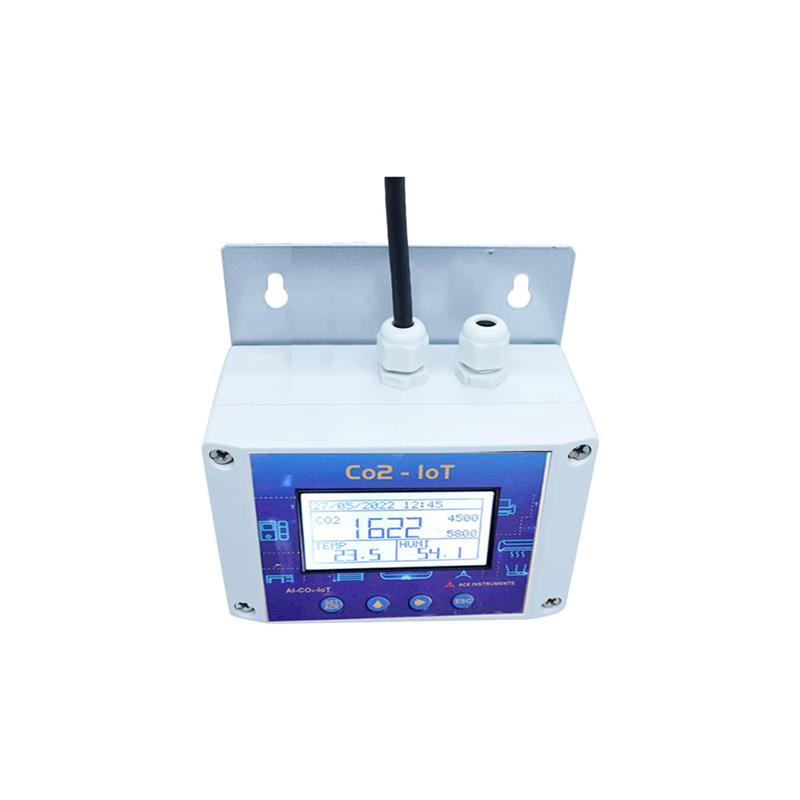

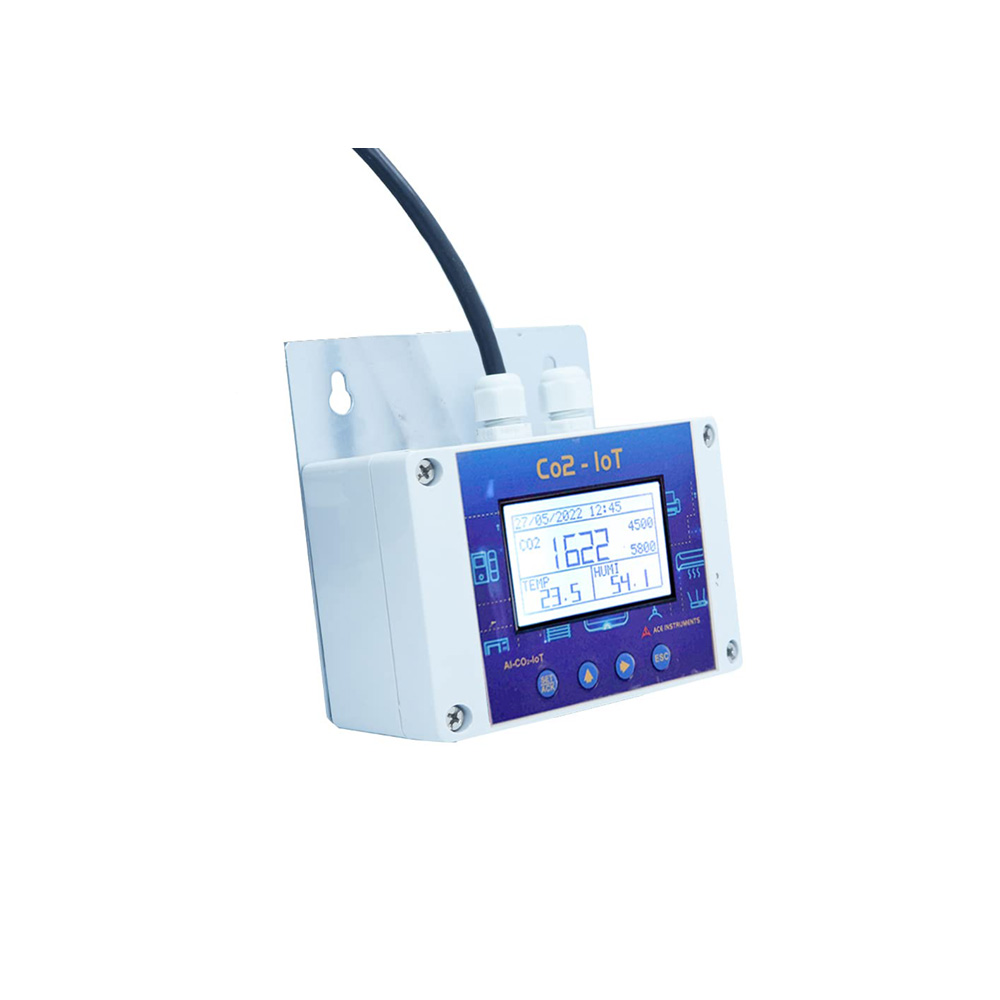

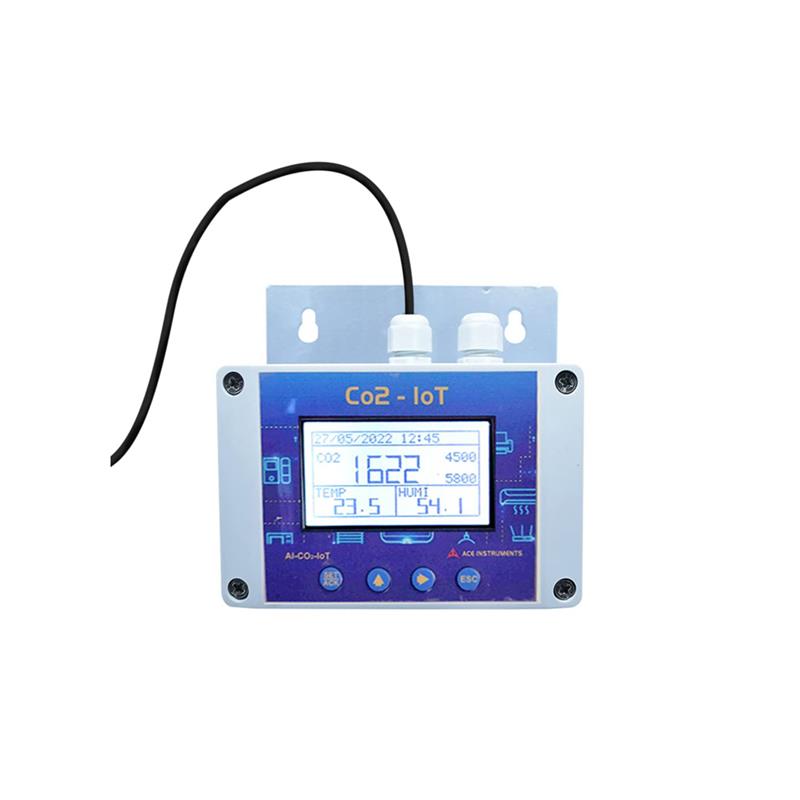

Wi-Fi Based Carbon Dioxide Monitor Ace AI-CO2-IoT
₹27,800.00 – ₹39,800.00

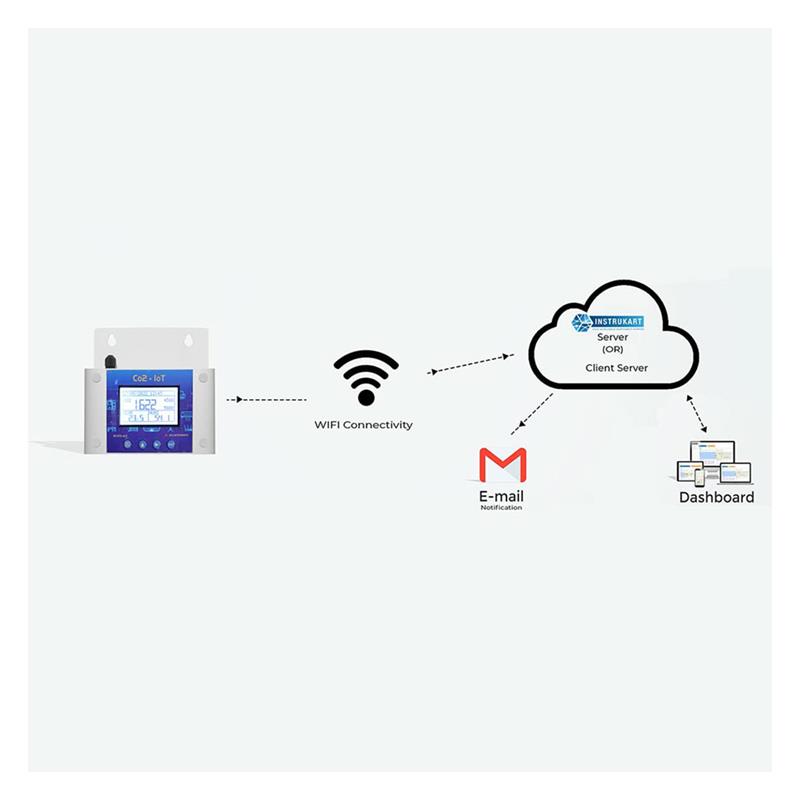

Wi-Fi Based Carbon Dioxide Monitor Ace AI-CO2-IoT is a smart, Wi-Fi enabled Indoor Air Quality Monitor designed to measure carbon dioxide (CO₂), temperature, and humidity using a high-accuracy :internal sensor. Air Quality Monitor device allows users to receive remote alerts via email when pre-set thresholds are exceeded, ensuring timely action. Users can monitor, download, and analyze real-time data complete with date, time stamps, and graphical or tabular views.

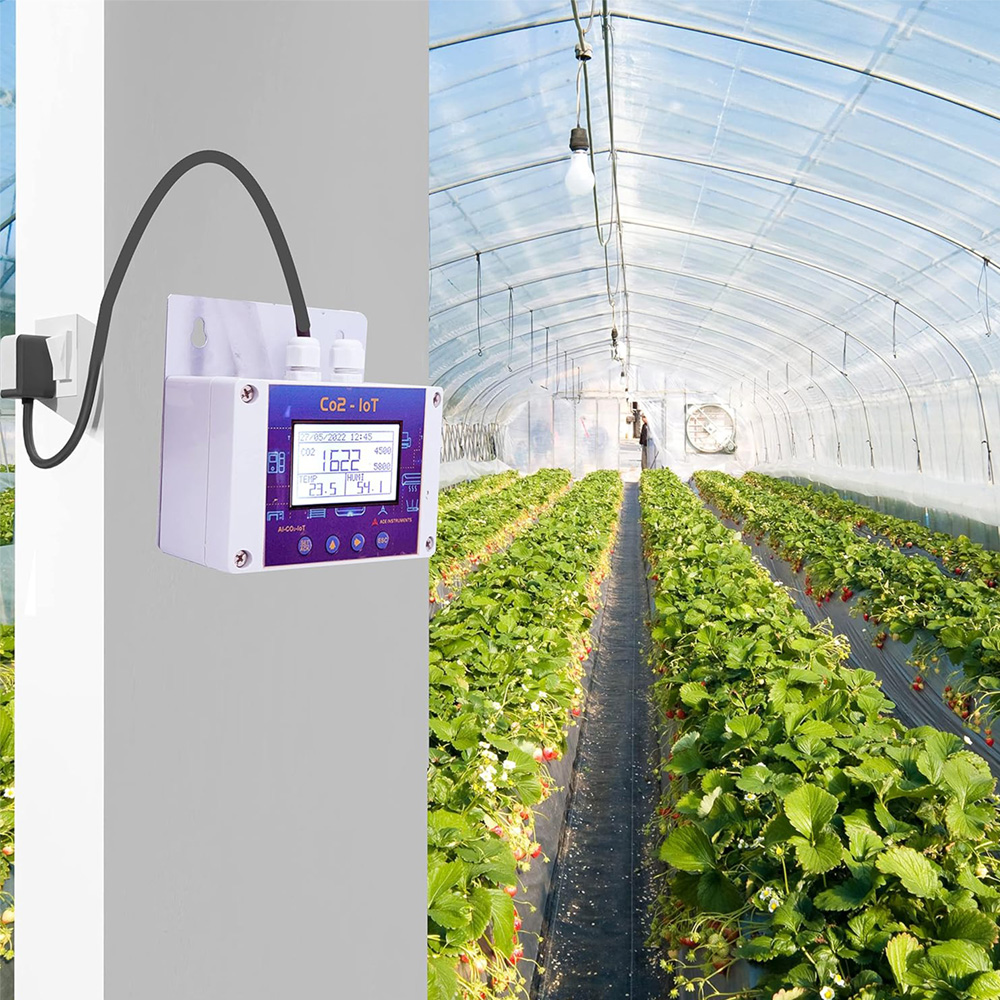

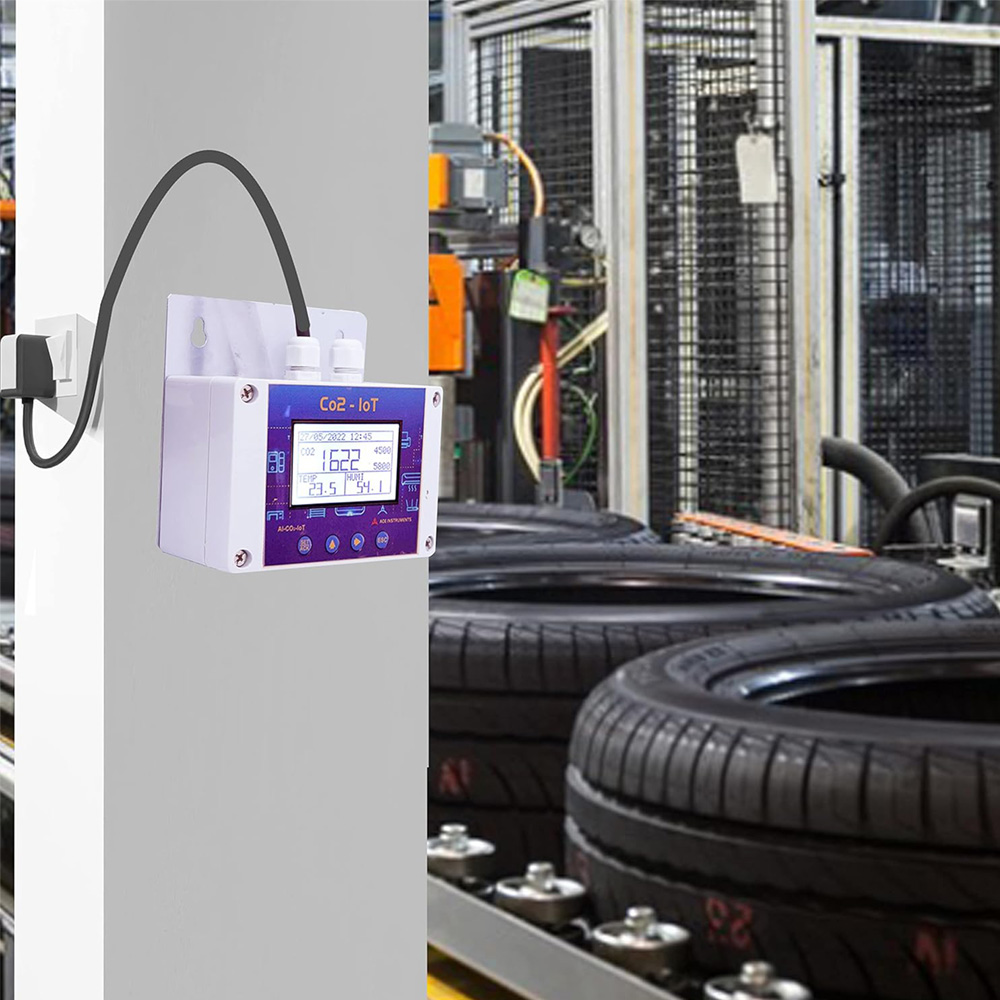

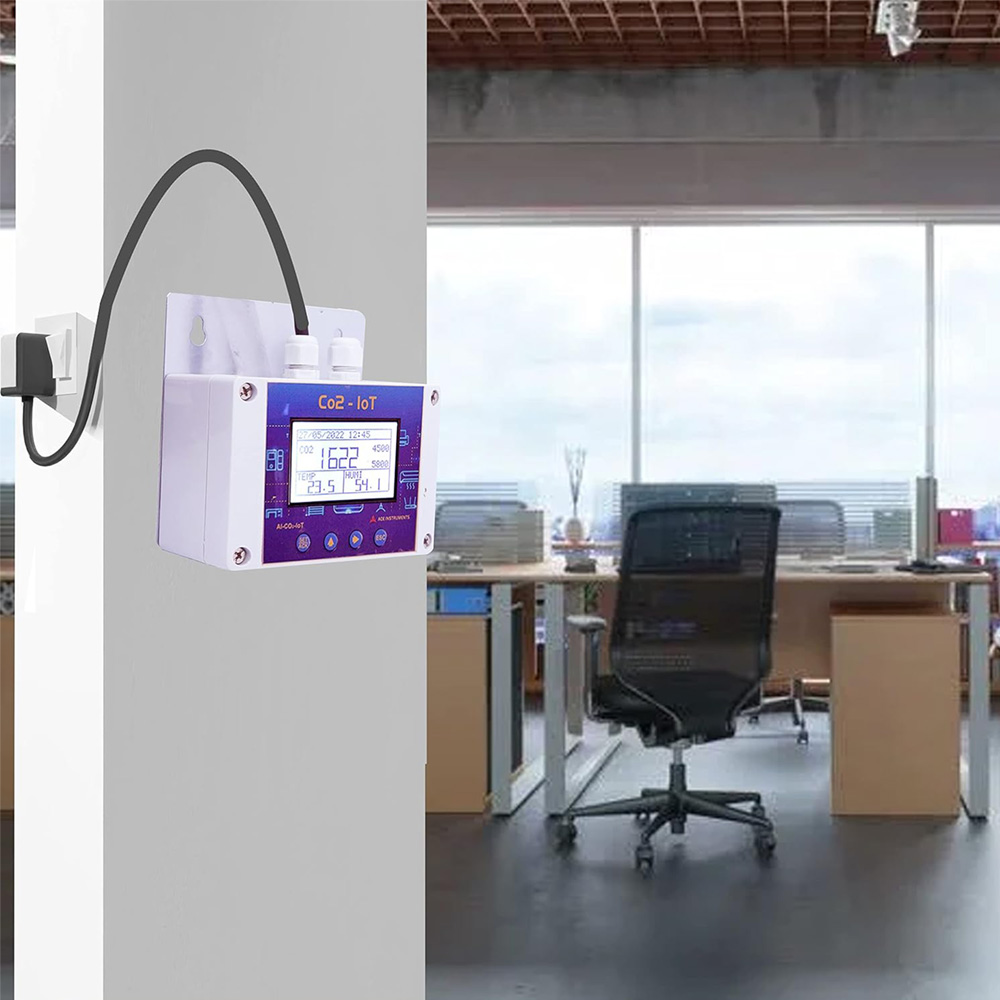

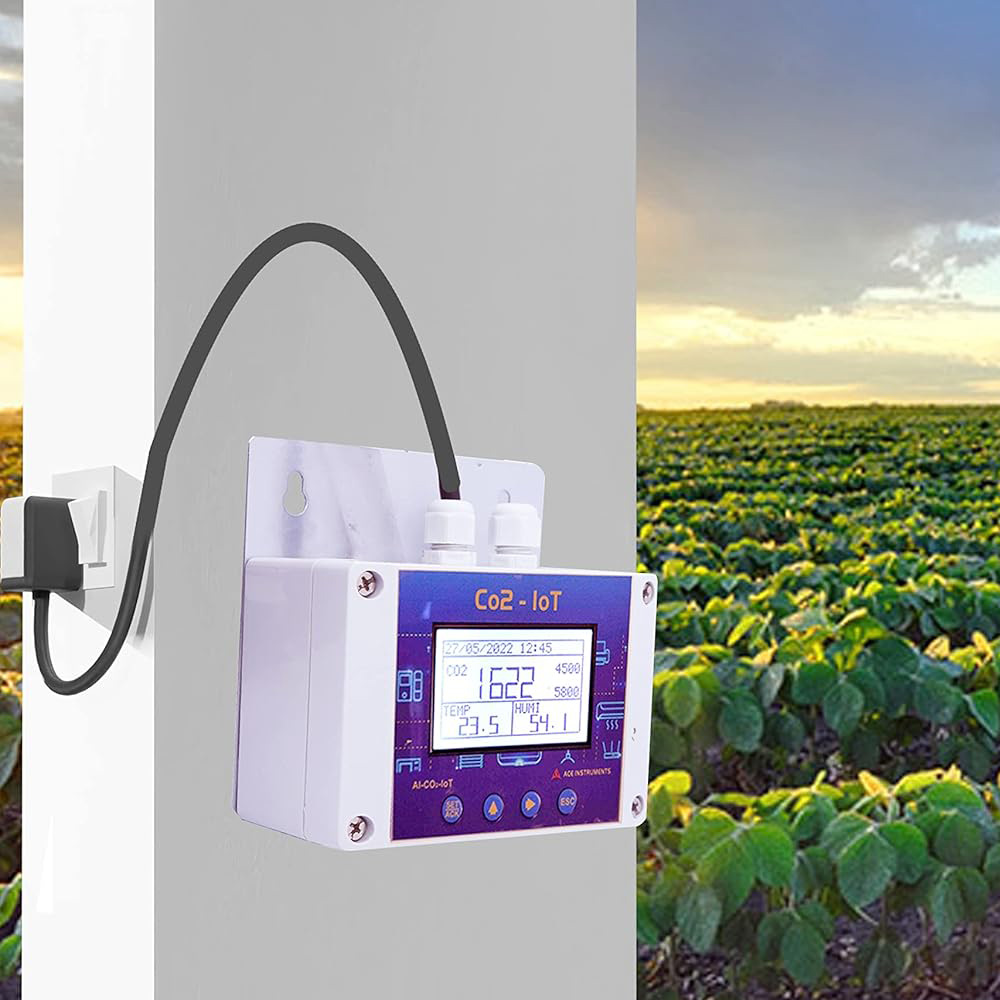

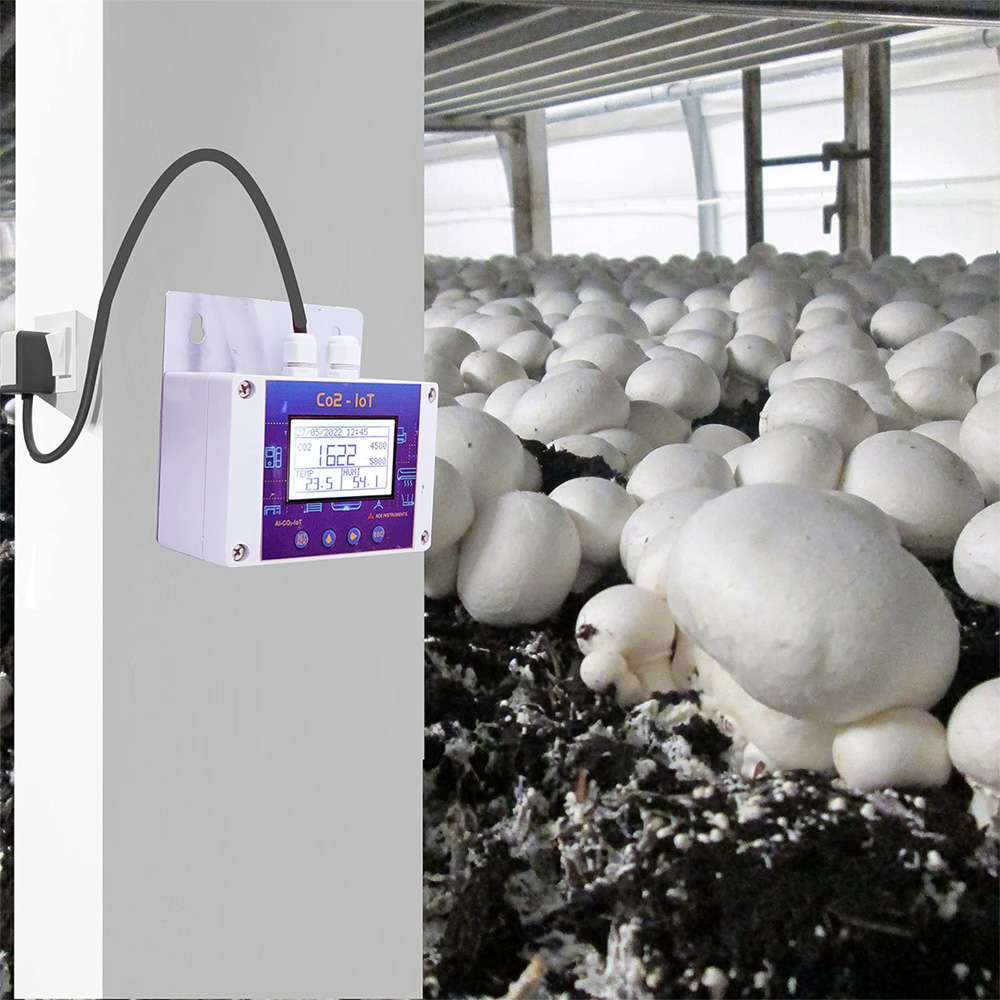

Applications: Greenhouse, Organic Farming, Mushroom Farming, Rubber Industry, Paper Pulp, IT Server Rooms, Data centers, Cold stockpiles, Cold chains, Food, Pharmaceuticals, Bio-restorative, Logistics, Warehouses, Airports, Hospitals, Machinery Rooms, Ship-Building, Poultry etc.
Features of Wi-Fi Based Carbon Dioxide Monitor Ace AI-CO2-IoT :
- Real-time monitoring available through a centralized dashboard, viewable on PCs, tablets, and smartphones.
- Supports both single and multiple device data views in graphical or tabular formats.
- Offers both standard and customizable dashboard layouts to match specific user preferences.
- Wi-Fi Based Carbon Dioxide Monitor Equipped with a large, high-contrast backlit screen for easy viewing even while on the move.
SMS Alert :
- SMS on CO2, Temperature and Humidity violation, exceeding set limits (Low or High)
- Note: since we use third-party services for SMS Pack it will be limited to India Mobile numbers only
Email Notifications :
- Triggers email alerts whenever a monitored value falls outside the defined safety range.
- Allows up to 10 email addresses to be configured for receiving notifications.
Additional information
| Weight | 1.5 kg |
|---|---|
| Manufacturer | Ace Instruments |
| Model No | AI-CO2-IoT-1-Wifi (12 Months Hosting), AI-CO2-IoT-2-Wifi (Life Time Hosting), AI-CO2-IoT-3-Wifi (Client Server scope) |
| Measuring Parameters | CO2, Temperature, Humidity |
| CO2 Accuracy | ±3% on Full Scale |
| CO2 Resolution | 1 PPM |
| CO2 Measuring Range | 0 to 5000 ppm |
| Temperature Range | 0 to 50°C |
| Temperature Accuracy | ± 0.5 °C |
| Temperature Resolution | 0.1 ℃ |
| Humidity Range | 0 to 100% RH |
| Humidity Accuracy | ±2%RH |
| Humidity Resolution | 0.1% RH |
| Operating Temperature | Safe operating temperature of instrument is 0 to 50°C. |
| Display | 128 X 64 Dot Matrix Graphical Large LCD Display with White Backlight |
| Buzzer | Standard In-Built Buzzer for Alarm. External Buzzer Option also available (Please contact store) |
| Sensor Type | NDIR Sensor for CO2 Measurement, Polymer capacitive sensing for Temperature & Humidity |
| Power Supply | 12 VDC Input with minimum of 2 Amp current rating. Adaptor provided alongwith. |
| Enclosure | Wall mounting type ABS Plastic Enclosure with Wall Bracket ( IP 65 splash proof ). |
| Communication | (Internet Connectivity and Wifi Configuration) to your scope., Wifi Based Module |
| Cloud Space Ownership | Option 1: Hosing at Instrukart Server (min 1 Year Subscription), Option 2: Hosting at Customer/End User Server (Please Contact Store) |
| Web Interface Demo | Please consult Store for web link and credentials |
| Acknowledgement Key | user to acknowledge the alarm manually |
| Warranty | 1 Year Manufacturer Warranty |
| Calibration | Will be provided at no extra cost and valid for 12 months, traceable to national standards. (NABL) |
| Dimensions | 120 X 80 X 69 mm (H X W X D) |
