PDF Reusable Temperature Data Logger Elitech RC-5+TE
₹5,052.00 – ₹3,102,000.00

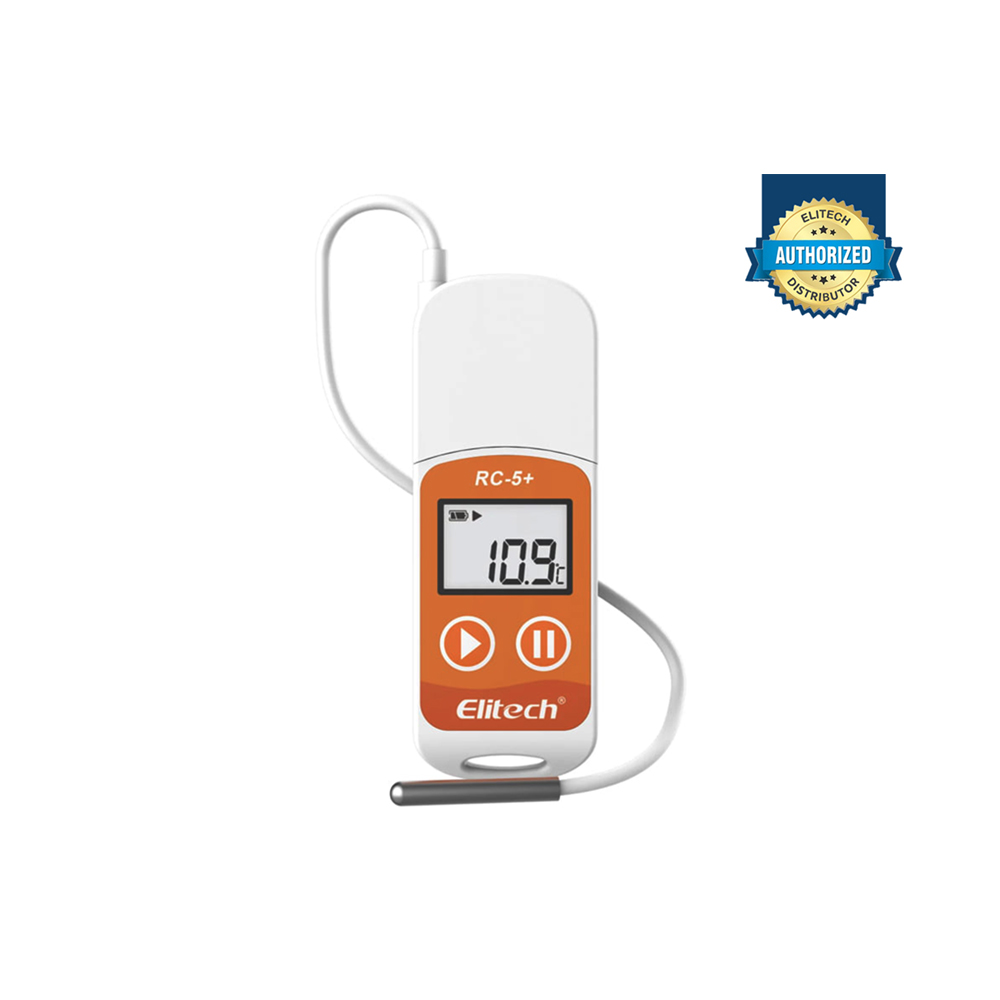

PDF Reusable Temperature Data Logger Elitech RC-5+ TE is a portable, USB plug-and-play device designed for Cold Chain management. It features Real-Time Temperature monitoring with an external sensor, ideal for tracking external conditions without impacting sensitive items. This Reusable Data Logger offers two alarm types (single and cumulative), five alarm settings, and a waterproof IP 67 rating. Its LCD display allows users to view real-time readings, while data is stored internally and accessed easily via USB.
Applications: Transportation of Food, Medicine, Warehouses, Logistics, Cold-chain, Refrigerated containers, Refrigerated trucks, Cold storage, Laboratory, etc.
Features of PDF Reusable Temperature Data Logger Elitech RC-5+ TE:
-

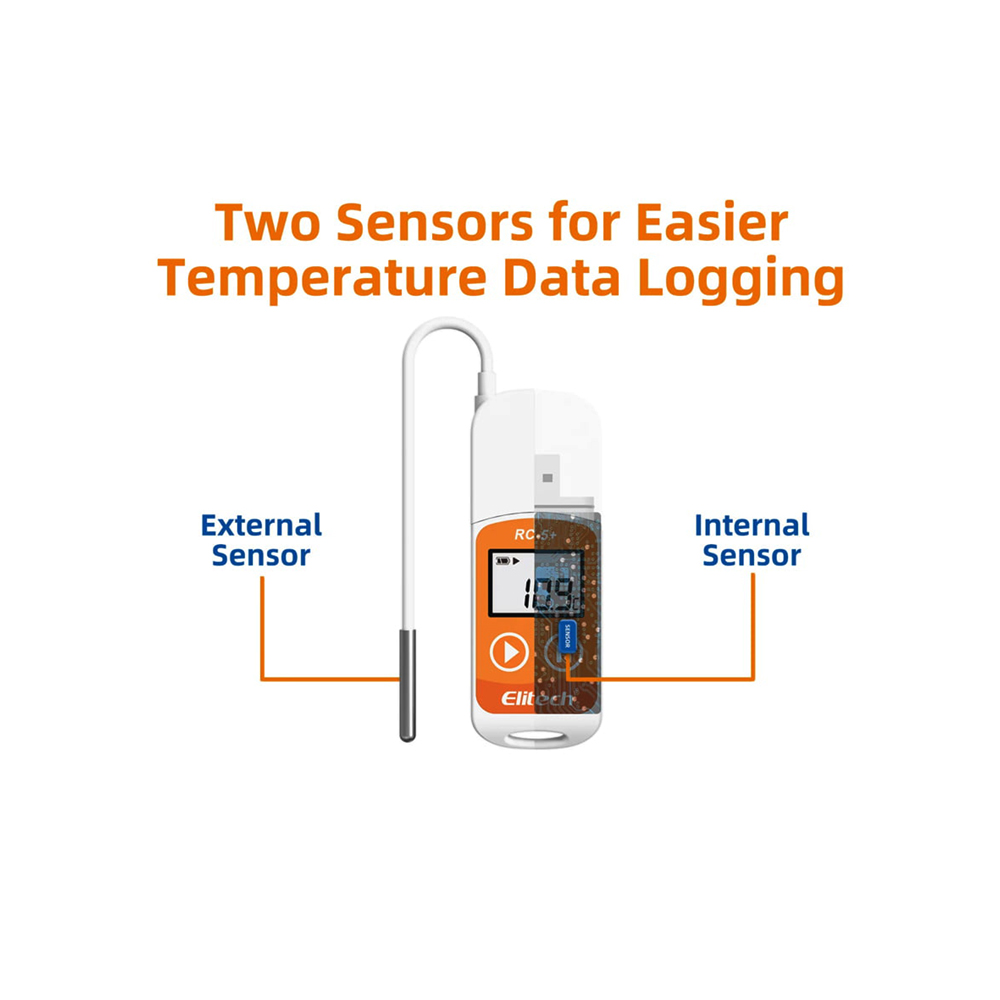

Includes both internal and 39-inch external sensors, capable of measuring Temperatures from -40°C to +85°C (-40°F to 185°F).
-
Waterproof design with an IP67 protection rating.
-
This Portable Multiuse Temperature features 5 configurable alarm settings for Temperature monitoring.
-

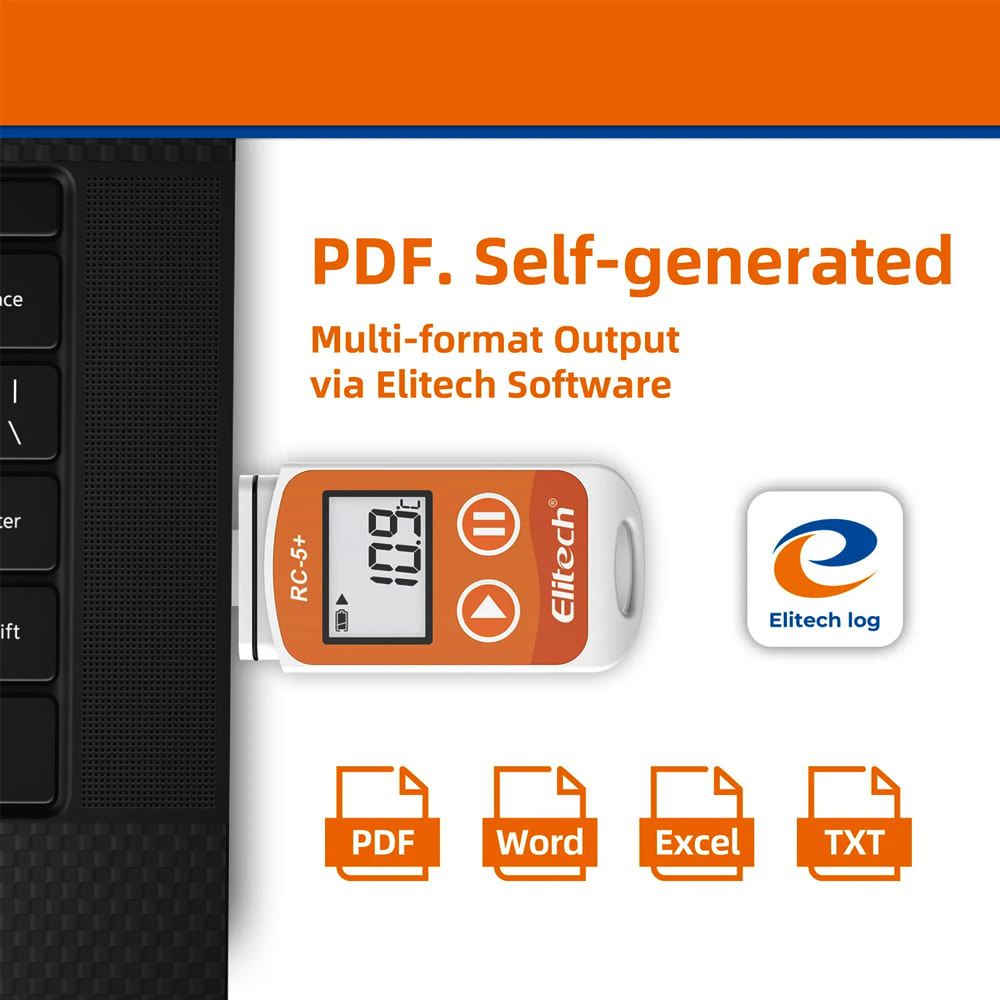

Data can be downloaded in Excel or PDF formats for easy reporting.
-

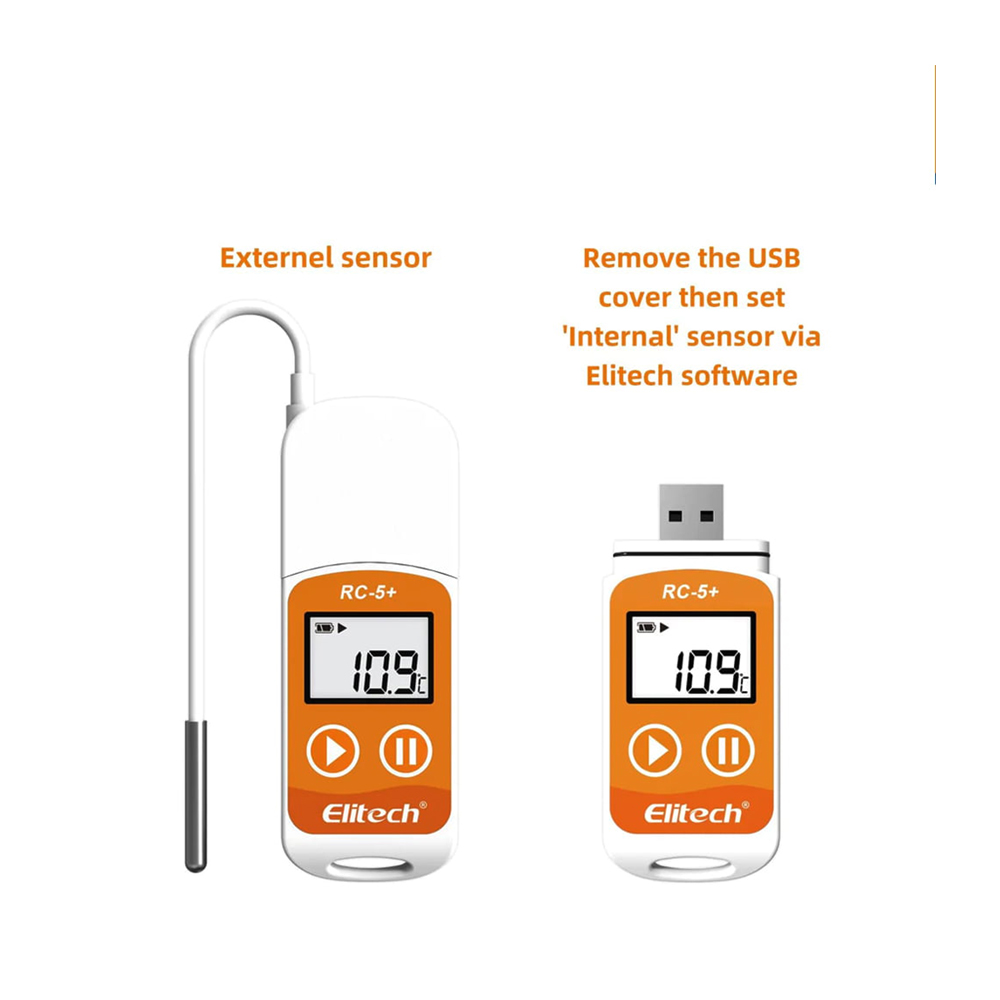

To use the external sensor, set it to “External” in the software and ensure the external sensor cap is in place before recording.
-
Plug the logger into a computer or Android device (with OTG support) to view the PDF report; restart the device by holding the left button.
Additional information

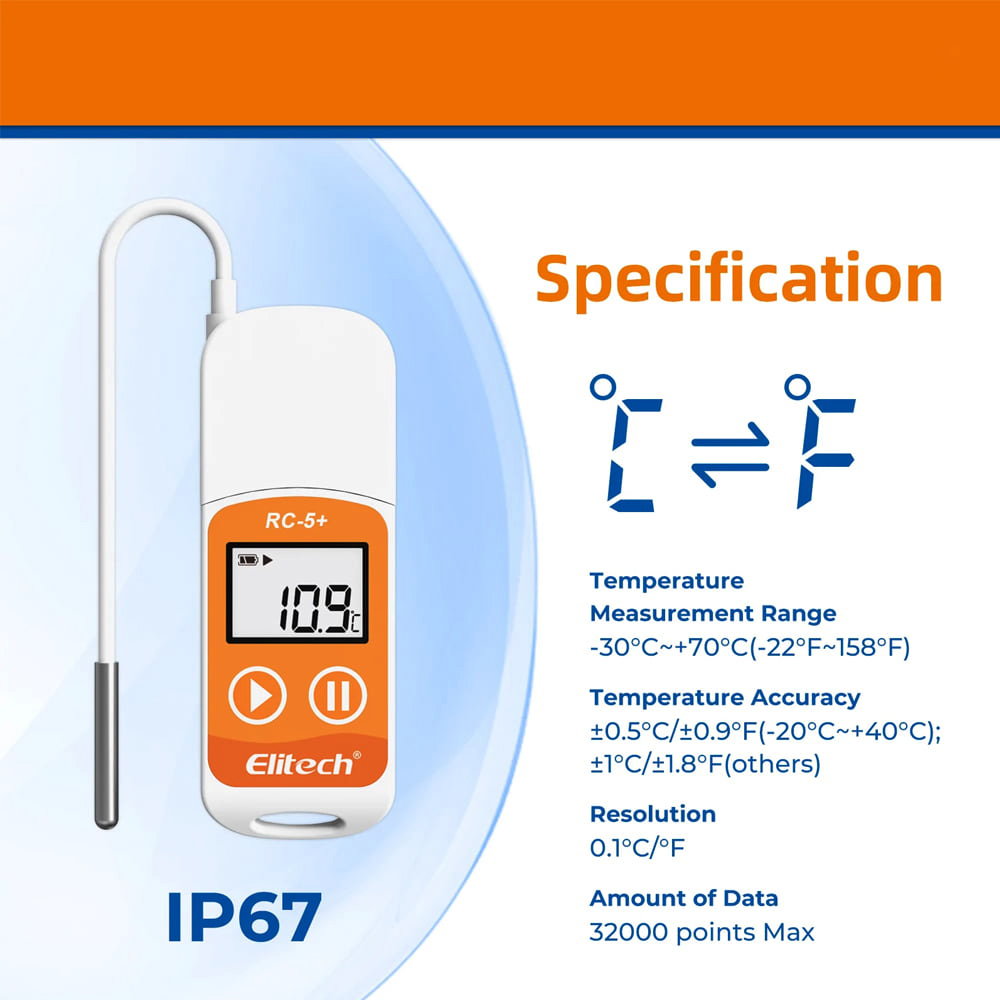

| Manufacturer | Elitech |
|---|---|
| Model No | RC5+ TE |
| Measuring Parameters | Temperature |
| Temperature Measuring Range | External probe: -40°C to 185°C(-40°F ~+85°F), Internal sensor: -22°C~158°C(-30°F ~+70°F) |
| Temperature Accuracy | ±0.5℃/±0.9℉(-20℃ ~ 40℃) ±1℃/±1.8℉(others) |
| Temperature Resolution | 0.1℃/℉ |
| Data Storage Capacity | 32,000 readings |
| Logging Interval | 10sec – 24hr |
| Data Interface | USB |
| Report Generation | Auto generated PDF report Software: PDF/XLS/TXT |
| Protection grade | IP 67 |
| Certifications | EN12830, CE, RoHS |
| Supply Scope | 1 pack of data logger, External Sensor, Calibration Certificate, User manual |
| Dimensions | 80 x 33.5 x 14 mm |
| Weight | 20g |
