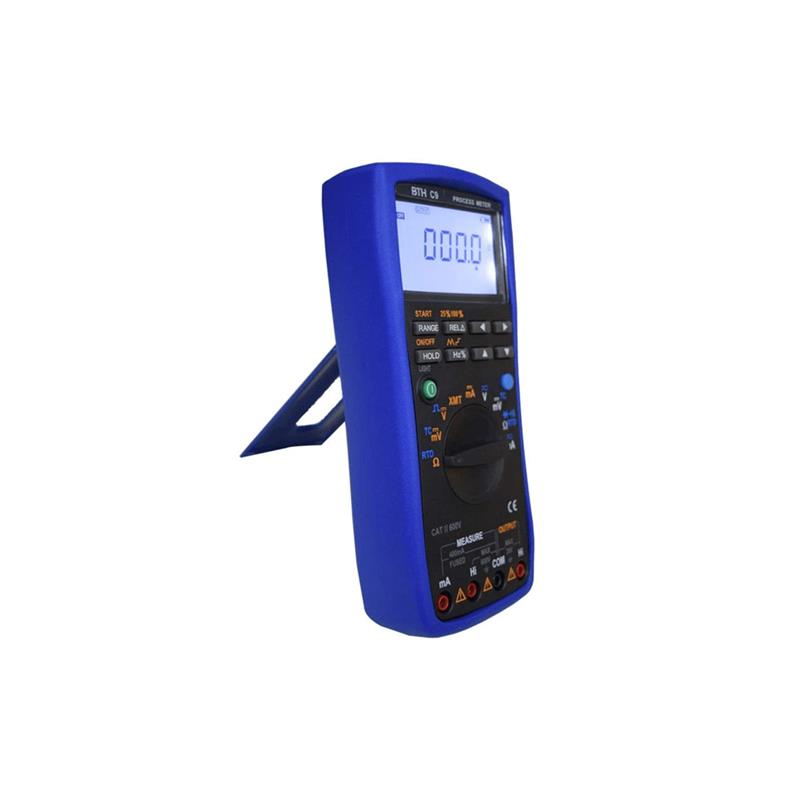

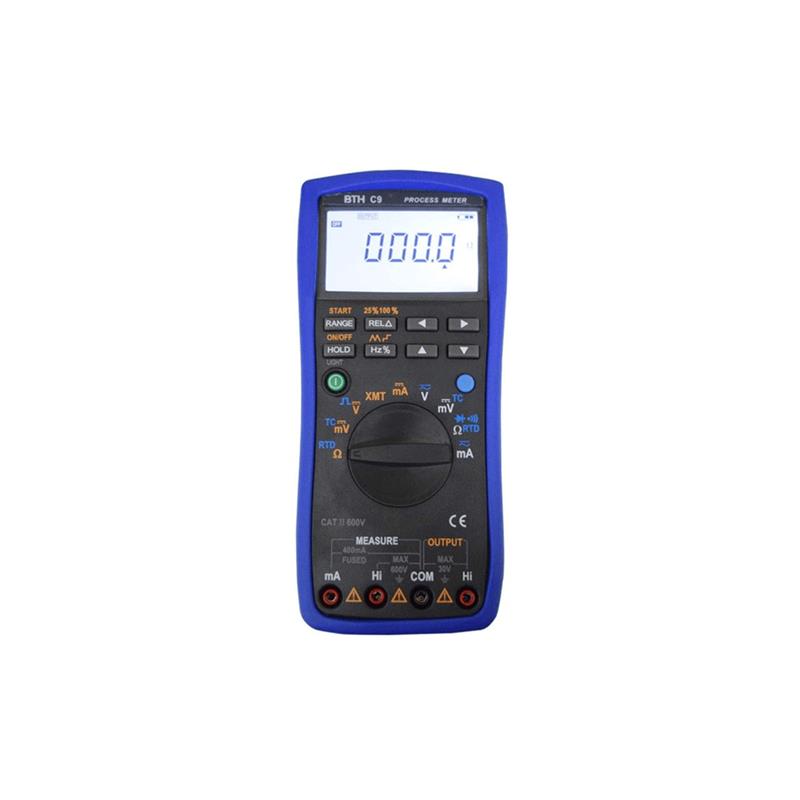

Multifunction Process Calibrator BTH – C9
₹35,521.00
Multifunction Process Calibrator BTH C9 is a highly versatile and reliable tool designed to calibrate instruments accepting mV, mA, and resistance inputs. With both sourcing and measuring functions, it delivers exceptional accuracy and stability for lab and field use. This Process Control Calibrator ensures consistent results, supporting efficient operations and quality assurance. A dependable Digital Universal Calibrator for those needing Accuracy and stable process control across a range of devices.
Applications: Process Industries, Power Plants, Manufacturing Units , R&D and QA Labs, Utilities and HVAC.

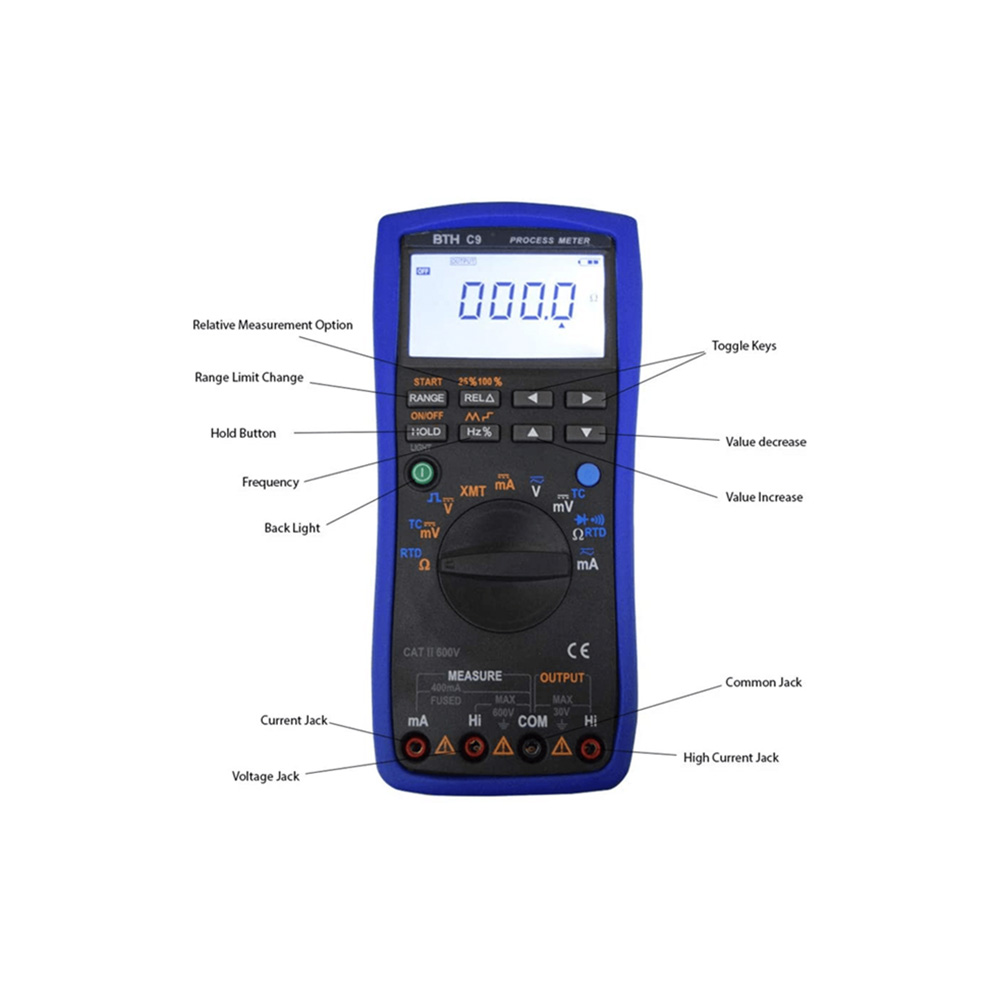

Features Of Multifunction Process Calibrator :
- It directly outputs TC, mA, and RTD signals for fast and accurate simulation.
- This calibrator offers both source and measure functions, allowing you to generate signals and verify readings with ease.
- It comes with a backlit LCD screen, ensuring clear visibility even in low-light conditions.
- This device enables direct calibration, reducing setup time and improving workflow efficiency.
- It features auto power on/off for added user convenience and battery savings.
- Where reliability and accuracy are critical, it delivers consistent performance for demanding calibration tasks.
Additional information
| Manufacturer | BTH |
|---|---|
| Model No | C9 |
| Measuring Parameters | Current, Resistance, Voltage |
| DC Voltage Measurement | 4.000 V, 40.00 V, 400.0 V |
| Resolution_1 | 0.001V, 0.01 V, 0.1V |
| Accuracy | 0.2% + 4 |
| DC mV Measurement | 40.00 mV, 400.0 mV |
| Resolution_2 | 0.01 mV, 0.1 mV |
| Accuracy 2 | 0.5% + 6, 0.2% + 4 |
| AC Voltage Measurement | 400.0 mV, 4.000 V, 40.00 V, 400.0 V |
| Resolution 3 | 0.1mV, 0.001V, 0.01V, 0.1V |
| Accuracy 3 | 1.0% + 4, 0.5% + 4, 0.5% + 4, 0.5% + 4 |
| DC Current Measurement | 40.00 mA, 400.0 mA |
| Resolution 5 | 0.01 mA, 0.1 mA |
| Accuracy 4 | 0.2% + 4 |
| AC Current Measurement | 40.00 mA, 400.0 mA |
| Resolution 6 | 0.01 mA, 0.1 mA |
| Accuracy 5 | 0.5% + 4 |
| Resistance Measurement | 400.0 Ohms, 4.000 KOhms, 40.00 KOhms, 400.0 KOhms, 4.000 MOhms, 40.00 MOhms |
| RTD Measurement | Pt100, Cu50 |
| TC Measurement | B 400 to 1800 C., E -200 to 500 C., J -200 to 700 C., K -200 to 950 C., N -200 to 1000 C., R -40 to 1760 C., S -20 to 1760 C., T -200 to 400 C. |
| Diode Test & Continuity Test | Diode Test Indication – Displays voltage drop across device, Open Circuit voltage: <0.4 V; continuous Audible tone for test Resistance<50 Ohms Over Voltage protection: 600 V Open circuit voltage: <0.45 Short Circuit current: 130 microA typical Overload protection: 600V peak |
| Frequency Count | 50.00 Hz, 500.0 Hz, 5.000 KHz, 50.00 KHz,100.0 Hz |
| Power Supply | 6 V Batteries (4 Nos. of 1.5 V) Alkaline AAA Batteries |
| Calibration | Provided alongwith and valid for 1 year, traceable to National Standards. |
| Warranty | 1 Year Manufacturing Warranty |
| Supply Scope | Instrument -1no, Instruction Manual -1no, Protective cover, Silicon Leads,Carrying Pouch |
| Dimensions | 205 X 95 X 42 mm |
