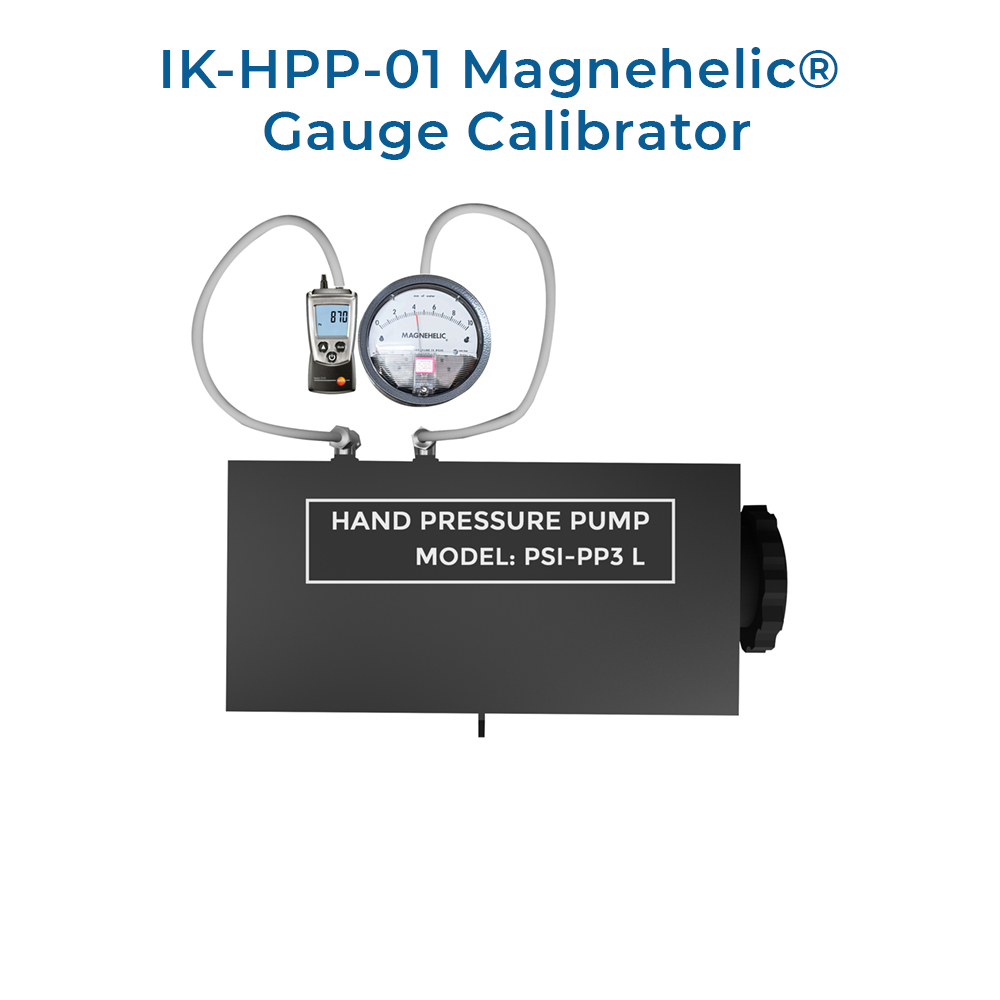

Magnehelic Pressure Gauge Calibrator AL-HPP-01
₹21,450.00 – ₹30,492.00
The Magnehelic Pressure Gauge Calibrator AL-HPP-01 is an excellent tool for HVAC engineers and laboratories requiring a high-precision Magnehelic Calibrator for Differential Pressure Gauge Calibration. This Portable Magnehelic Pressure Gauge Calibrator is designed for accurate calibration of 120mm micro pressure transmitters and other low-pressure instruments. Designed for low-pressure use, this Magnehelic Gauge Calibrator with Static Pump ensures high accuracy in lab and field settings.
Applications: HVAC, Laboratory, Room Pressure Monitoring, Filter Monitoring, etc.
Magnehelic Pressure Gauge Calibrator
-
This Magnehelic Pressure Gauge Calibrator supports 120mm micro pressure transmitters and differential pressure gauge calibration.
-

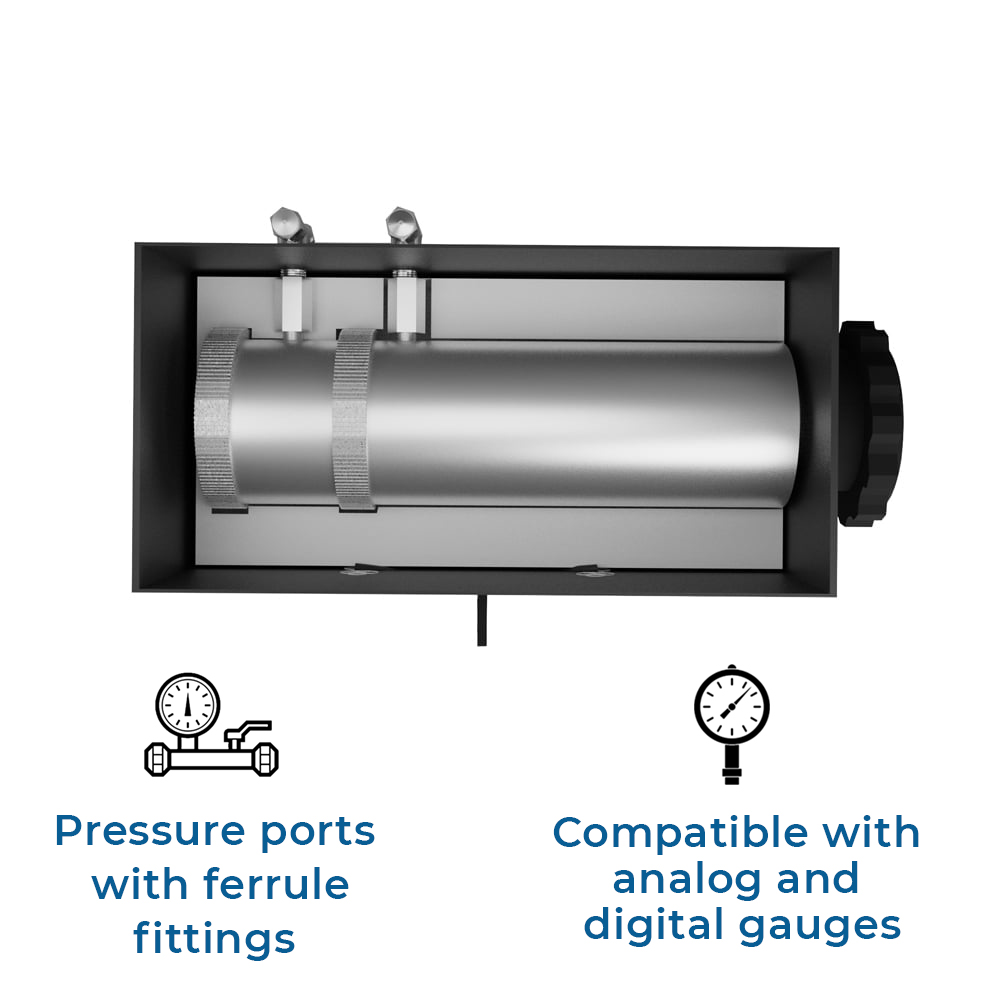

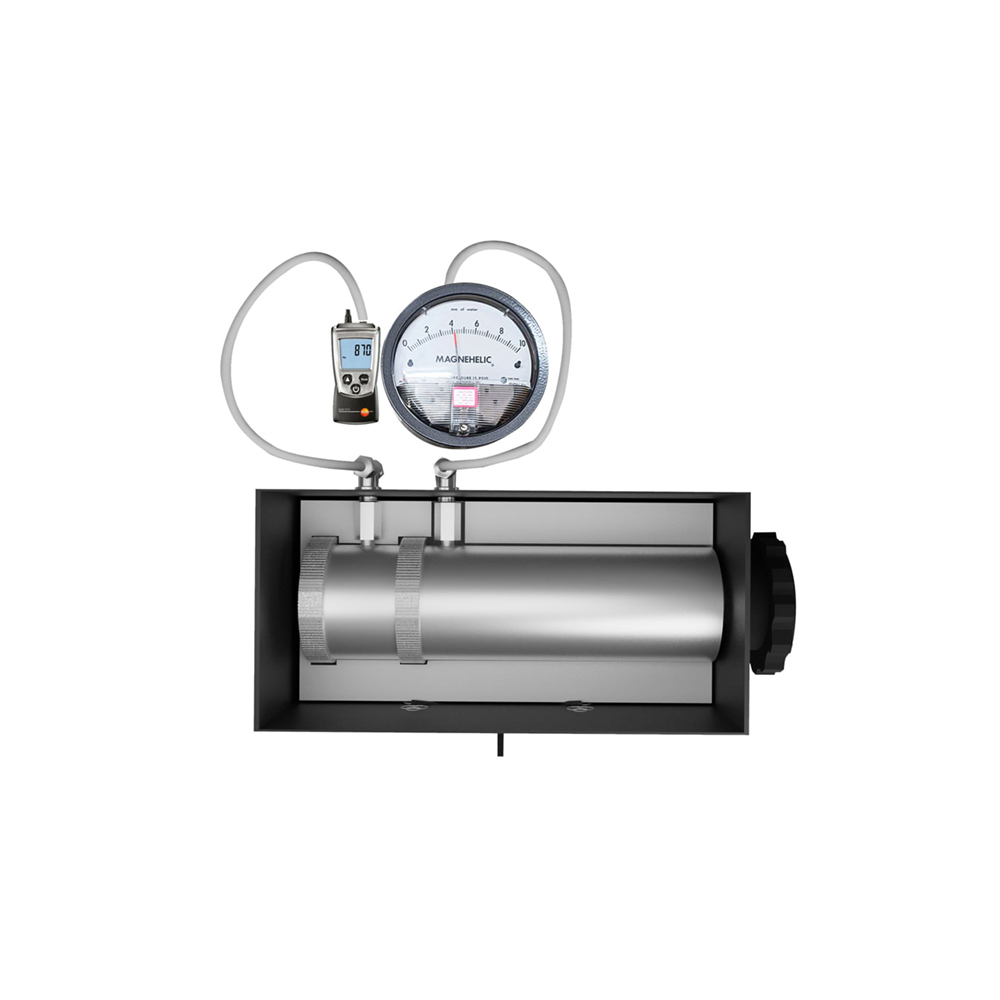

It is equipped with 2 pressure ports featuring ferrule fittings—one for the master gauge and one for the instrument under calibration.
-

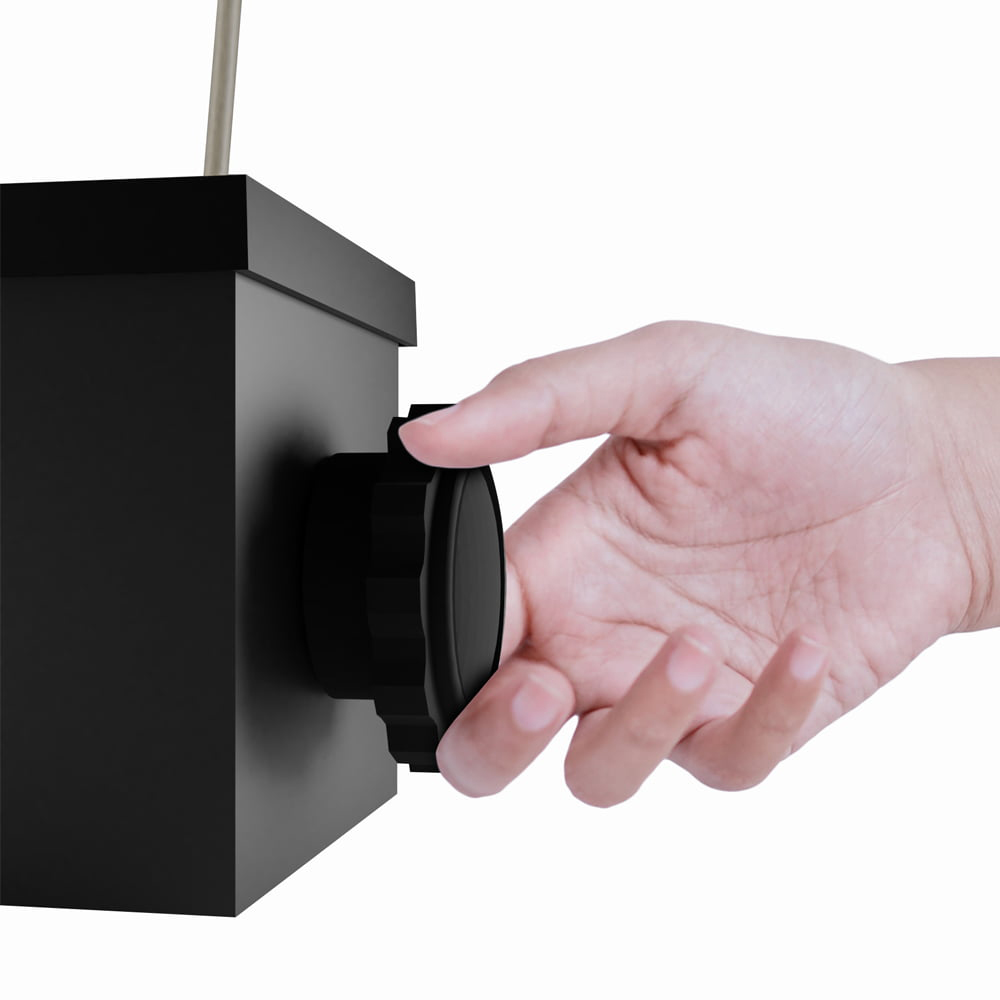

This includes 2 control knobs for precise adjustment.
-
Unit selection is available in millimeters, allowing easy unit customization.
-
It is lightweight and portable, making it easy to carry to calibration sites.
-
This is specifically designed for low-pressure differential gauges, with two separate compartments for enhanced accuracy.
-
It is enhanced with 4 ferrule-less connectors for quick and easy instrument connection and disconnection.
-
This allows fine adjustment resolution of 0.1 Pascal, ensuring accurate low-pressure calibration.
Additional information
| Manufacturer | Ace Instruments |
|---|---|
| Model No | IK-HPP-01 |
| Pump | Static Pressure Pump |
| Knobs | 2 Nos. for Fine & Coarse Pressure Adjustment |
| Pressure Range | Upto 1 bar |
| Vacuum Range | Upto 400 mm.Hg. |
| Pressure Ports_2 | 2 Pressure Ports with Ferrule Fittings, 1 Each for Master Gauge & Instrument under calibration |
| Approximate Volume | 400 C.C. |
| Maximum Pressure | 30 PSIG |
| Maximum Vaccum | 70% of Atmospheric Pressure |
| Adjustment | Coarse & Fine Control |
| Outlet Connections | 4 Ferrule-less Union Connections |
| Manufacturer | Testo |
| Model | 510 |
| Select Model | Pressure Pump with Master Gauge, Static Pressure Pump Only |
| Measuring Parameters | Differential Pressure |
| Range | 0 to 100 hPa |
| Accuracy | ±(0.1 hPa + 1.5 % of m.v.) (1.01 to 100 hPa), ±0.03 hPa (0 to 0.30 hPa), ±0.05 hPa (0.31 to 1.00 hPa) |
| Resolution_1 | 0.01 hPa |
| Positive pressure | 500 mbar |
| Maximum static pressure | 1.5 bar |
| Selectable Units | hPa, mbar, Pa, mmH2O, inH2O, inHg, mmHg, psi, m/s, fpm |
| Operating Temperature | 0 to 50 ℃ |
| Storage Temperature | -40 to +70 °C |
| Measuring Rate | 0.5 s |
| Protection class | IP 40 |
| Warranty | 1 Year Manufacturer Warranty |
| Note | Analog DP Gauge/Digital DP Gauge sold separately. |
| Supply Scope | 1 Unit of Pressure Calibrator (HPP-01), 1 Unit of Master Gauge (Testo 510, Silicon Tube, carrying Case, Batteries, Instruction Manual and Factory Calibration Certificate) |
