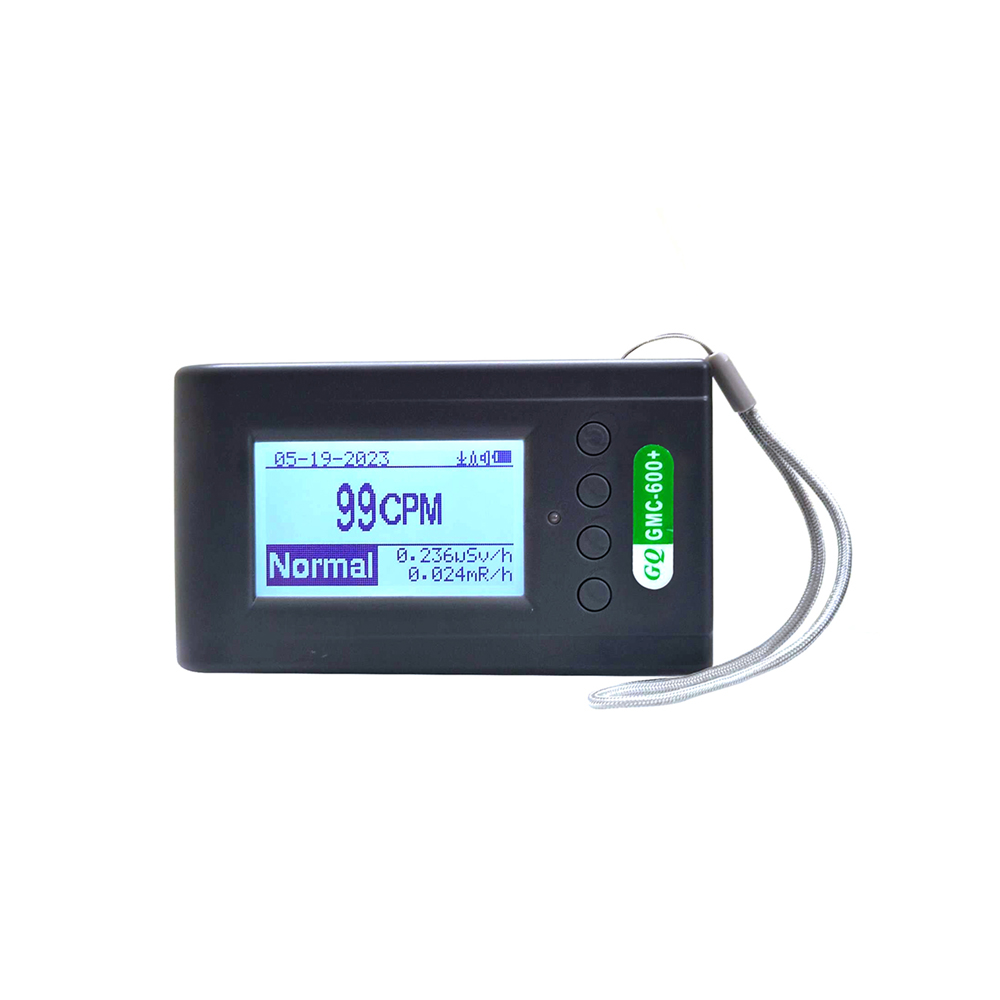

GQ GMC 600 Plus Geiger Counter
₹67,200.00
GQ GMC 600 Plus Geiger Counter is a lightweight, portable device that detects invisible radiation in real time and records data for future analysis. This Radiation Checker identifies Alpha, Beta, Gamma, and X-ray Radiation with a clear display and simple operation. It’s a Geiger Detector designed with both basic and advanced features. It’s easy to carry and ideal for personal use, monitoring, and safety in various environments where radiation exposure could occur.
Application: Emergency Response & Personal Safety, Industrial & X-ray Facility Monitoring, Medical & Hospital Use, Scientific Testing of Building Materials.
Features of GQ GMC Geiger Counter :
- This Metal Nuclear Radiation Detector Accumulative dosimeter for personal use
- Independent calibration
- Fast reading in a couple of seconds
- Data logging record first, playback later
- The large display provides more information
- This Geiger Muller Counter has an adjustable backlight and contrast
- This Geiger Muller Tube has an iOS App to view the data
- Text mode provides maximum data information. eg. CPM, Date, Time, Elapsed time, uSv/h, mR/h, etc.
- A powerful counter circuit is capable of handling high CPM counting.
- Open protocol
- It has a Swivel display
| odel | GMC-300E | GMC-320 | GMC-320 | GMC-500 | GMC-500+ | GMC-600+ | GMC-510 |
| +V4 | +V4 | +V5 | |||||
 |
 |
 |
 |
 |
 |
 |
|
| Geiger Tube Installed | One | One | One | One | Two | LND 7317 | M4011 |
| Radiation detected | Beta,Gamma,X-Rays | Beta,Gamma,X-Rays | Beta,Gamma,X-Rays | Beta,Gamma,X-Rays | Beta,Gamma,X-Rays | Alpha,Beta,Gamma,X-Rays | Beta,Gamma,X-Rays |
| LCD Display Size | 128×32 | 128×32 | 128×32 | 128×64 | 128×64 | 128×64 | 128×64 |
| Battery | 3.7V Li-Ion AA(14500) |
3.7V Li-Ion AA(14500) |
3.7V Li-Ion AA(14500) |
3.7V Li-Ion 18650 |
3.7V Li-Ion 18650 |
3.7V Li-Ion 18650 |
3.7V Li-Ion 18650 |
| LED Indicator | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Audio Data Port | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| USB Data Port | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Mini USB Cable | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Internal Flash Memory | 64 KB | 1 MB | 1MB | 1MB | 1MB | 1MB | 1MB |
| Internal Data Logger | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Real-Time Clock | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Electronic Gyroscope | Yes | Yes | Yes | Yes | Yes | Yes | |
| Temperature Sensor | Yes | Yes | |||||
| WiFi Module | Yes | Yes | Yes | Yes | Yes | ||
| GPS module on board | Yes | ||||||
| GPRS (Cell phone network) | Yes | ||||||
| GSM SIM Card Slot | Yes | ||||||
| GPS Tracking on cell phone | Yes | ||||||
| Precision Temperature Sensor | Yes | ||||||
| Air Pressure Sensor | Yes | ||||||
| Humidity sensor | Yes | ||||||
| Buy Now | Buy Now | Buy Now | Buy Now | Buy Now | Buy Now | Buy Now |
Additional information
| Manufacturer | GQ Electronics |
|---|---|
| Model | GMC 600 |
| Range of dose rate indications, µSv/h | 0.00 to ~4250 |
| Range of exposure dose rate indications, mRem/h | 0.00 to ~425 |
| Reproducibility indication | 10% |
| Range of CPM | >1,000,000 (continuously) |
| Alarm levels by CPM | Alarm levels by CPM |
| Alarm levels by µSv/h | 0.00 to 4250 |
| Alarm levels by mRm/h | 0.00 to 425 |
| Date indication | YYYY-MM-DD |
| Time indication | HH-MM-SS |
| Elapsed time indication | 99 years(maximum) |
| Timed Count | 1 Second to 256 days(programmable) |
| Scheduled Timed Count | 0 Second to 256 days(programmable) |

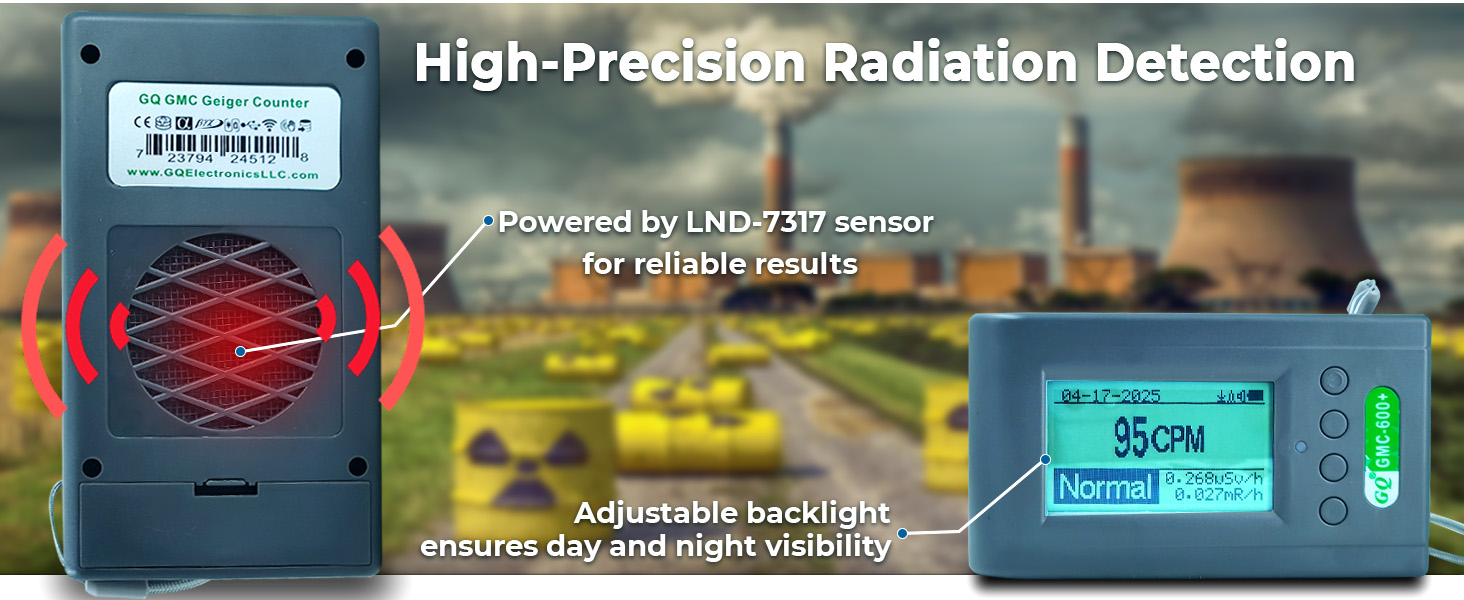

| Sensor installed | Pancake LND-7317 (GMC-600+) |

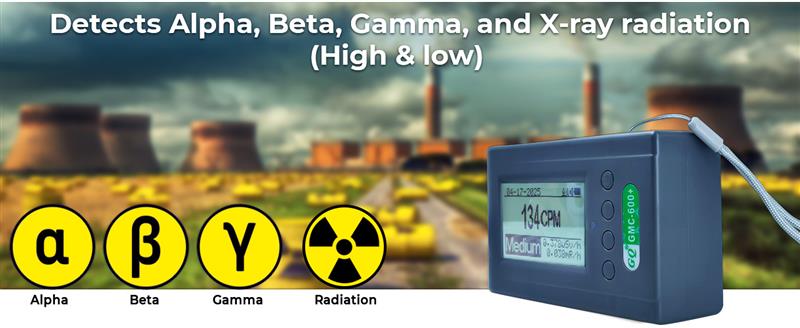

| Radiation detection | α,ß, γ, x-Ray |
| Detectable Radiation level | α (2.5 MeV),ß (50KeV), γ, x-Ray(10 keV) |
| Instrument Background | < 0,2 pulses/s |
| Working Voltage | 3.6-3.7V |
| Display | LCD dot matrix, back lighted |
| On board Memory | 1M Bytes flash memory for data storage |
| Power Consumption | 25mW – 125mW |
| Power Supply | 3.7V Li-Ion battery / USB power |
| Dimensions | 135 x 78 x 25 mm |
| Supply Scope | GMC-600+ main unit, Quick start guide, USB cable |
