Dry Block Temperature Calibrator-AI-DBC
₹72,160.00

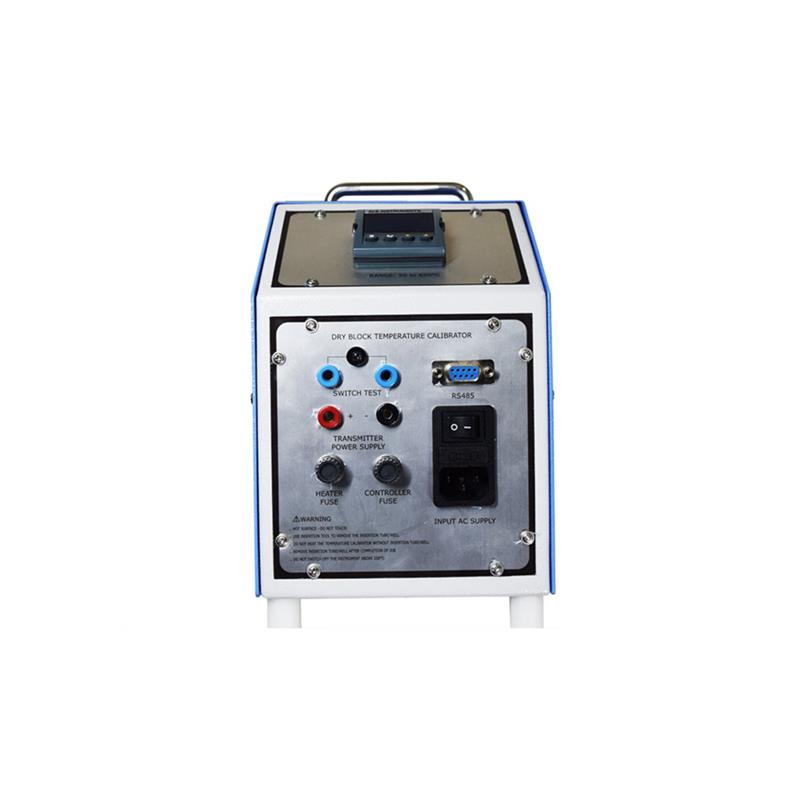

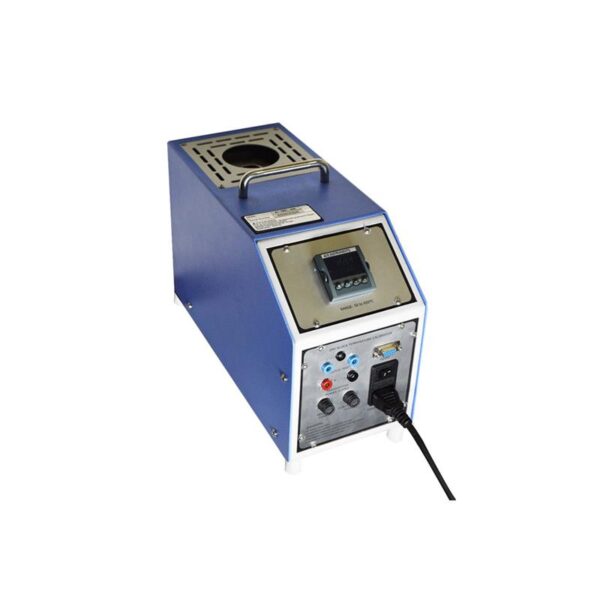

Dry Block Temperature Calibrator AI-DBC is a precision instrument used to verify and adjust the accuracy of temperature-measuring devices such as RTDs, thermocouples, and temperature transmitters. It features a graphical display, microcontroller-based control, a feather-touch keypad, and fast heating/cooling. This Dry Block Calibration reads both the set temperature and the device input simultaneously with excellent stability. Its additional features include loop power supply, cold junction compensation, and measurement capabilities for RTDs, thermocouples, mA, mV, V, and Ohms.
Applications:, Pharmaceutical divisions, Thermal plants, Calibration labs, concrete plants, Fertilizer divisions, metallurgical plants, and so on.
Features Of Dry Block Temperature Calibrator-AI-DBC :
- It features a clear graphical display for easy monitoring and control.
- This Dry Well Calibrator features a responsive feather-touch keypad for easy and precise control.
- It offers rapid heating and cooling, allowing quick and efficient temperature calibration.
- This dry block calibrator provides a built-in loop power supply for transmitter testing.
- Where simultaneous readings matter, it measures both the set temperature and device input accurately.
Additional information
| Manufacturer | Ace Instruments |
|---|---|
| Model No | AI-DBC |
| Measuring Parameters | Temperature, Current, Voltage, Resistance |
| Measuring Range | AI-DBC 650 – Range 50 to 650 Deg.C, (contact store for more ranges) |
| Display | Graphical with LED Backlight |
| Transmitter Supply | 24V DC ± 10% (Loop Powered) |
| Block Diameter | 25.4 mm |
| Block Depth | 120 mm |

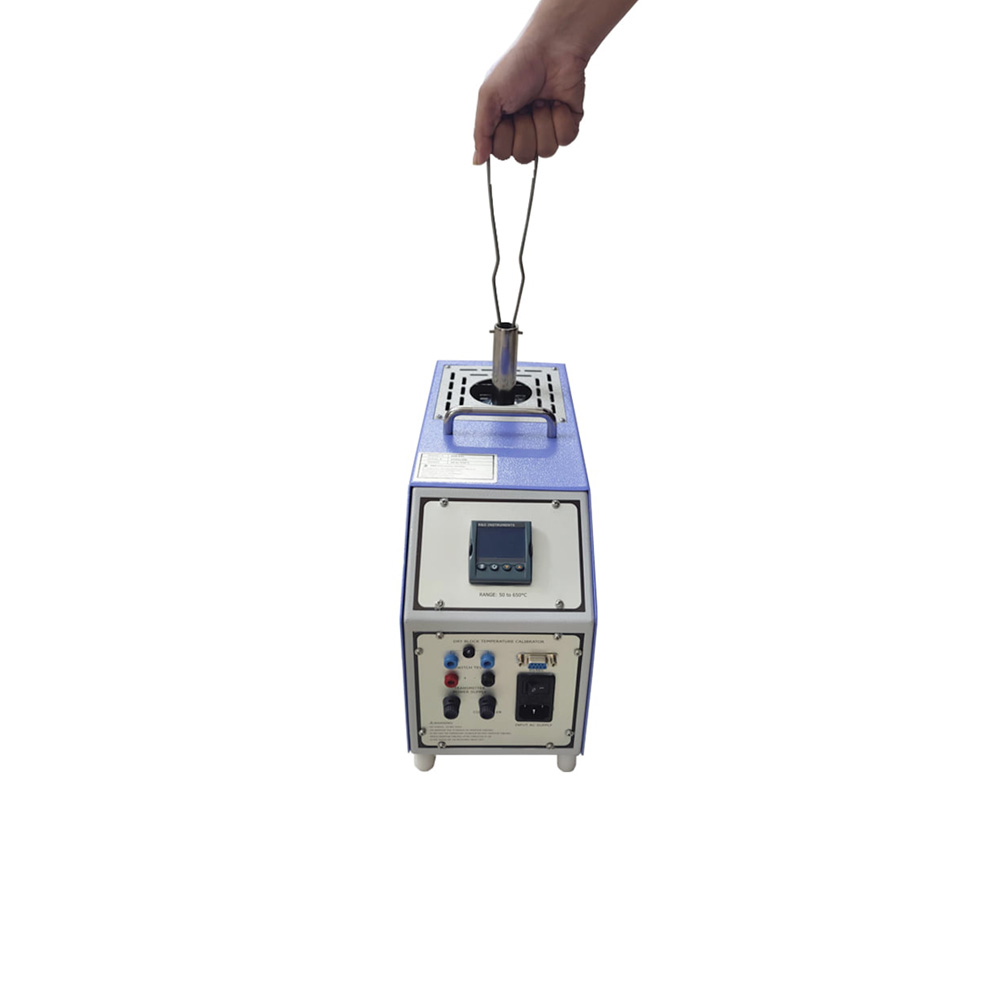

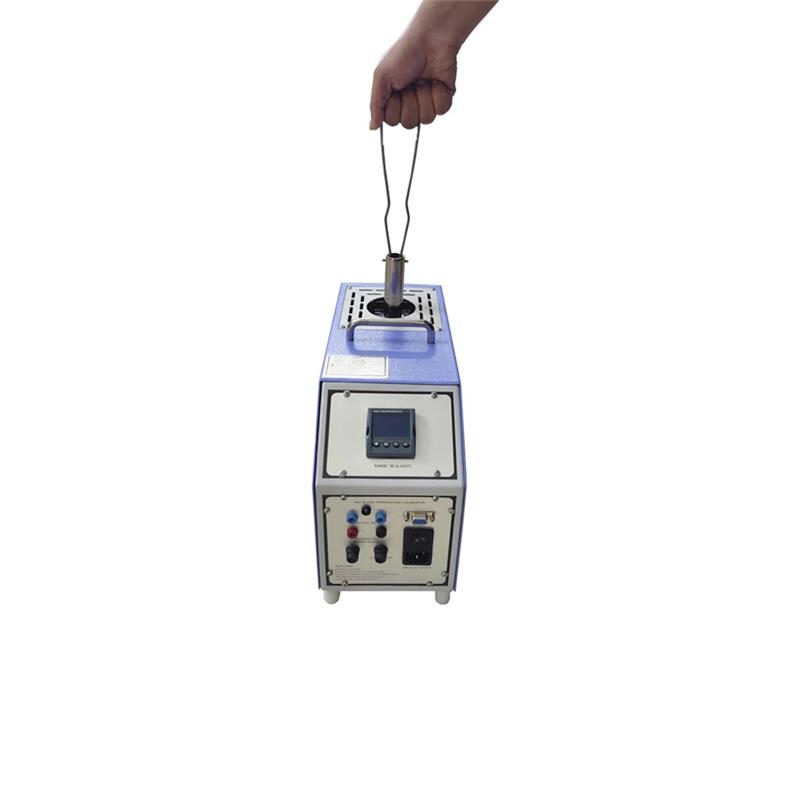

| Insertion Tube Depth | 110 mm |
| Display Stability | ±0.2°C |
| Switch Test | Continuity check with OPEN / CLOSE indication |
| Temperature steps (Deg.C) | 50, 150, 300, 450, 600 |
| Engineering Units | °C / °F Switchable |
| J type Thermocouple | -200 to 1200°C |
| Accuracy | ±0.025 % of Reading + 1°C |
| Resolution | 0.1 °C |
| K type Thermocouple | -200 to 1372°C |
| Accuracy 1 | ±0.025 % of Reading + 1°C |
| Resolution_1 | 0.1 °C |
| T type Thermocouple | -200 to 400°C |
| Accuracy 2 | ±0.025 % of Reading + 1°C |
| Resolution_2 | 0.1 °C |
| R type Thermocouple | 300 to 1760°C |
| Accuracy 3 | ±0.025 % of Reading |
| Resolution 3 | 1 Deg.C |
| S type Thermocouple | 300 to 1760°C |
| Accuracy 5 | ±0.025 % of Reading |
| Resolution 5 | 1 Deg.C |
| N type Thermocouple | -200 to 1300°C |
| Accuracy 6 | ±0.025 % of Reading + 1°C |
| Resolution 6 | 0.1 °C/°F |
| mA | 0 to 25 mA |
| Accuracy 7 | ±0.025% of Reading + 10 µA |
| Resolution 7 | 0.001 mA |
| mV | 0 to 1000.0 mV |
| Accuracy 8 | ±0.025% of Reading + 0.25 mV |
| Resolution 8 | 0.01 mV |
| Volts | 0 to 10.000 V |
| Accuracy 9 | ±0.025% of Reading + 3 mV |
| Resolution 9 | 0.001 V |
| Ohms | 0 to 400 ohms |
| Accuracy 10 | ±0.025% of Reading + 0.1 Ohm |
| Resolution 10 | 0.01 Ohms |
| RTD (Pt 100) | Range: -200 to 850 C ; Resolution: 0.1°C ; Accuracy: ± O 0.025% of Reading + 0.3 C |
| Accuracy 11 | ±0.025% of Reading + 0.3 Deg.C |
| Resolution 11 | 0.1°C |
| Power Supply | 230V AC ± 5% / 50Hz, 500 W for 350UTC |
| Warranty | 1 Year Manufacturing Warranty |
| Dimensions | 155x240x350 mm |
| Weight | 8 Kgs |
| Certificate | Calibration certificate |

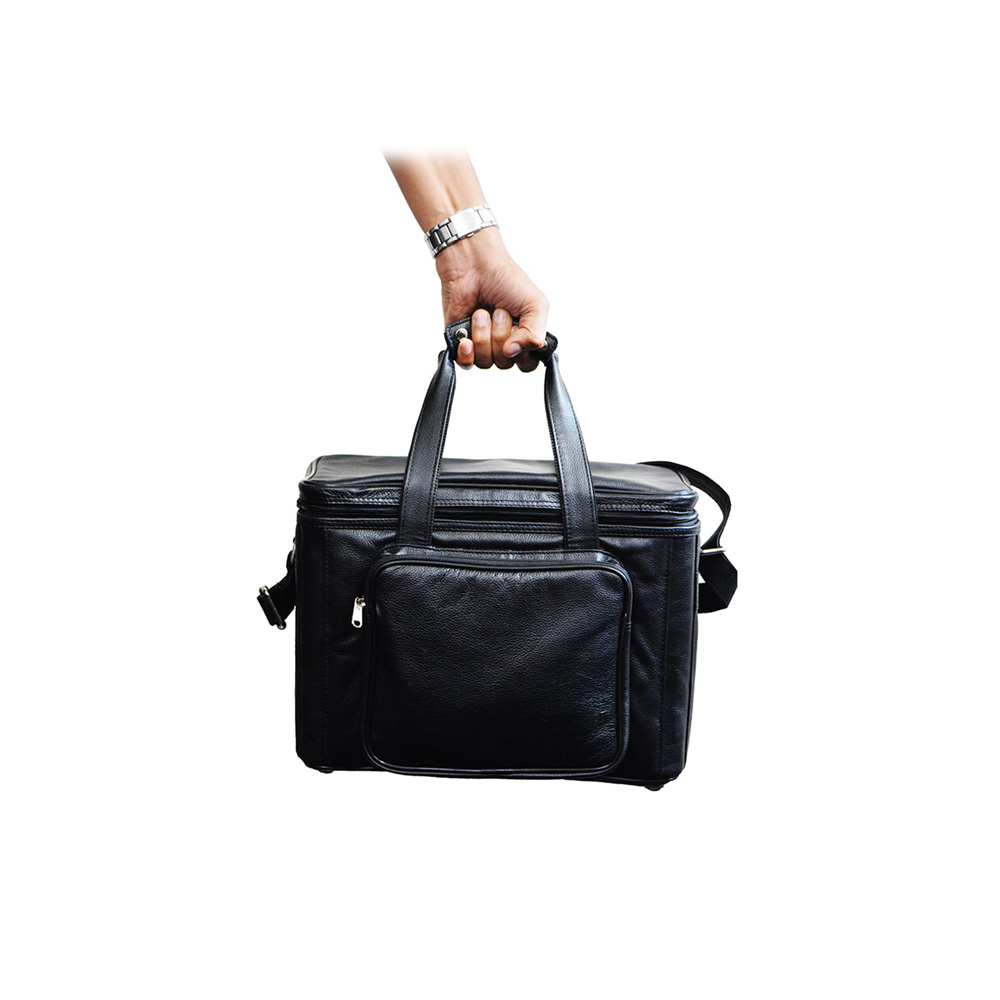

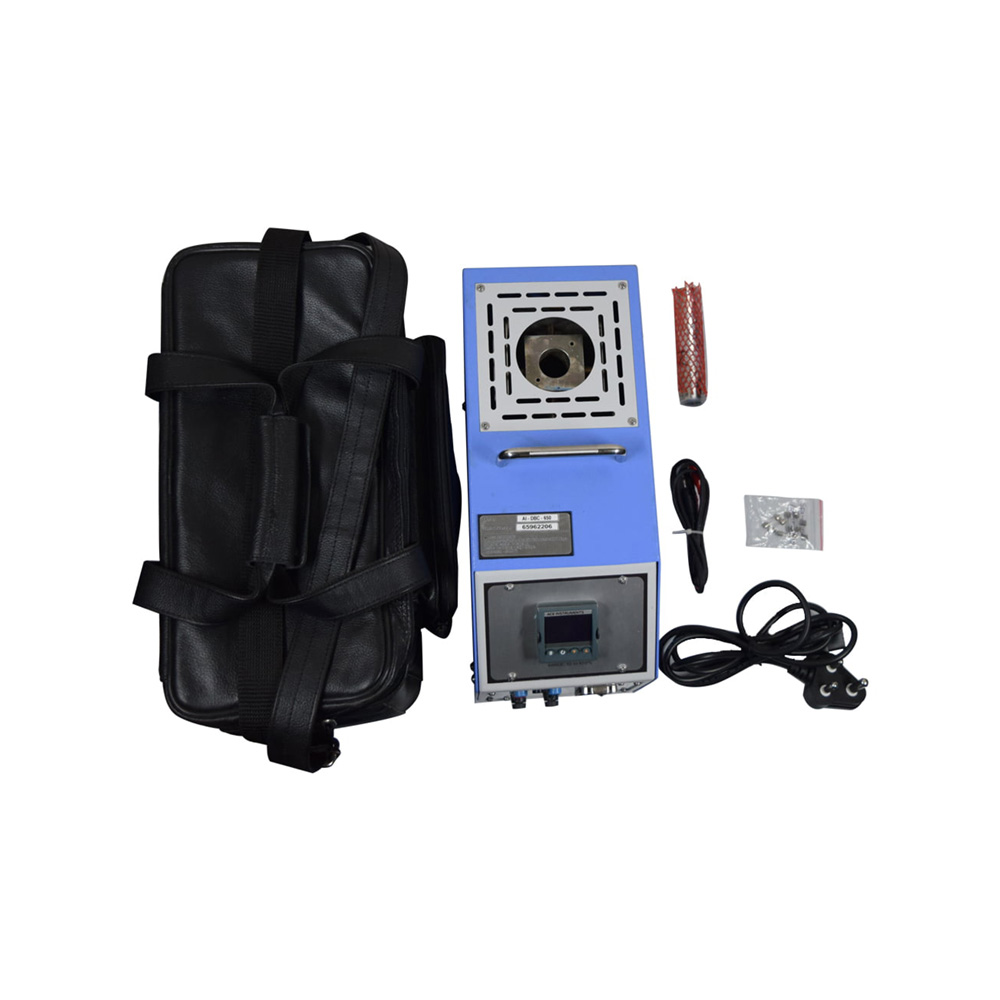

| Accessories | Carrying case, Insertion Tube, Power Cable, Traceable Calibration Certificate |
