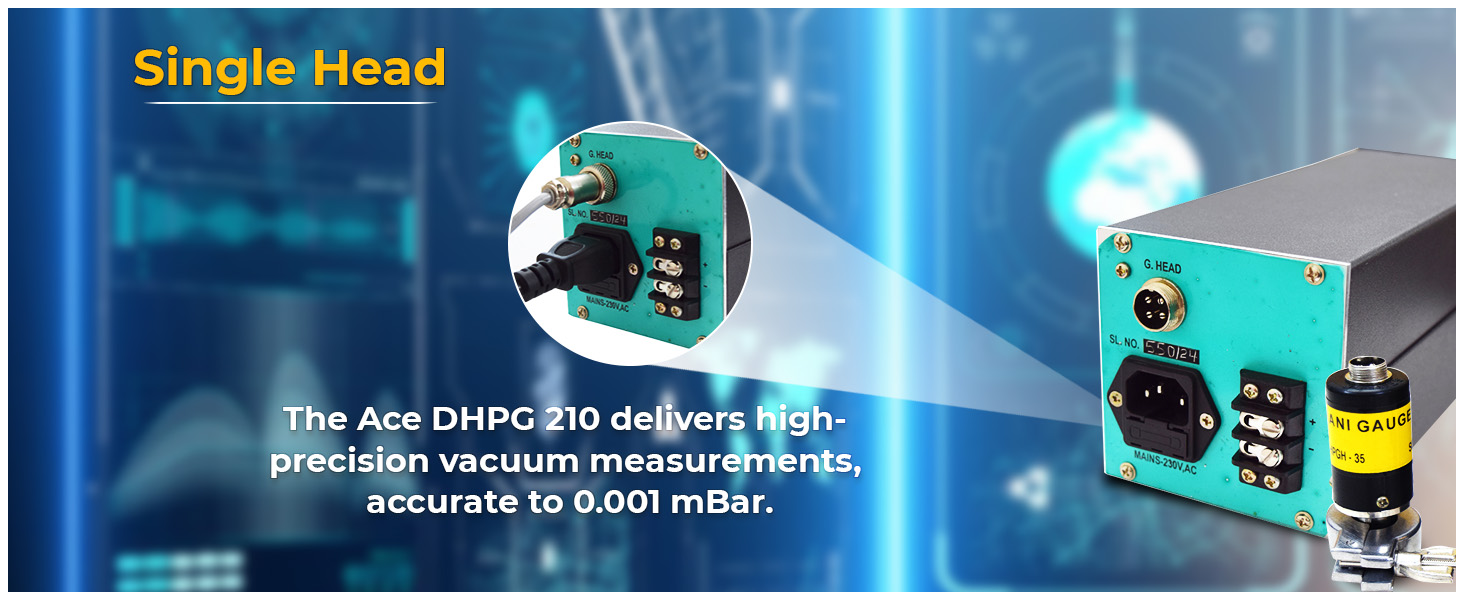

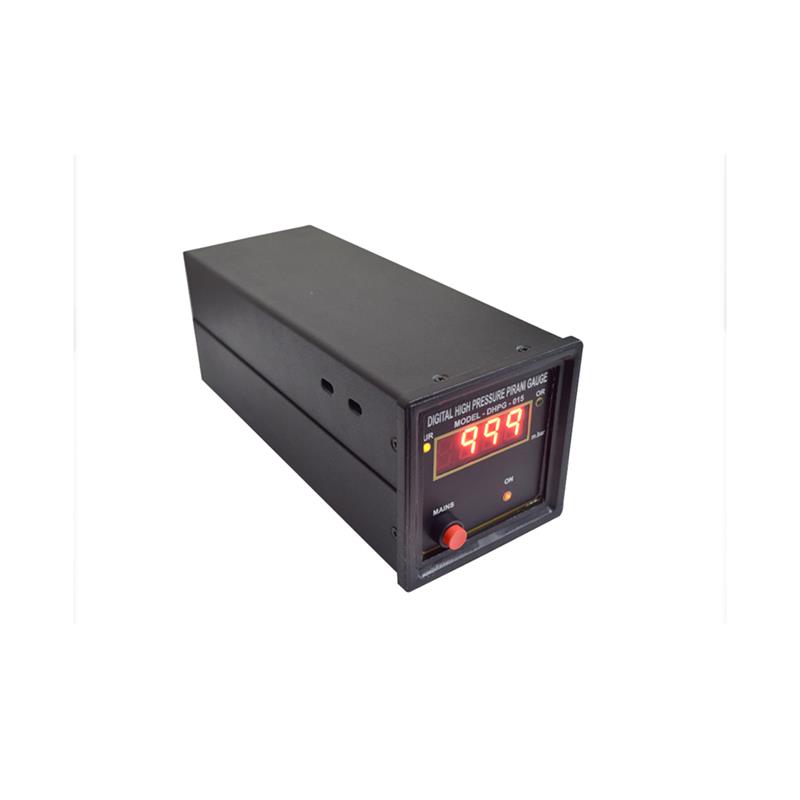

Digital Pirani Vacuum Gauge DHPG 210
₹23,125.00 – ₹27,248.00

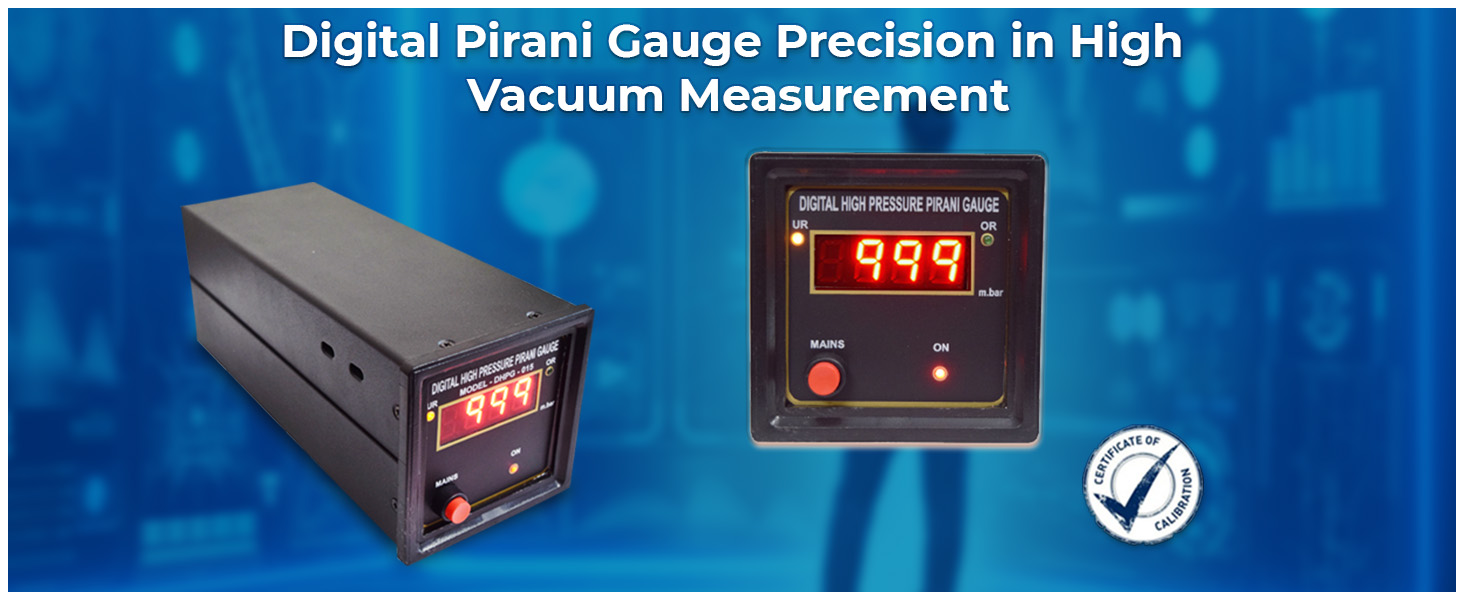

Digital Pirani Vacuum Gauge DHPG 210 is a panel mounted device designed for precise vacuum measurement up to 0.001 mBar. Its Compact Digital Pirani Gauge comes with a KF clamp sensor, a clear 4-digit LED display, and smart thermal conductivity-based measurement for accurate vacuum monitoring. This Vacuum Indicator serves as a direct replacement for traditional analog sensors and operates efficiently on a single-phase 230V AC supply.
Applications: Food Industries, Automobile Industries, Pharmaceuticals Industries, Aerospace, Research and Development, etc.
Features Of Digital Pirani Vacuum Gauge :

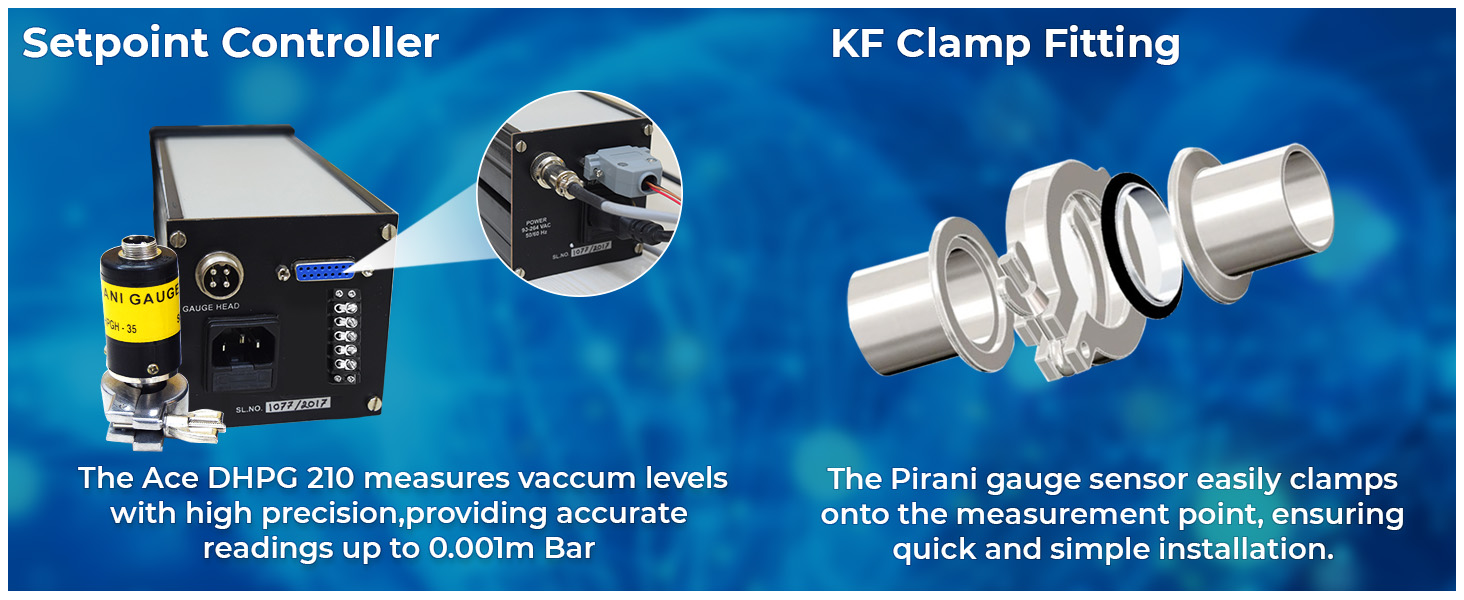

● It comes with a relay output adjustable via a front potentiometer.
● This device is widely used in sputtering units, coating units, ejector systems, and diffusion pumps.
● This gauge has a user-friendly interface with digital displays for easy pressure monitoring and control.
● Its robust and lightweight construction ensures dependability and lifetime in demanding settings
Additional information
| Manufacturer | Ace Instruments |
|---|---|
| Model No | DHPG 210 |
| Measuring Parameters | Vacuum |
| Measuring Range | 999 mBar to 0.001 mBar ( 1 Micron ) |
| Accuracy | ±10% on Full Scale |
| Display | 4 Digits Auto-Ranging, 0.5” High Display Red Color 7 Segment Type |
| Relay Output | Relay Set Point available only on Model DHPC-011S ( 1 Set of NO/CO/NC) |

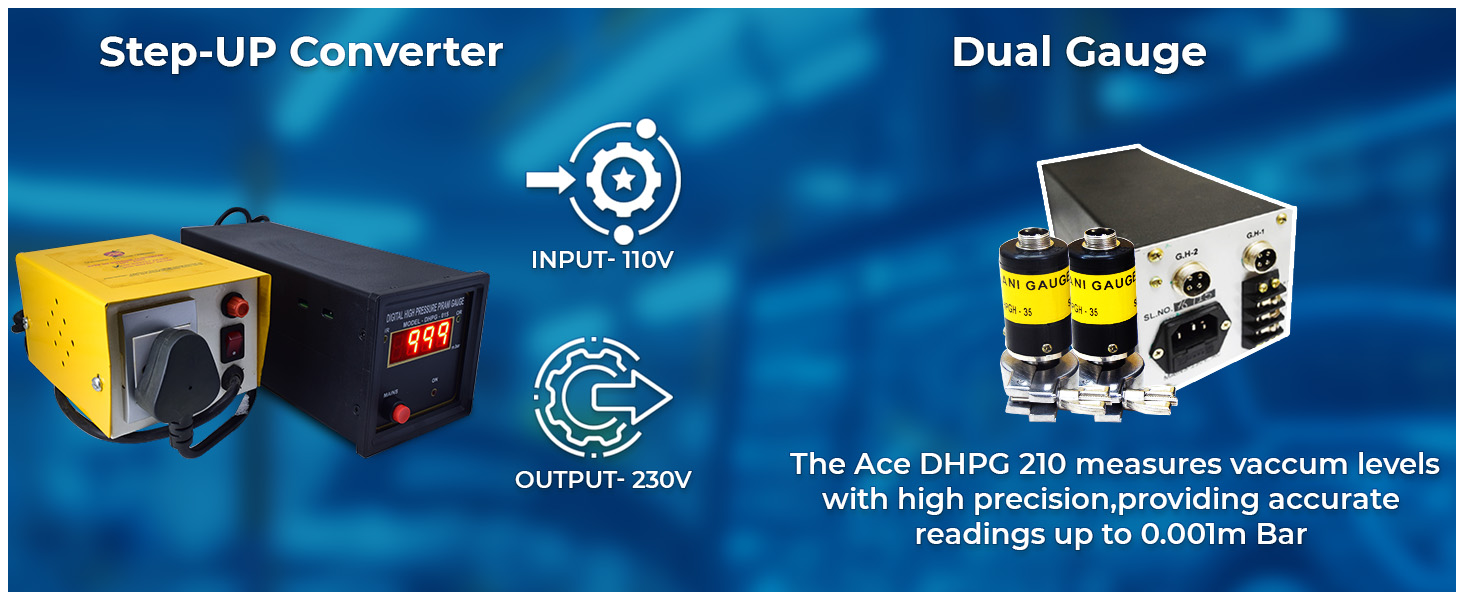

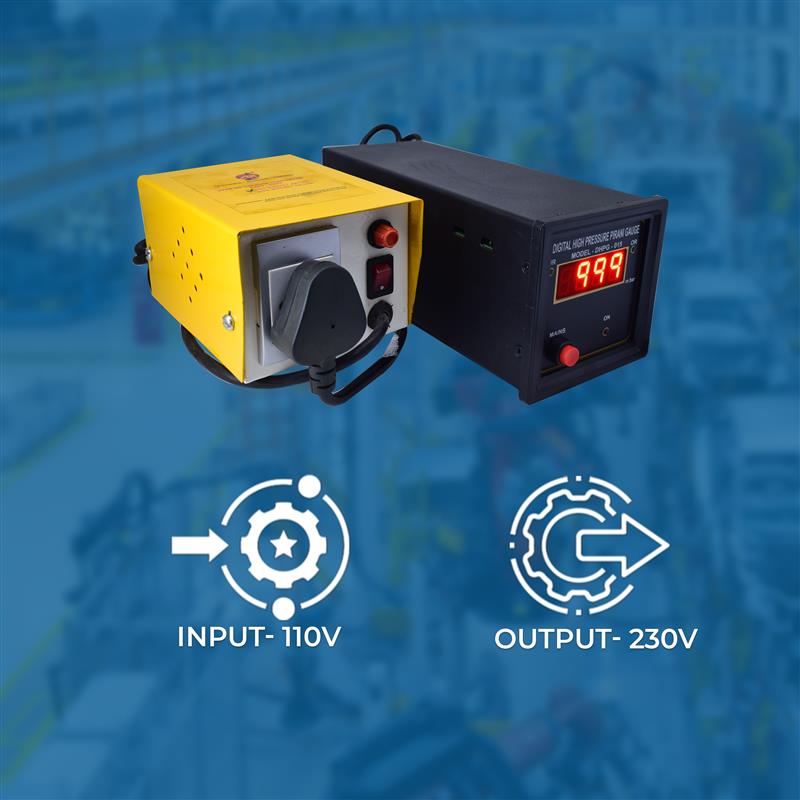

| Power Supply | 230 VAC , 50 Hz with Step Up converter (110 V A.C to 230 V A.C) for optional |
| Accessories | KF 10 Flange, KF 10 Clamp, O Ring , Mains Chord |

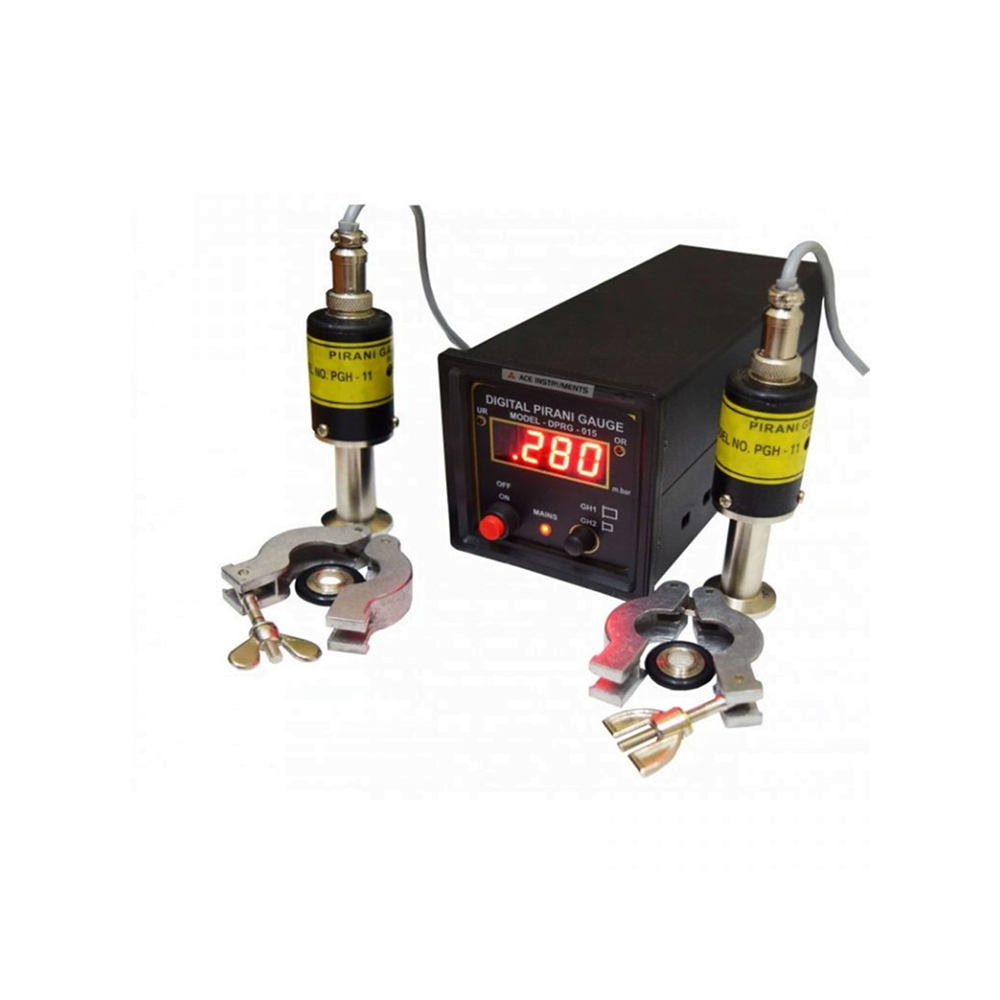

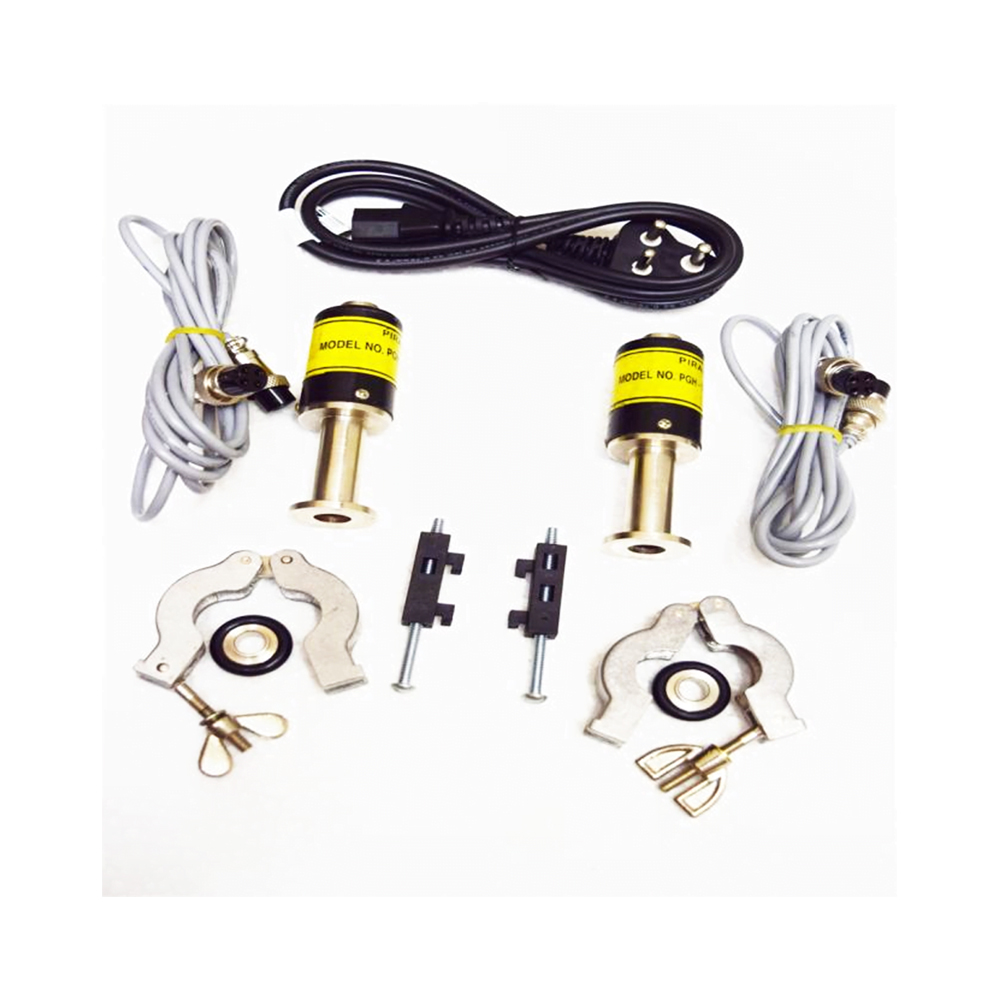

| Supply scope for AI-DPRG-015 / AI-DPRG-01 Pirani Gauge with Dual Gauge Head | 1 unit of Pirani Gauge, 2 units of Gauge Head, 2 Units of KF10/16 Clamp, Screw Set for Panel Mounting, 2 unit of Flange, 2 unit of O-Ring, 1 unit of Power Cord, KF 10 to KF 25 Clamp Reducer(Optional) |
| Supply Scope for AI-DPHG-011 / AI-DHPG-210 Digital Pirani Gauge | 1 Unit of Pirani Gauge, 1 Unit of Gauge Head, 1 Unit of KF 10/16 Clamp, Screw Set for Panel Mounting, 1 Unit of Flange, 1 Unit of O-Ring, 1 Unit of Power Cord,, KF 10 to KF 25 Clamp Reducer(Optional) |
| Supply scope for AI-DPRG-1GH-SP / AI-DHPC-011S Pirani Gauge with Set Point Controller | 1 unit of Pirani gauge, 1 unit of gauge head, 1 unit of KF clamp, 1 unit of the flange, 1 unit of O-ring, 1 unit of the power cord |
| Calibration | Provided alongwith and valid for 1 year, traceable to National Standards. |
| Note | Since Vacuum Gauge is fragile & it is prone to fail at Vacuum lesser than 10-3 |
| Warranty | 1 Year Manufacturing Warranty |
| Weight | 1500 Grams |
