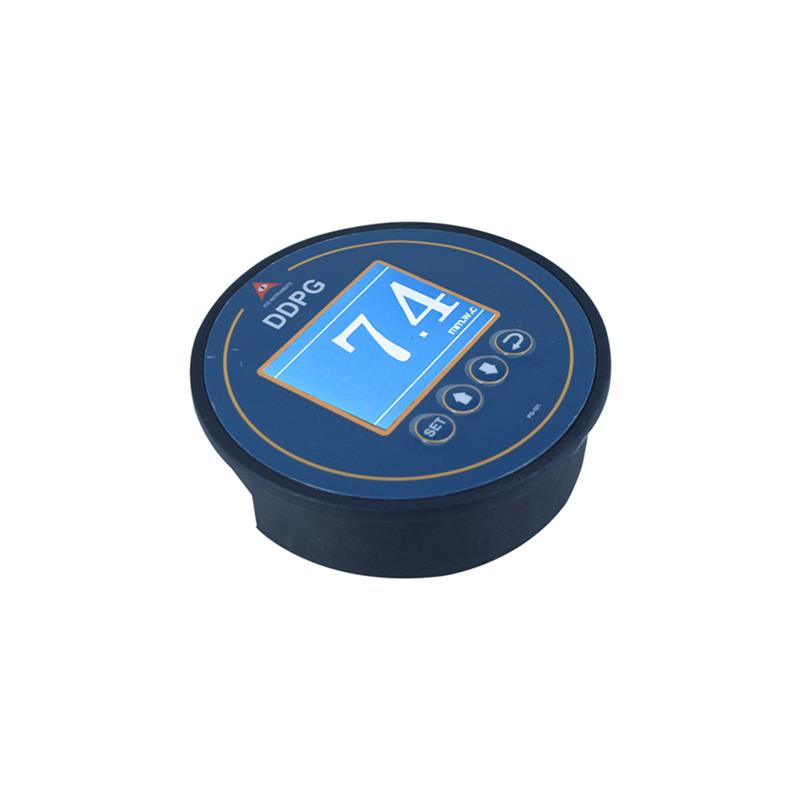

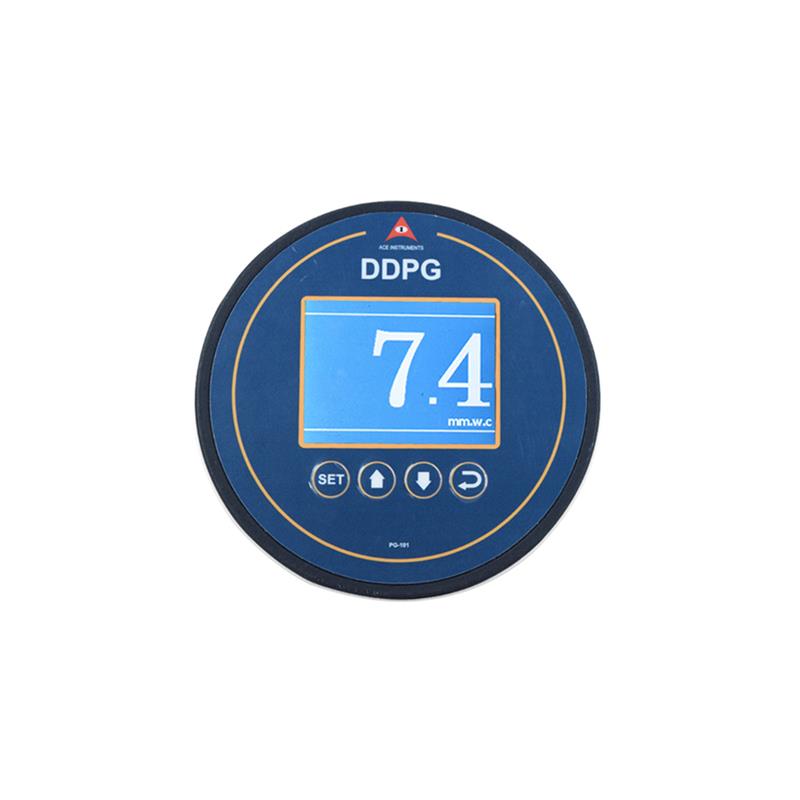

Digital Differential Pressure Gauge AI-DDPG-TFT
₹9,770.27 – ₹12,945.59
The Ace AI-DDPG-TFT Digital Differential Pressure Gauge is designed for pressure monitoring in critical environments like cleanrooms, isolation wards, and operating theaters. Featuring a clear 4-digit TFT display and 0.5% full-scale accuracy, it supports continuous monitoring and real-time data transmission. With alarm functions and compatibility with BMS, PLC, and SCADA systems, it ensures safe, stable, and controlled pressure conditions across sensitive applications.
Application: Laminar Air Flow Cabinets, Biosafety Cabinets, AHU, Clean Rooms, Laminar Air Flow Cabinets, Hospitals, ICU, etc.
Features of Ace AI-DDPG-TFT Digital Differential Pressure Gauge:
- Features a bright TFT display that ensures clear and easy reading of pressure data, even in low-light conditions.
- Allows seamless switching between measurement units such as Pascals and mm W.C. with a single button press.
- Includes a built-in audible alarm that triggers when user-defined pressure thresholds are exceeded.
- Provides a 4–20 mA analog output for integration with external monitoring and control systems.
- Slim 30 mm profile is ideal for cleanroom modular wall installation and is compatible with standard Magnarelli gauge cut outs.
- Offers an offset adjustment feature to align readings with audit and compliance requirements.
Additional information
| Manufacturer | Ace Instruments |
|---|---|
| Model No | AI-DDPG-TFT |
| Measuring Parameters | Differential Pressure |
| Range | All Ranges are avaliable, Please select from drop down mentioned above |
| Accuracy | +/-0.5% of Full Scale |
| Resolution | 1 Pascals / 0.1 mm.W.C. |
| Display | Integrated 4 Digit Red LED 7 Segment Display 0.5” |
| Maximum Over Pressure | 2 Times the rated pressure |
| Sensors | Integrated High Speed Differential Pressure Sensor |
| Medium | Air or Gases ( Non Corrosive ) |

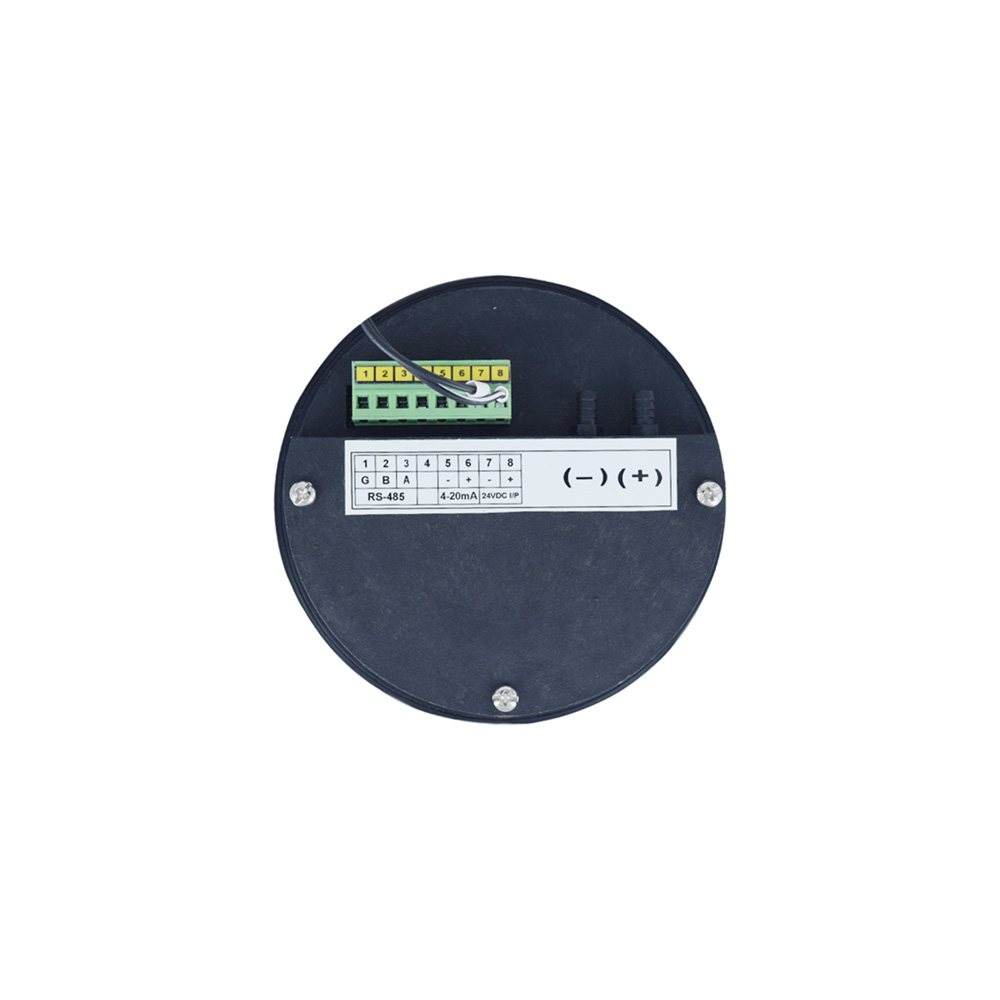

| Connection | 2 Nos. Hose Nipples of 4mm. ABS Plastic at the back |
| Alarm Type | Built in Buzzer Alarm for Process Violation Alert |
| Construction | Matte Finish ABS Plastic Enclosure |

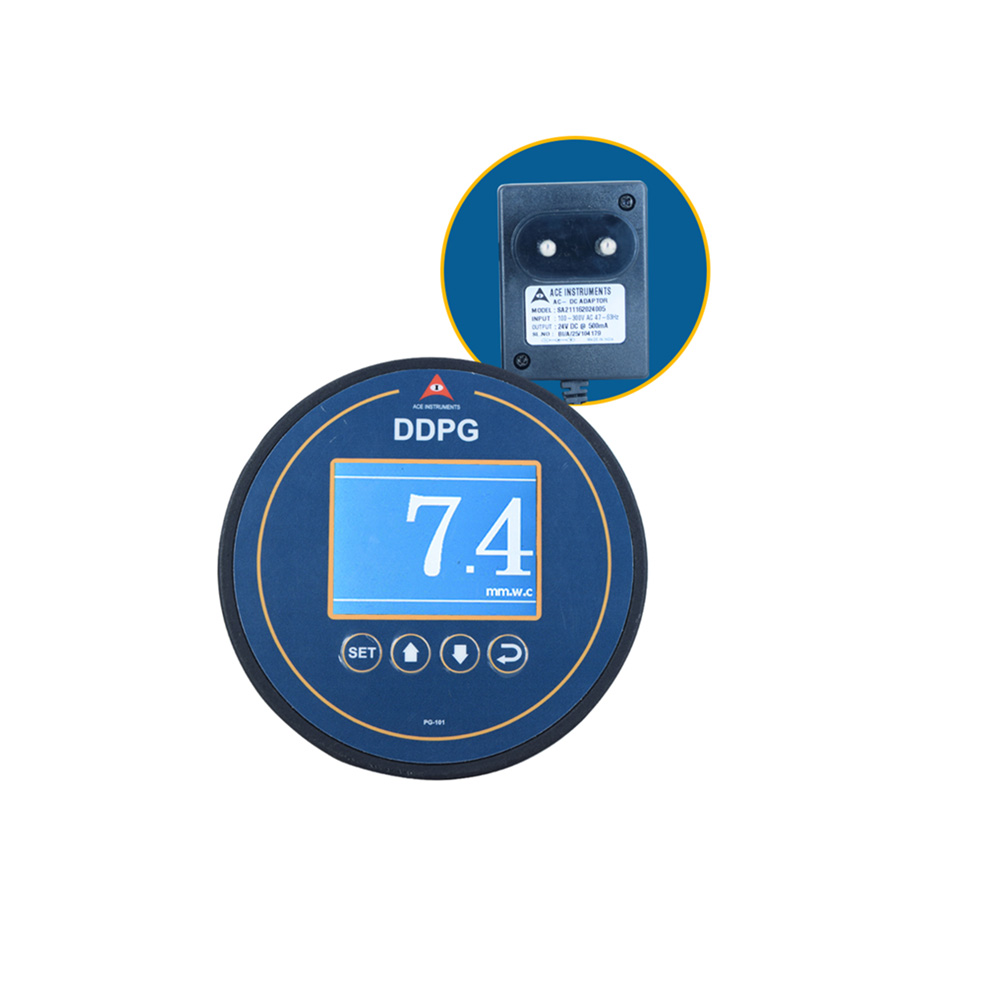

| Power Supply | 12-24VDC, by the way of 110-230 VAC, 50-60Hz Adaptor provided along with (Fits well in USA and European countries Also) |
| Size | Standard 4 ½'' (114.3mm.) Diameter, Depth : 30 mm. Can be easily replace with magnaheic® |
| Calibration | Will be provided at no extra cost valid for 1yr traceable to Electronic Test & Development Centre. |
| Supply Scope | 1 unit of DDPG, 12-24VDC Adapter, Silicon tube, Mounting screws, Instruction manual, Calibration certificate |
| Warranty | 1 Year Manufacturer Warranty |
| Weight | 180 Grams |
