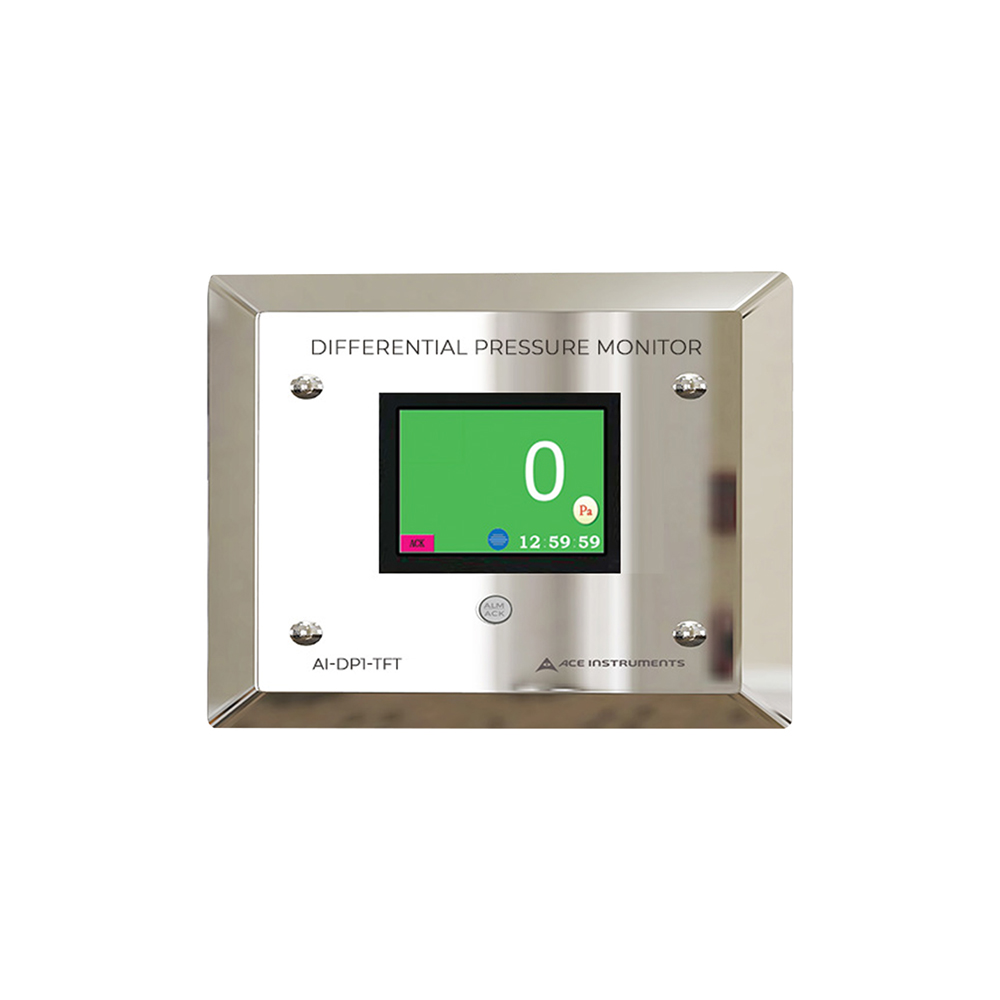

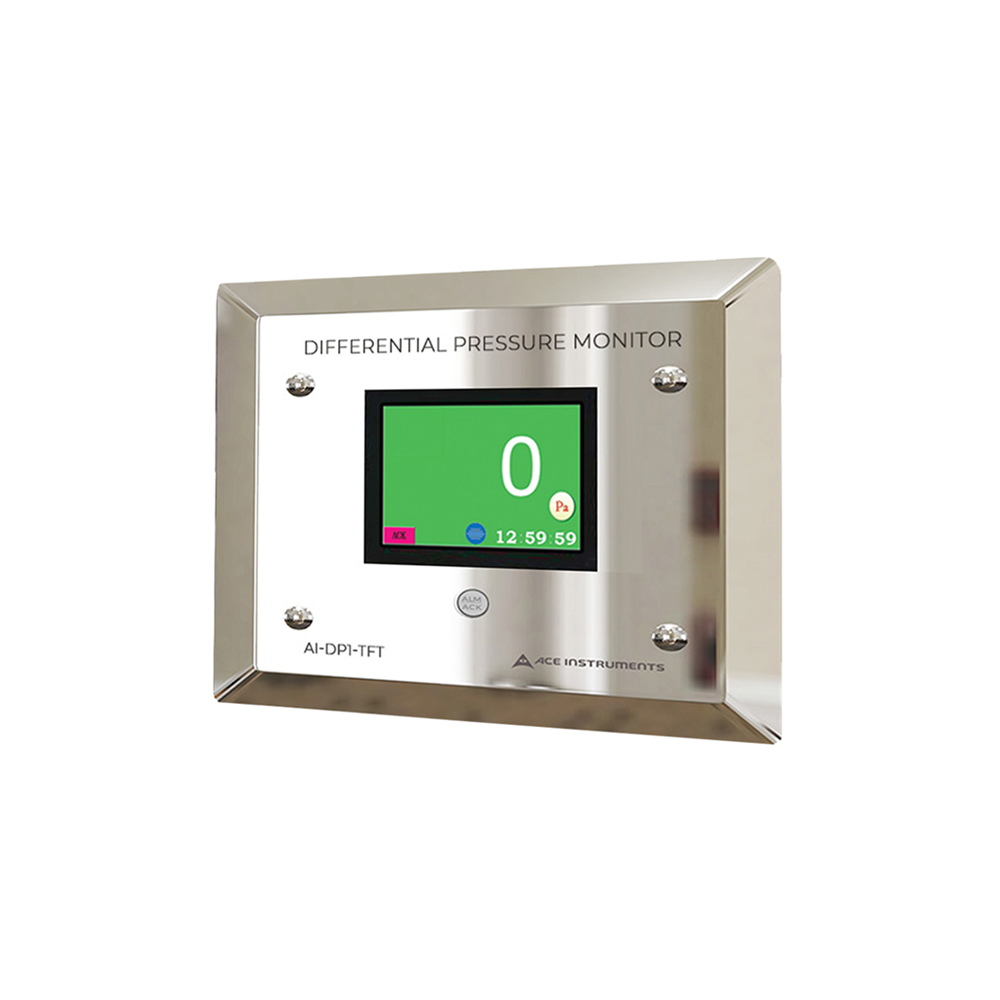

Differential Pressure Monitor AI-DP1-TFT
₹16,235.00 – ₹17,047.80
Differential Pressure Monitor AI-DP1-TFT is a device designed to measure and monitor the pressure difference between two zones—a critical requirement in environments such as clean rooms, laboratories, hospitals, and isolation rooms. Equipped with a high-accuracy sensor, this device provides pressure readings to ensure proper airflow, reduce contamination risk, and maintain safety standards. Differential Pressure monitor also features RS-485 Modbus communication, allowing seamless integration with Building Management Systems (BMS), SCADA, and PLC platforms for centralized monitoring and control.
Applications: Isolation Rooms, Laminar Air Flow Cabinets, Infection Rooms, HVAC, Bio Safety Cabinets, AHUs, and numerous others, Hospital Operation Theatre (OT) rooms, Pharmaceutical Clean Rooms ect..
Features of Differential Pressure Monitor AI-DP1-TFT:
- TFT Colour Display Offers clear and real-time visualization of pressure readings for easy monitoring and quick interpretation.
- This Differential Pressure Monitor Supplied with a modular or brick wall-mountable MS back box and a sleek stainless steel front flush plate for a professional and secure installation.
- Supports isolated Modbus connectivity, allowing smooth integration with automation and monitoring systems like BMS or SCADA.
- Comes with a 1-year calibration certificate traceable to the Electronic Test & Development Centre (ETDC), provided at no additional cost.
Additional information
| Manufacturer | Ace Instruments |
|---|---|
| Model No | AI-DP1-TFT |
| Measuring Parameters | Differential Pressure |
| Measuring Range | Contact Store, -100 to + 100 Pascal ( In Built Sensor ) Any other range as per requirement |
| Accuracy | +/- 0.5% F.S. |
| Sensors | Inbuilt Differential Pressure sensor |
| Display | Single row 3 Height TFT Color Screen Display |
| Alarm | Built In High & Low Buzzer Alarm for Process Set Parameter Violation with touch Acknowledgement |
| Enclosure | Modular Wall/Brick Wall Mountable M.S. Back Box with Stainless Steel Front Flush Plate. |
| Real Time Clock | Optional real time clock (RTC) with HH:MM:SS |
| Output | 4-20mA Output (Please select above dropdown) |
| Communication | (Please select above dropdown), Isolated RS485 Modbus Protocol (optional) |

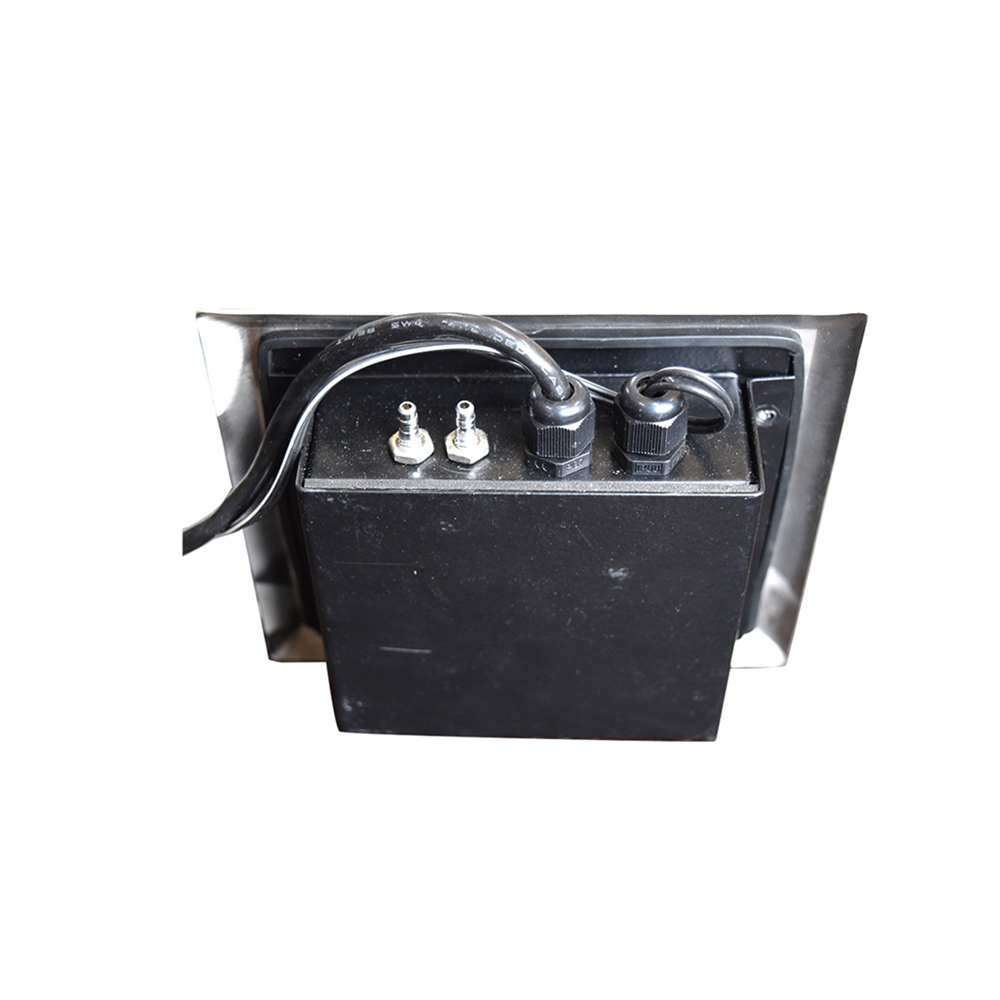

| Connection | 2 Nos. Hose Nipples of 4mm. Stainless Steel at the Back |
| Power Supply | 12-24VDC, by the way of 110 VAC to 230 VAC, 50Hz to 60Hz Adaptor provided along with (Fits well in USA and European countries) |
| Calibration | Will be provided at no extra cost valid for 1 year traceable to Electronic Test & Development centre. |
| Supply Scope | 1 unit of TFT Display Diff. Pressure Monitor, 12-24VDC Adapter, Silicon tube,Mounting screws, Instruction manual, Calibration certificate |
| Dimensions | Front SS Plate : 135(W) x 160(H) (Approx., May Change depending on Inputs & Config) Back MS box : 105 (W)x 100 (H)x 40 (D)mm. |
