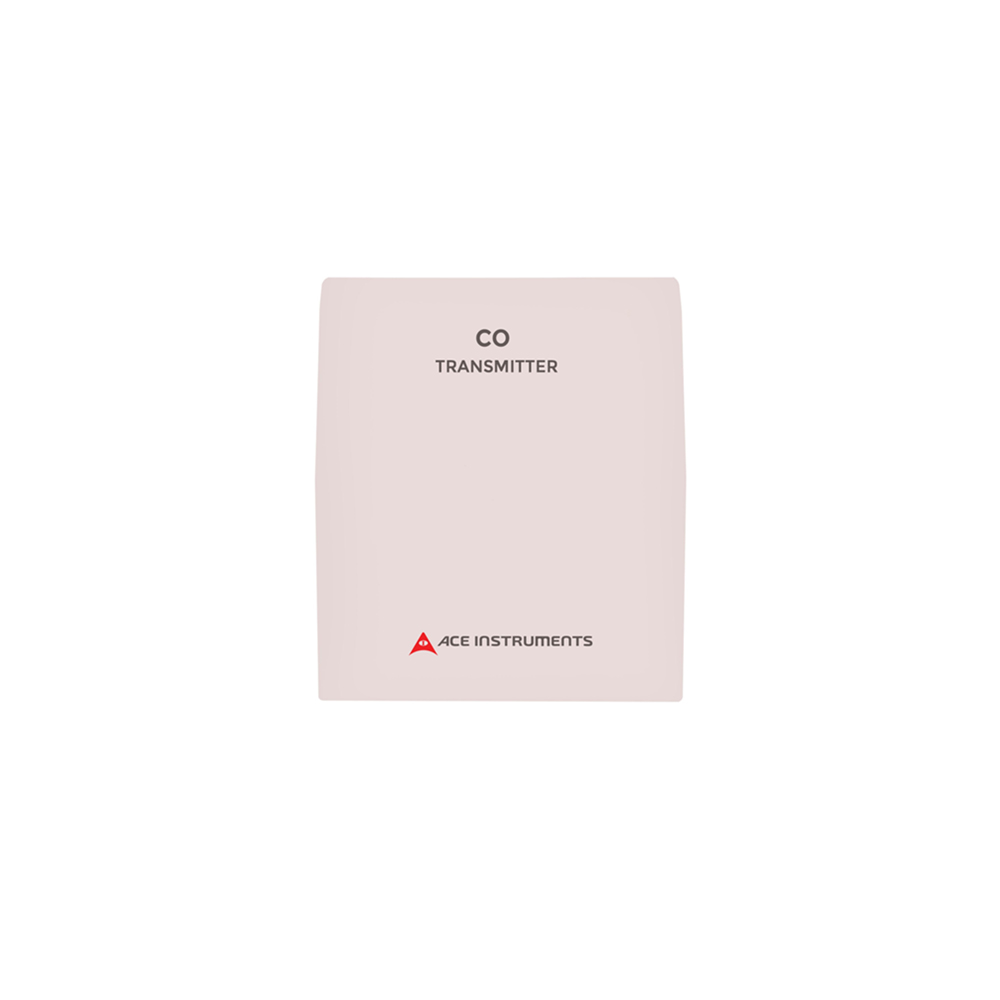

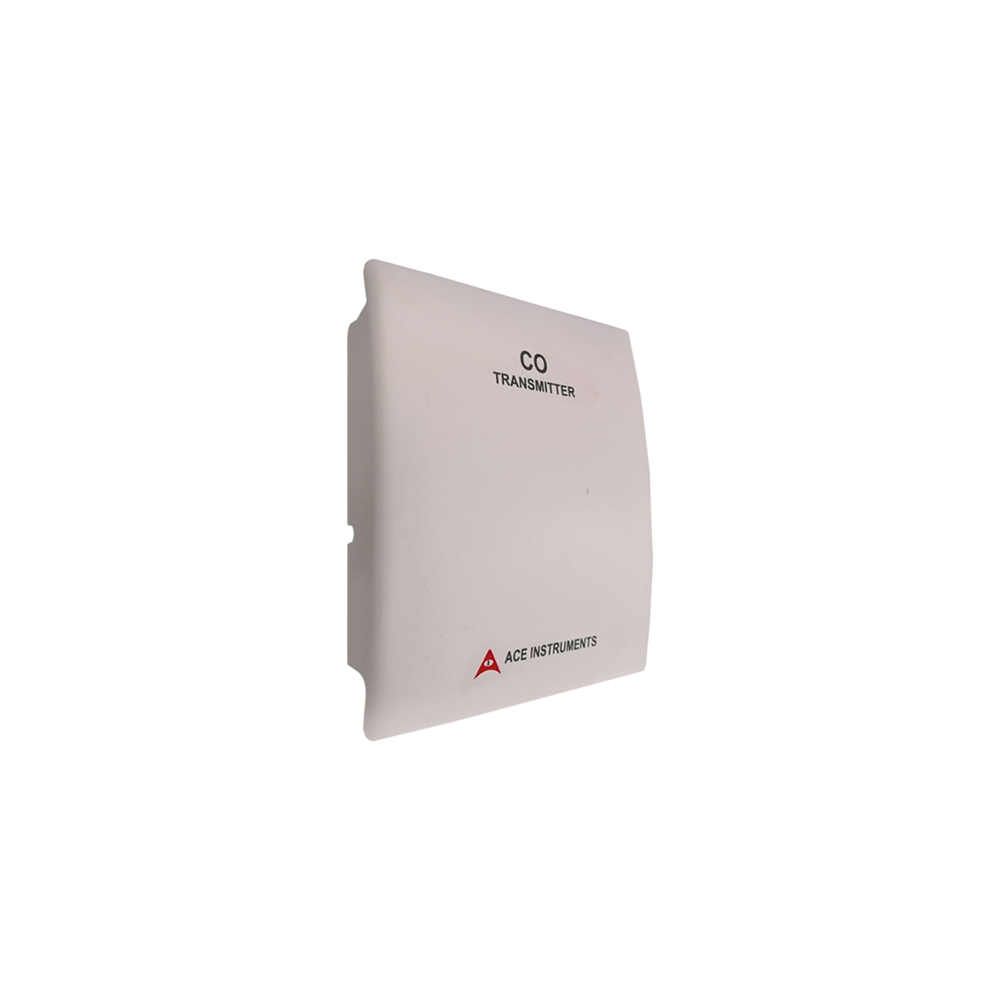

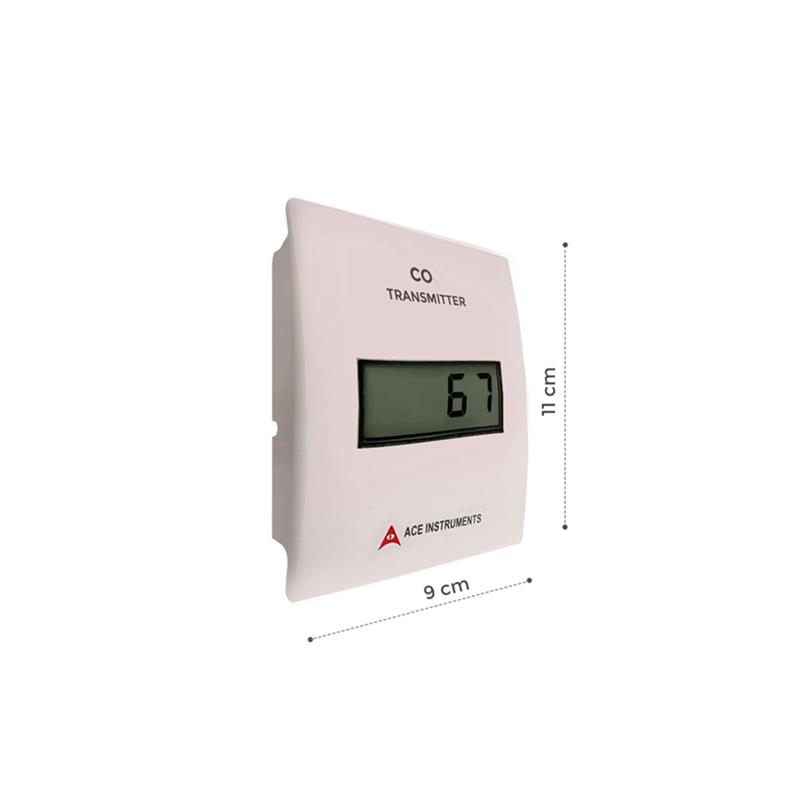

Carbon Monoxide Transmitter AI-CO Series
₹5,586.00 – ₹6,521.00
Carbon Monoxide Transmitter AI-CO Series is a electronic device designed to detect and transmit carbon monoxide (CO) levels in the air. It plays a vital role in ensuring air quality, safety, and operational efficiency across a range of industrial and commercial environments. This Carbon Monoxide Transmitter With a sensor life of up to 15 years, it automatically adjusts for aging effects, maintaining accuracy in both occupied and unoccupied spaces. Ideal for monitoring supply, return, and exhaust air, Ace AI-CO Series is well-suited for critical applications where precise air quality control is essential.

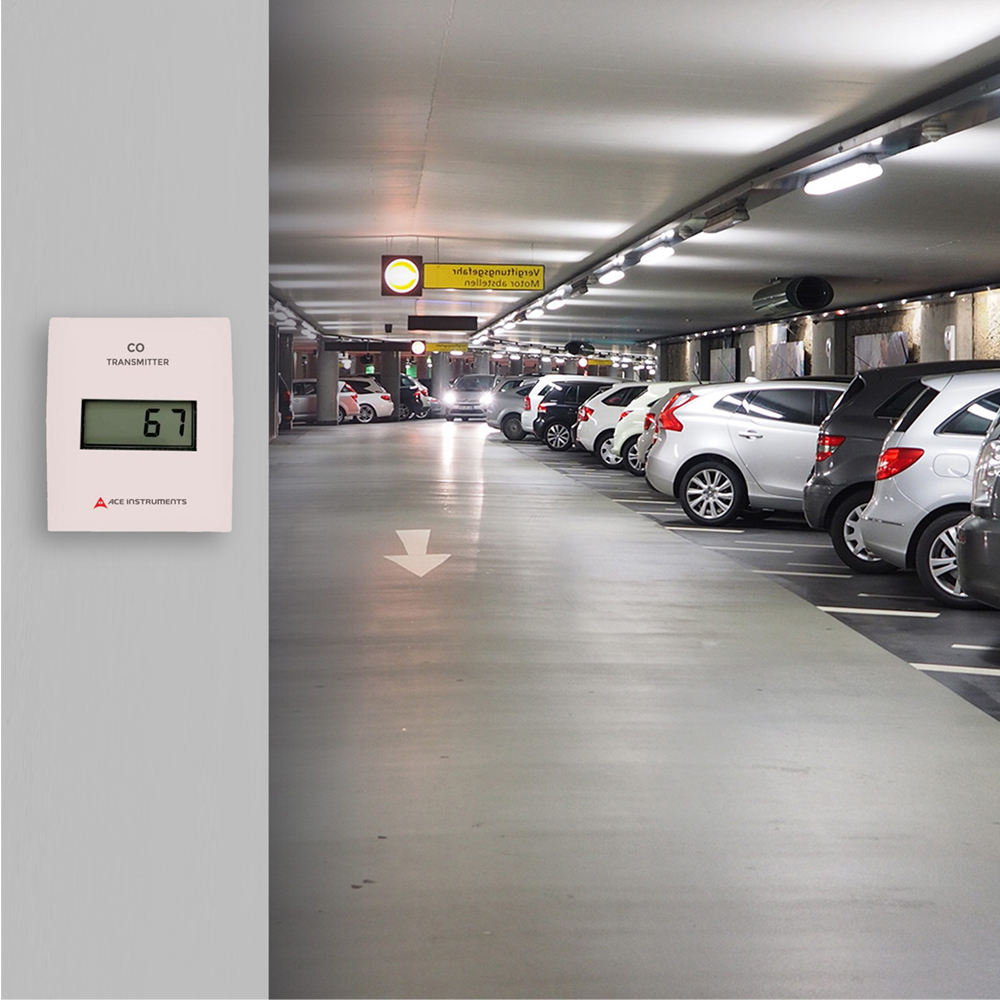

Applications: Mining Industry, HVAC, Steel industries, Parking Lot
Features of Carbon Monoxide Transmitter AI-CO Series :
- Utilizes advanced electrochemical sensors and optimized circuitry for CO level detection
- Supports selectable Analog output 4-20mA/ 0-10V DC
- Standard measurement range of 0–250 PPM (with 0–300 PPM option available)
- Designed for long-term accuracy and dependable performance
- Sensor lifespan exceeds 10 years for extended operational use
- Digital technology applied, over-voltage and reverse polarity protection
- Optional RS-485 Modbus communication for integration with building management systems
- Durable enclosure with a high ingress protection rating of up to IP65

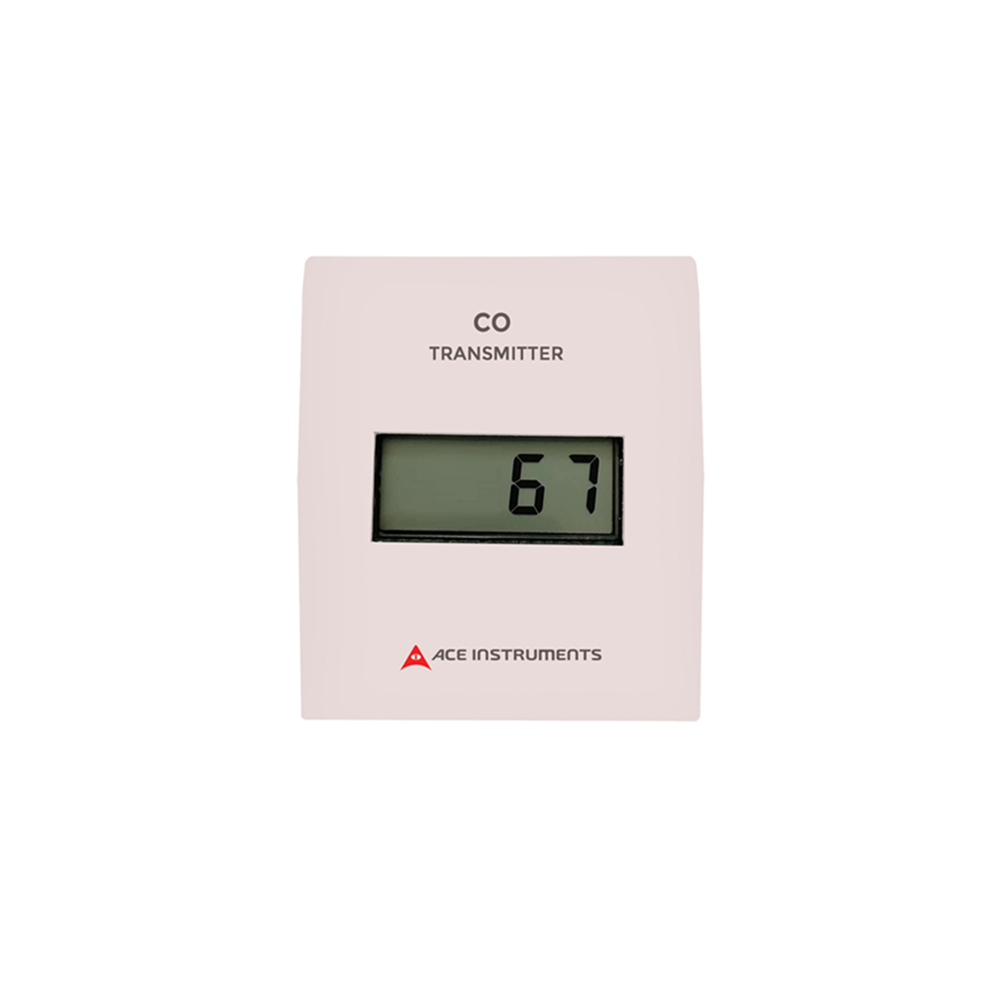

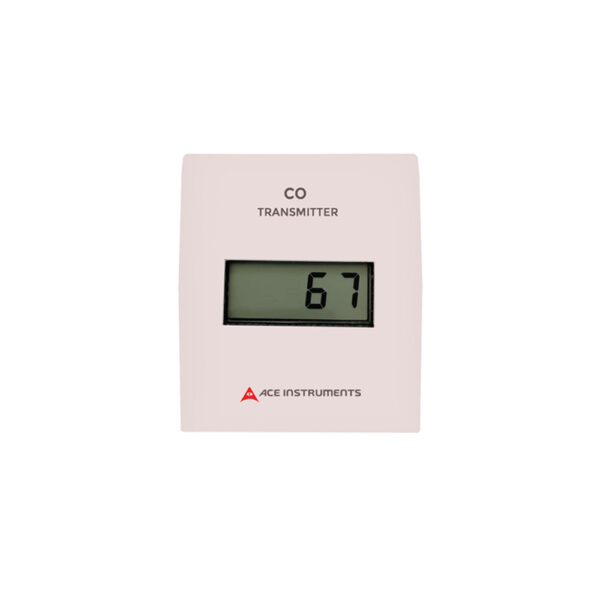

- Offered in both display and non-display models to suit various application needs
Additional information
| Manufacturer | Ace Instruments |
|---|---|
| Model No | AI-CO Series, Select required Model from Dropdown |
| Measuring Parameters | Carbon Monoxide |
| Carbon Monoxide | 0 to 250PPM, 0 to 300PPM |
| Accuracy | +/- 5% for 0 to 100 ppm ; +/- 10% for 100 to 250 ppm |
| Sensor Type | Swiss Sensor |
| Display | With LCD display, Without Display |
| Operating Temperature | -10 to +60 °C |
| Storage Temperature | -40 to 100°C |
| Communication | Isolated RS485 Modbus Protocol Communication |
| Response Time | < 10 Sec |
| Hysteresis | < ± 1 % RH |
| Drift | < ±0.5 % RH/year |
| Output | 0 to 10 VDC / 4 – 20 mA, field selectable |
| Output Load Regulation | > 2K Ω (voltage), 500 Ω (current) |
| Relay/ Alarm | Optional 1 No. Relay Output (NO/CO/NC) rated 2Amps ; |
| Power Supply | 24 VDC, 250 mA |
| Housing Material | ABS Plastic Wall Mounting Type Enclosure |
| Supply Scope | 1 Unit of AI-CO Carbon Monoxide Monitor, Power Adapter, Instruction Manual, and Factory Calibration Certificate |
| Note | For Ordering Information Refer Data Sheet |
| Warranty | 1 Year Manufacturing Warranty |
| Weight | 400 Grams |
DS_Ace-AI-CO-Series-Carbon-Monoxide-Transmitter_Ver1.0.PDF.pdf
