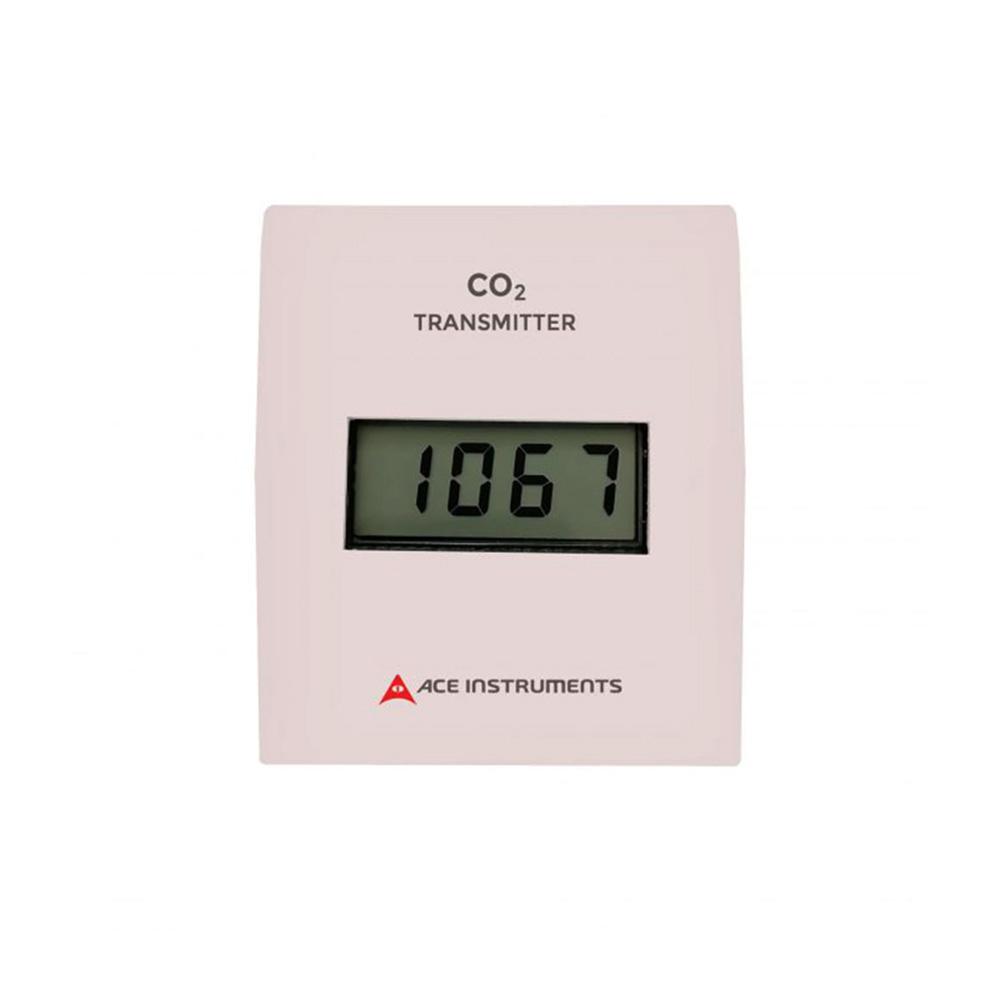

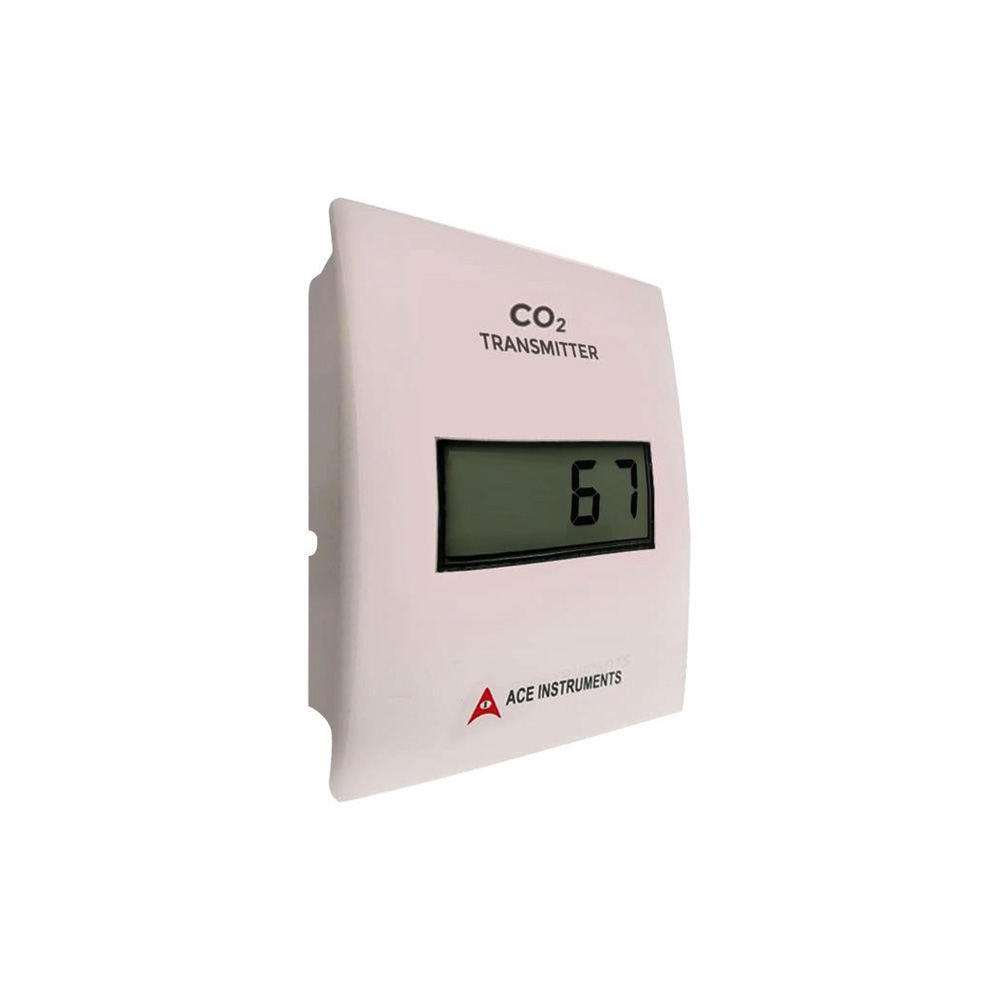

Carbon Dioxide Transmitter AI-CO2 Series
₹5,586.00 – ₹6,521.00
Carbon Dioxide Transmitter AI-CO2 Series is designed for continuous CO₂ level monitoring in indoor spaces, making it a reliable choice for air quality management in commercial buildings, mechanical systems, parking structures, and equipment rooms. It ensures accurate tracking of air supply, exhaust, and return in critical environments. The advanced sensor technology also supports long operational life and stable performance over time.

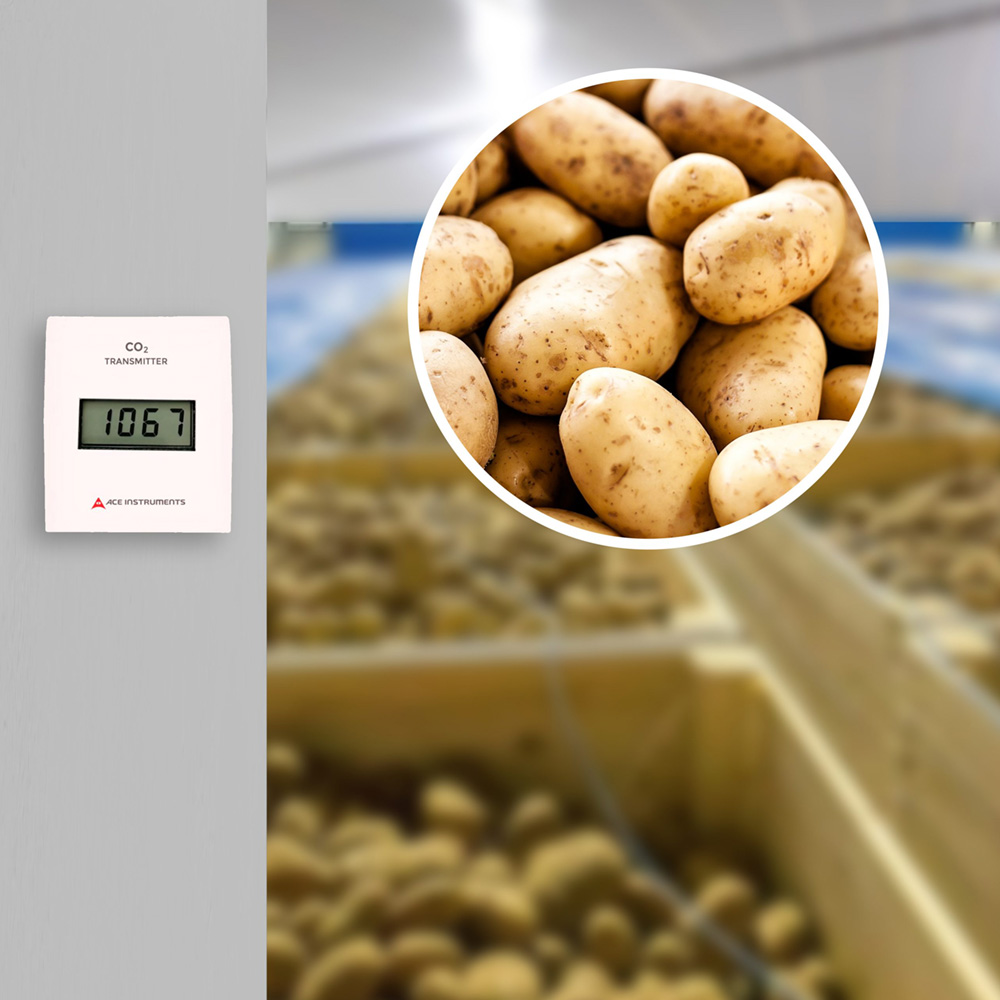

Applications: Mushroom Farms, HVAC, Greenhouse, Landfill gas, Cold Storage, basement, Confined space, Marine vessels, Potato farm, Mining, & gas stores, etc.
Features of Ace AI-CO2 Series Carbon Dioxide Transmitter:
- Utilizes high-accuracy NDIR sensing technology with advanced electronics for reliable CO₂ readings, including built-in temperature compensation.
- Selectable analog outputs: 4-20mA / 0-10V DC , suitable for various control systems.
- Standard detection range of 0–2000 PPM, with an optional extended range up to 5000 PPM.
- Available in models with or without a digital display for flexible installation needs.
- Offers excellent long-term stability and consistent performance over time.
- Digital architecture supports multiple output formats, built-in protections against over-voltage and reverse polarity, and strong immunity to electrical interference.
- Durable design with a high protection rating of up to IP65, suitable for harsh environments.
- Long-lasting sensor with a lifespan of up to 15 years for reduced maintenance.
Additional information
| Manufacturer | Ace Instruments |
|---|---|
| Model No | AI-CO2 |
| Measuring Parameters | Carbon Dioxide |
| Carbon Dioxide | 0 to 2000 ppm, 0 to 5000 ppm |
| Accuracy | ± 3% on full scale |
| Sensor Type | Swiss Sensor |
| Display | With LCD display, Without Display |
| Operating Temperature | -10 to +60 °C |
| Storage Temperature | -40 to 100°C |
| Communication | Isolated RS485 Modbus Protocol Communication |
| Response Time | < 10 Sec |
| Hysteresis | < ± 1 % RH |
| Drift | < ±0.5 % RH/year |
| Output | 0 to 10 VDC / 4 – 20 mA, fields selectable |
| Power Supply | 12VDC to 24VDC, by the way of 110 VAC to 230 VAC, 50Hz to 60Hz Adaptor provided along with (fits well in Us and Europeans countries) |
| Housing Material | Fireproof ABS Enclosure |
| Supply Scope | 1 Unit of CO2 Transmitter, Instruction Manual, and Factory Calibration Certificate |
| Output Load Regulation | > 2K Ω (voltage), 500 Ω (current) |
| Relay/ Alarm | 1000 ppm activation, 900 ppm deactivation, Preset SPST NO Relay |
| Warranty | 1 Year Manufacturing Warranty |
| Weight | 400 Grams |
