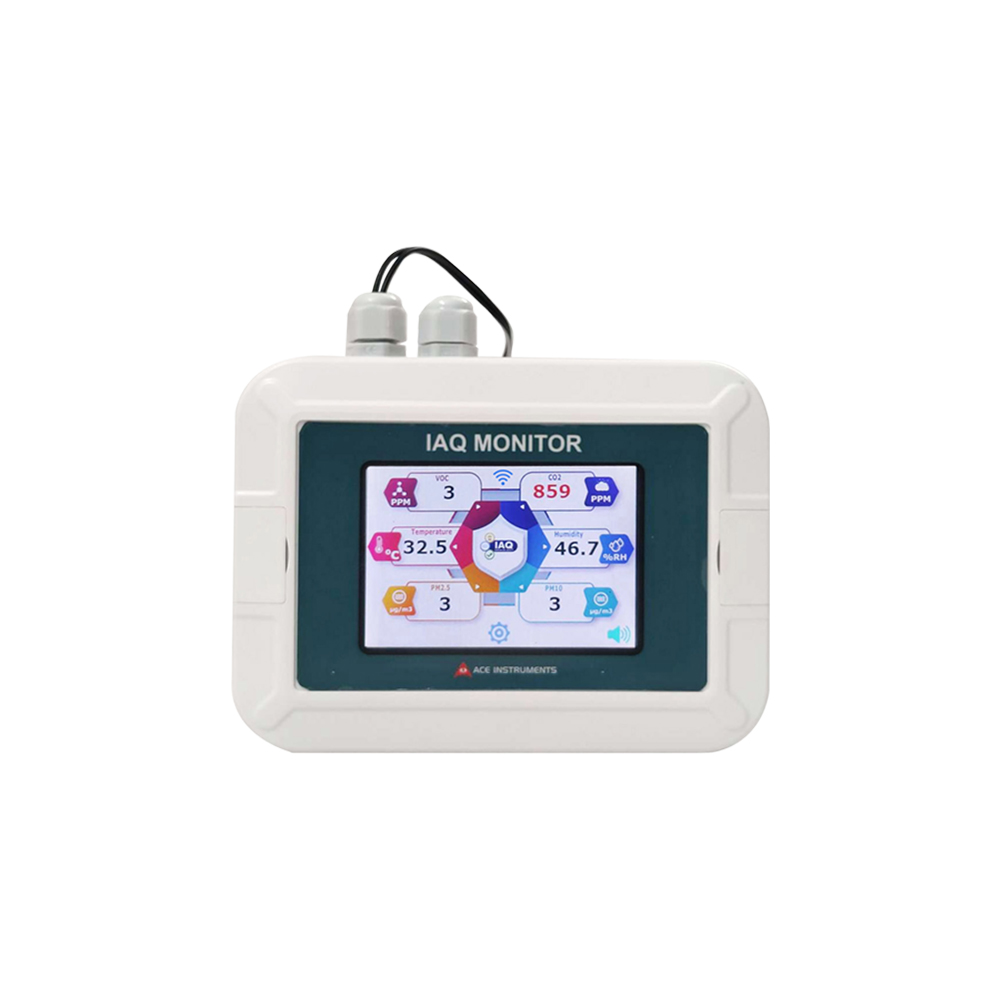

Advanced IAQ Monitor with Touchscreen AI-IAQ6-PH
₹25,899.50

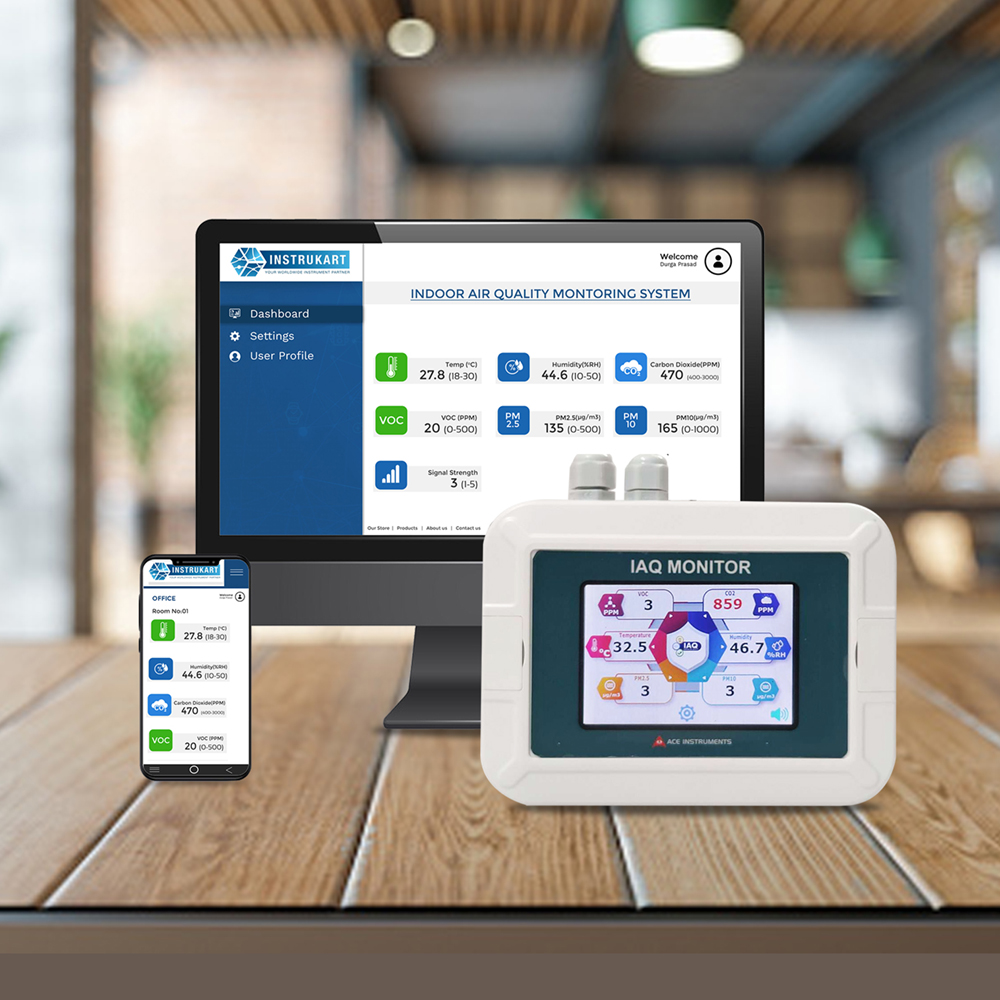

Advanced IAQ Monitor with Touchscreen AI-IAQ6-PH is designed to measure six critical environmental parameters, such as PM2.5, PM10, CO₂, VOCs, Temperature, and Humidity in real time, making it ideal for controlled spaces. This Real-Time IAQ Dashboard Monitor connects with BMS, SCADA,or PLC systems using RS-485 Modbus, via Wi-Fi or RS-485 Modbus. This IAQ Wi-Fi Air Monitor also features a built-in audio buzzer that alerts users when any of the 6 parameters exceed set limits, and the buzzer can be turned off through the settings if needed.
Applications: Hospitals and Medical facilities, Industrial Buildings, Schools and Colleges, Shopping Malls, Office buildings, Hotels and Restaurants.
Features Of Ace Smart Indoor Air Quality Monitor:
● This comes with a 3″ touch screen display.
● This Indoor Air Quality Meter can be easily wall-mounted with little need for changes to the structure.

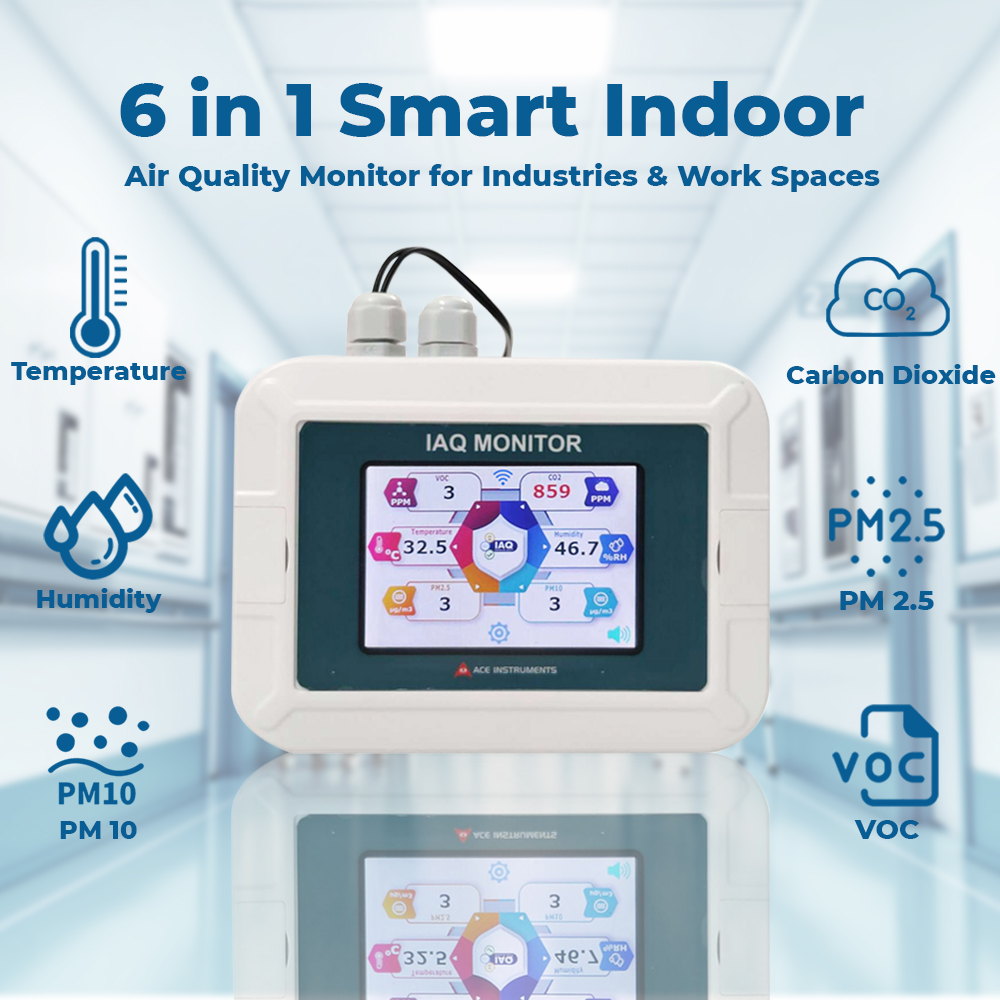

● This monitors 6 parameters for complete indoor air quality, along with the date and time.

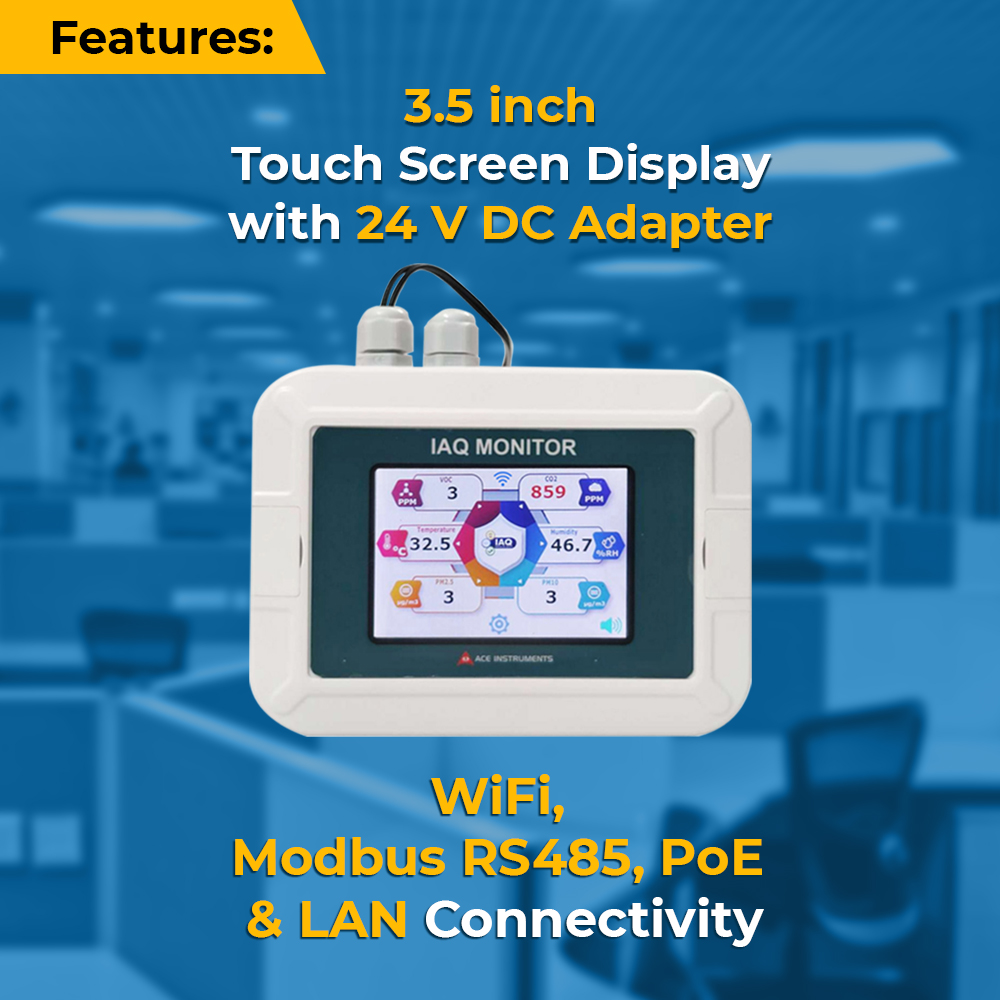

● This connects using RS485 Modbus, WiFi, or a LAN network with an RJ45 output
Additional information
| Manufacturer | Ace Instruments |
|---|---|
| Model No | AI-IAQ6-PH |
| Display | 3” Touch Screen Full Colour TFT Display |
| Measuring Parameters | 6 parameters for full IAQ Suite along with Date & Time |
| PM 2.5 Range | 0 to 1000 µg/m3 |
| PM 2.5 Accuracy | ±15 µg/m3 (when concentration is ≤ 100µg/m3), ±15% (when concentration is > 100µg/m3 ) |
| PM 10 Range | PM 10 Range |
| Temperature Accuracy | ±0.5°(0-65°) |
| Temperature Range | 0 to 50°C |
| Humidity Range | 0 to 100%RH |
| Humidity Accuracy | ±3%RH |
| CO2 Range | 0 to 5000 ppm |
| CO2 Accuracy | ± 50ppm (or) +5% of reading value |
| VOC Measuring Range | 0 to 500 PPM |
| VOC Accuracy | ±30PPM |
| Communication | Using RS485 Modbus communication /Wi-Fi communication or *LAN network using RJ 45 Output. |

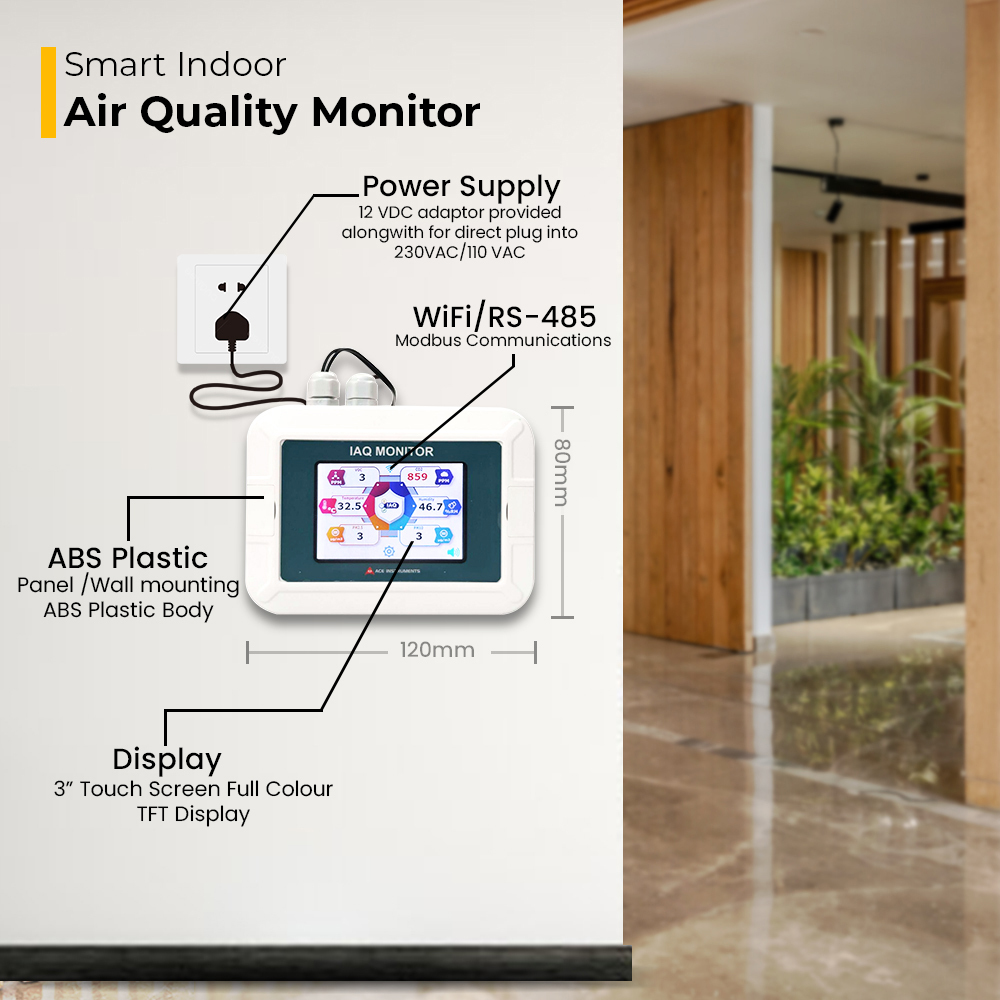

| Enclosure | Panel /Wall mounting ABS Plastic Body |

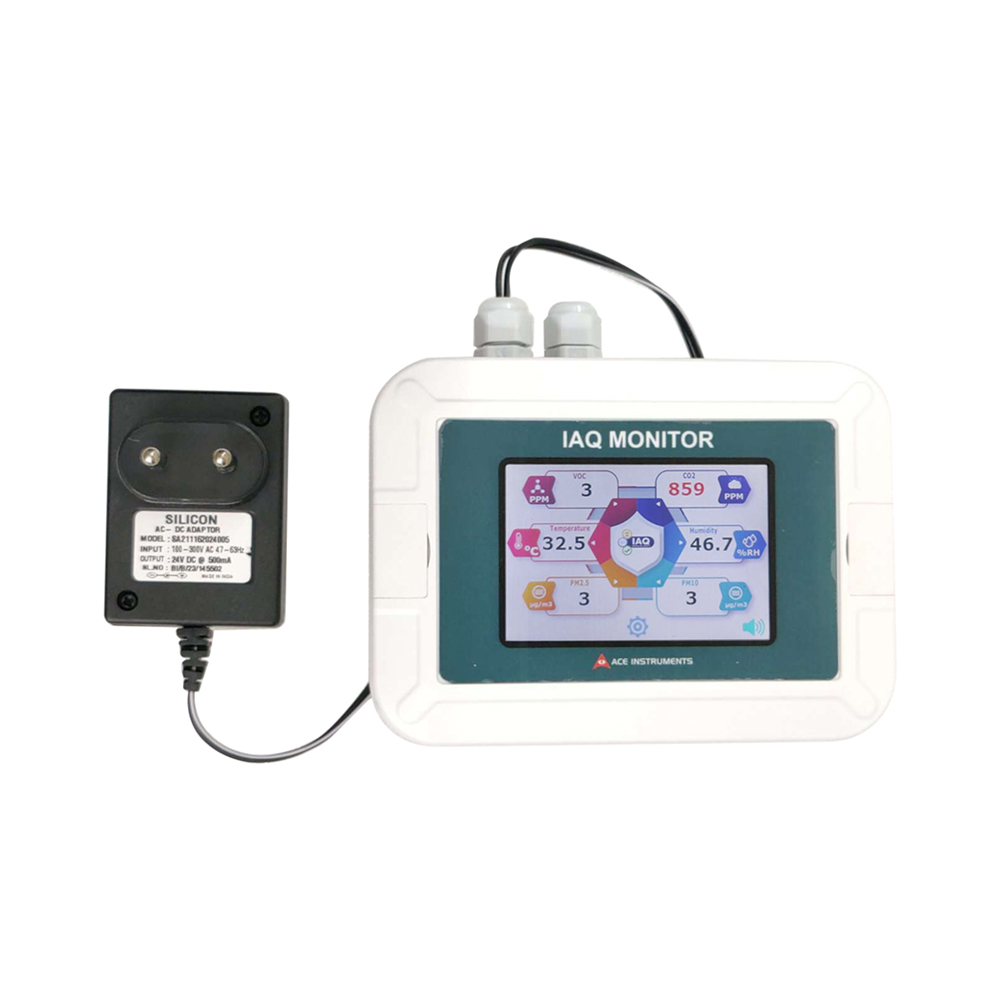

| Power Supply | 12-24VDC, by the way of 110-230 VAC, 50-60Hz Adaptor provided along with (Fits well in USA and European countries) |
| Dimensions | 120(W) x80(H) x 55(D)mm. |
| Weight | 500g |
